BROCE FMJ470
HYDRAULIC SYSTEM DETAILS

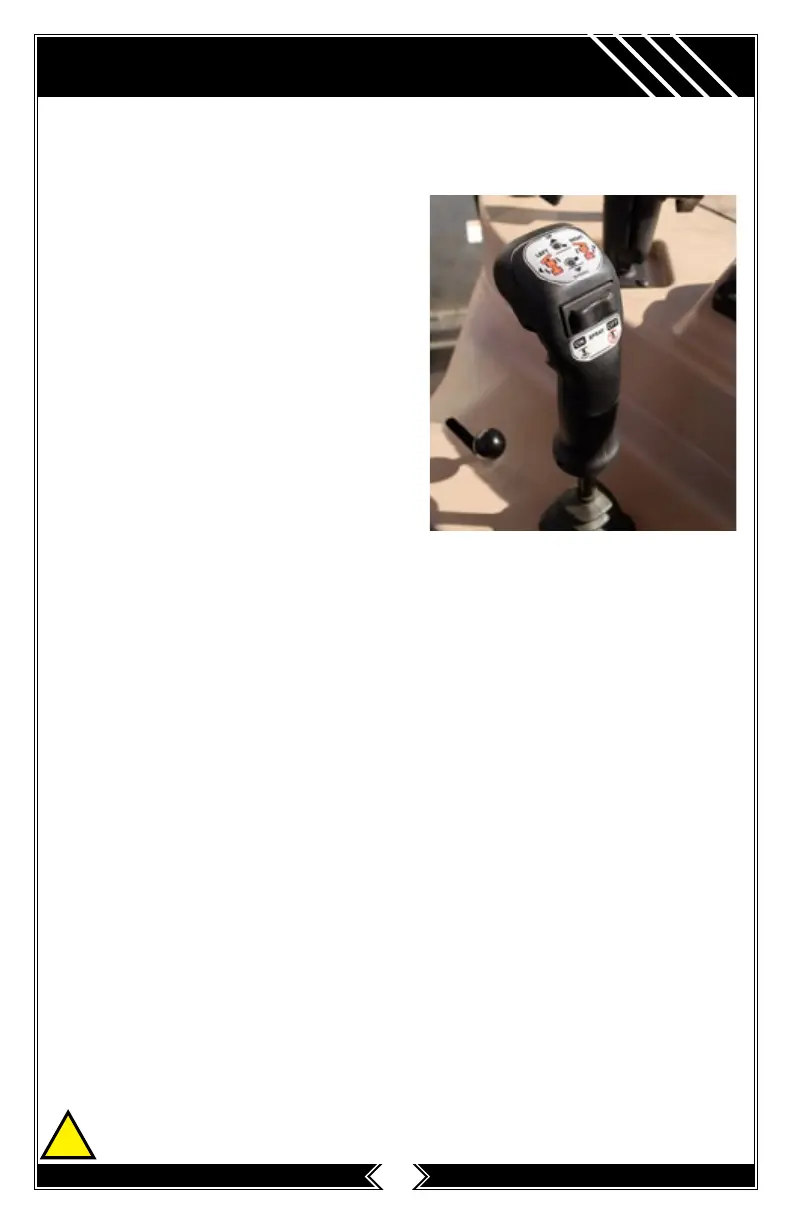

Brush Functions:
Forward movement of the joystick lever will
lower the core. Pulling the lever back will
raise the core.
Movement to the right will angle the core
to the right, and movement to the left will
angle the core to the left.
Brush Rotation:
The Broom Switch must rst be turned on.
The Broom Control Dial can be adjusted
to rotate the broom in either the forward or
reverse directions.
Placement of the dial will also determine
speed of the broom rotation.
Side Shift Function:
Actuation of the side shift joystick will move the broom from left to right.
