BROCE FMJ470
• Install the end cap using two (2) 1/2” x 3” all thread bolts in two of the holes which are
180 apart. Slowly and evenly tighten these until the end cap is close enough to the core to
install the standard mounting bolts. Start two of the standard bolts with lock washers in the
two remaining holes. Remove the two long bolts and install the other two standard mounting
bolts. Tighten all four bolts evenly in a diagonal fashion until the end cap is tightly secured to
the core.
• The core must now be tipped over onto the ground so that the core comes to rest laterally
on the bristles. Clear an area fteen feet in all directions of the core of personnel and property
before tipping the core. Always tip the core by pushing it over. Once the core begins to fall,
get away from it in case the stand falls o. Carelessness in this procedure could result in seri-
ous bodily injury and/or property damage.
• With the core resting on the ground, slide the stand o of the spindle and tighten the end
cap in the same fashion as before.
• Using emery cloth or sandpaper, clean both spindles to remove any burs or tar which may
interfere with sprocket or bearing installation.
• Install the sprocket as using the at washers as spacers. The sprocket must be installed in
this manner in order to ensure proper chain alignment.
• Slide the rebuilt core back under the sweeper.
• Slide the pillow block bearings on the spindles until they roughly line up with the core sup-
port frame. With the at part of the bearing up, slowly lower the core support frame until it is
close enough to line up and secure the bearings with the original mounting bolts. When the
bearings are secure, raise the core, and align the chain drive. Once the chain drive alignment
has been achieved, recheck the lock rings to ensure that they are secure and reinstall the
chain guard.
If you have any questions regarding
these procedures or would like to obtain
the core service ring and stand, please
contact your nearest dealer or call us
direct at (620) 227-8811.

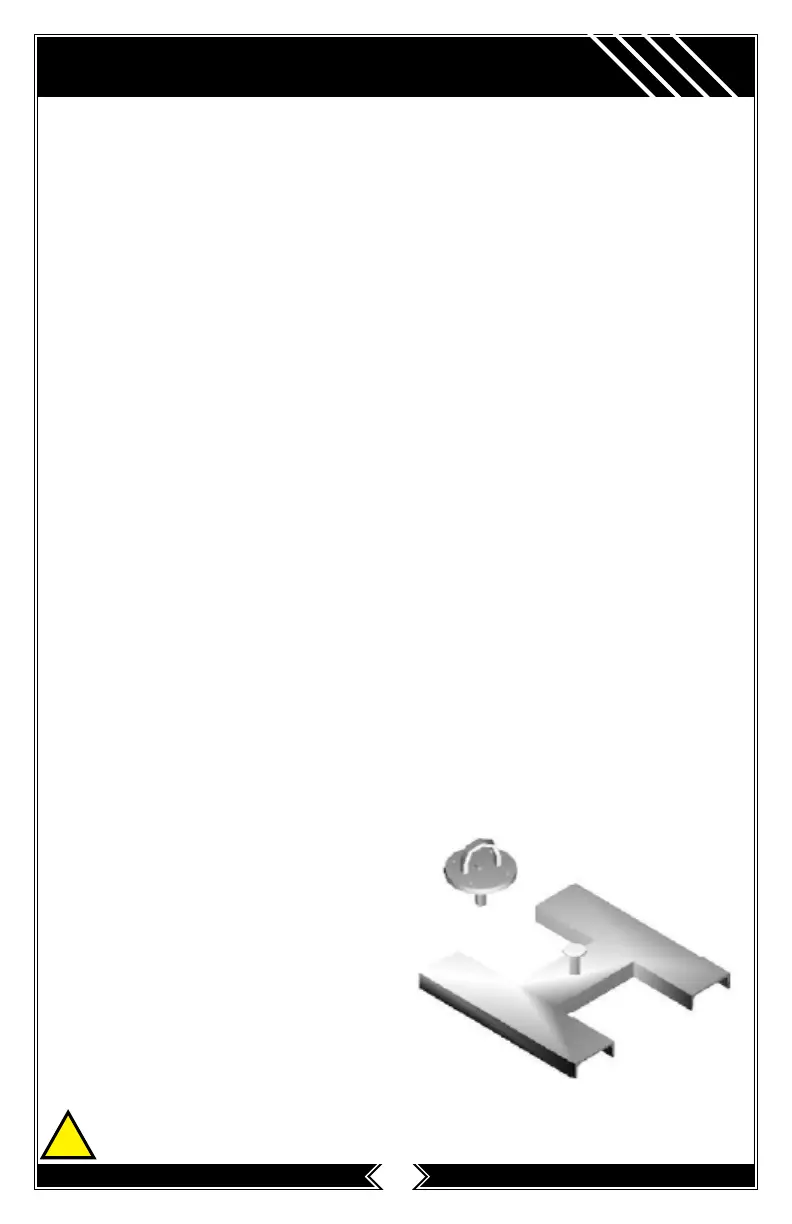

Core Service Ring and Stand
O
MAINTENANCE
BROOM WAFER REPLACEMENT (cont.)
