Brock CCC-A - Page 36

17

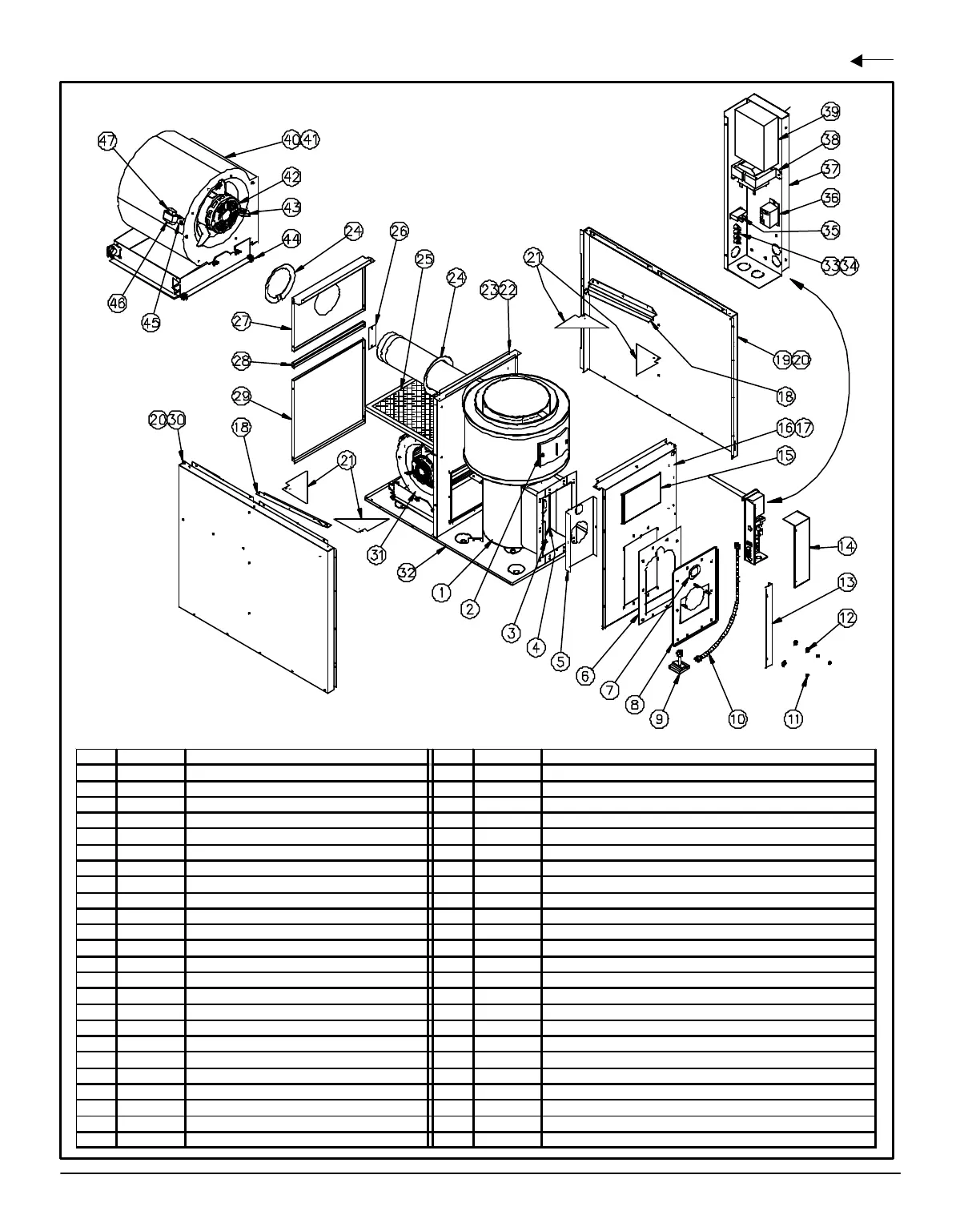

PARTS LIST
Model : MBP1-A
B50027 Rev.A
ITEM
PART #
DESCRIPTION
ITEM
PART #
DESCRIPTION
1
B10344
HEAT EXCHANGER ASSEMBLY
24
B10016-03
FLUE PIPE COLLAR
2
B10337
COVER ASSEMBLY
25
Z04F004-1
PAPER FILTER 20X20X1
3
B10019-01
COMBUSTION CHAMBER SUPPORT
26
B10254
BAFFLE
4A
B10042-01
COMBUSTION CHAMBER
27
B10126-02
REAR TOP PANEL
4B
B10041
COMBUSTION CHAMBER INSULATION
28
B10242
FILTER DRAWER ASSEMBLY
5
B10147
INTERIOR BURNER PANEL ASSEMBLY
29
B10338
BLOWER DOOR ASSEMBLY
6
B10145
BURNER PANEL GASKET
30
B10218-02
LEFT SIDE PANEL ASSEMBLY
7
B00403
OBSERVATION DOOR
31
B01404-03
BLOWER ASSEMBLY (MOTOR & CAPACITOR INCLUDED)
8
B10180
BURNER PANEL ASSEMBLY
32
B10184-01
FLOOR ASSEMBLY
9
Z06G001
BLOCKED VENT SHUT OFF BVSO
33
L05F009
TERMINAL STRIP 4 POSITIONS
10
B03118-01
ELECTRICAL KIT EXT. BVSO
34
L05F007
RETAINING CLIP
11
F07F011
HEX NUT 3/8-16NC ZINC
35
L07F003
ROCKER SWITCH SPST
12
F06F006
WASHER 3/8 BOLT ZINC
36
L01H009
RELAY, 24 VAC SPDT
13
B10398
CORNER CONDUIT
37
B10392
ELECTRICAL BOX
14
B10393
JUNCTION BOX COVER
38
L01F009
TRANSFORMER 120-24 Volts, 40 VA
15 B10243-01 CLEANOUT DOOR ASSEMBLY 39 R02I002 FAN LIMIT 11 1/2'' HON L6064A
16
B10412-04
FRONT PANEL ASSEMBLY
40
Z01I001
BLOWER 10-10DD (HOUSING AND WHEEL INCLUDED)
17
B10124-02
FRONT PANEL INSULATION
41
Z01L004
BLOWER WHEEL 10-10DD
18
B10139
FILTER SUPPORT
42
B01890
MOTOR 1/3 HP DD 4SP
19
B10218-03
RIGHT SIDE PANEL ASSEMBLY
43
B01888
BELLY BAND ASSEMBLY (BAND AND 3 LEGS INCLUDED)
20
B10050-18
SIDE PANEL INSULATION (LEFT OR RIGHT)
44
B10409
BLOWER SUPPORT
21
B10037-04
CORNER BAFFLE
45
B01024
CAPACITOR BRACKET
22 B10247 DIVIDER ASSEMBLY 46 L01I001 CAPACITOR 5 MF
23
B10183
DIVIDER INSULATION
47
L99Z007
RUBBER CAP OVAL
