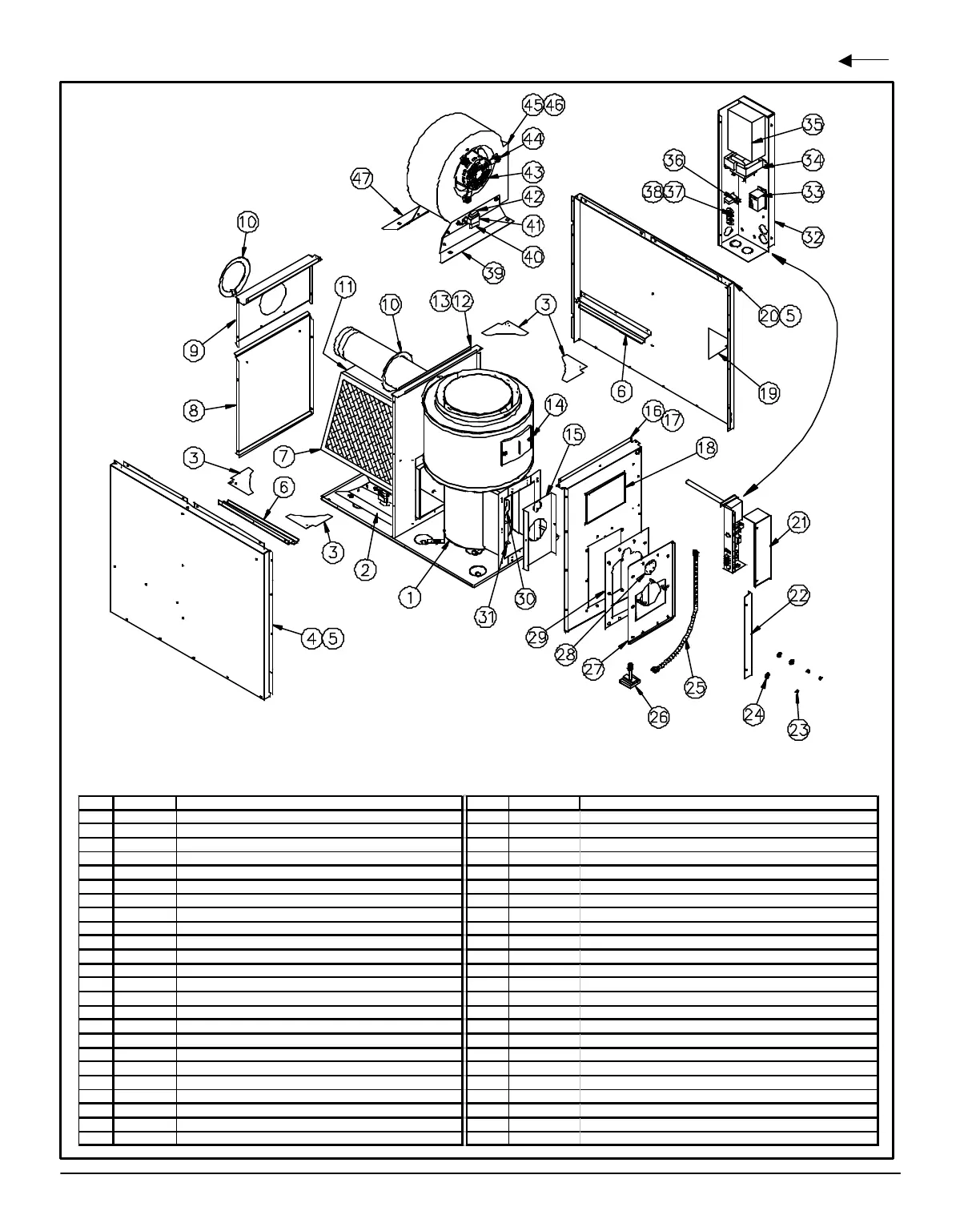

PARTS LIST
Model : MBP2-A
ITEM
PART #
DESCRIPTION
ITEM
PART #
DESCRIPTION
1
B10346
HEAT EXCHANGER ASSEMBLY
25
B03118-02
ELECTRICAL KIT EXT. BVSO
2
B10413
BLOWER ASSEMBLY (MOTOR & CAPACITOR INCLUDED)
26
Z06G001
BLOCKED VENT SHUT OFF BVSO
3
B10037-03
CORNER BAFFLE
27
B10180
BURNER PANEL ASSEMBLY
4
B10332-02
LEFT SIDE PANEL ASSEMBLY
28
B00403
OBSERVATION DOOR
5
B10050-18
SIDE PANEL INSULATION (LEFT OR RIGHT)
29
B10145
BURNER PANEL GASKET
6
B10265
FILTER SUPPORT
30A
B10042-01
COMBUSTION CHAMBER
7
Z04F006
PAPER FILTER 20X20X1
30B
B10041
COMBUSTION CHAMBER INSULATION
8
B10257
BLOWER DOOR ASSEMBLY
31
B10019-01
COMBUSTION CHAMBER SUPPORT
9
B10214
REAR TOP PANEL
32
B10394
ELECTRICAL BOX
10
B10016-03
FLUE PIPE COLLAR
33
L01H009
RELAY, 24 VAC SPDT
11
B10215
TOP FILTER SUPPORT
34
L01F009
TRANSFORMER 120-24 Volts, 40 VA
12
B10255
DIVIDER ASSEMBLY
35
R02I002
FAN LIMIT 11 1/2'' HON L6064A
13
B10352
DIVIDER INSULATION
36
L07F003
ROCKER SWITCH SPST
14
B10337
COVER ASSEMBLY
37
L05F009
TERMINAL STRIP 4 POSITIONS
15
B10147
INTERIOR BURNER PANEL
38
L05F007
RETAINING CLIP
16
B10412-02
FRONT PANEL ASSEMBLY
39
B10258-02
LEFT BLOWER LEG
17
B10124-02
FRONT PANEL INSULATION
40
L01I005
CAPACITOR 15 MF
18
B10243-01
CLEANOUT DOOR ASSEMBLY
41
B01024
CAPACITOR BRACKET
19
B10037-02
CORNER BAFFLE
42
L99Z007
RUBBER CAP OVAL
20
B10332-03
RIGHT SIDE PANEL ASSEMBLY
43
L06I004
MOTOR 3/4 HP DD 4SP
21
B10393
JUNCTION BOX COVER
44
B01889
BELLY BAND ASSEMBLY (BAND AND 3 LEGS INCLUDED)
22
B10398
CORNER CONDUIT
45
Z01I003
BLOWER 12-7DD (HOUSING AND WHEEL INCLUDED)
23
F07F011
HEX NUT 3/8-16NC ZINC
46
Z01L005
BLOWER WHEEL 12-7DD
24
F06F005
WASHER 3/8 BOLT ZINC
47
B10258-01
RIGHT BLOWER LEG
