ATER INSTALLATION CONTINUED...

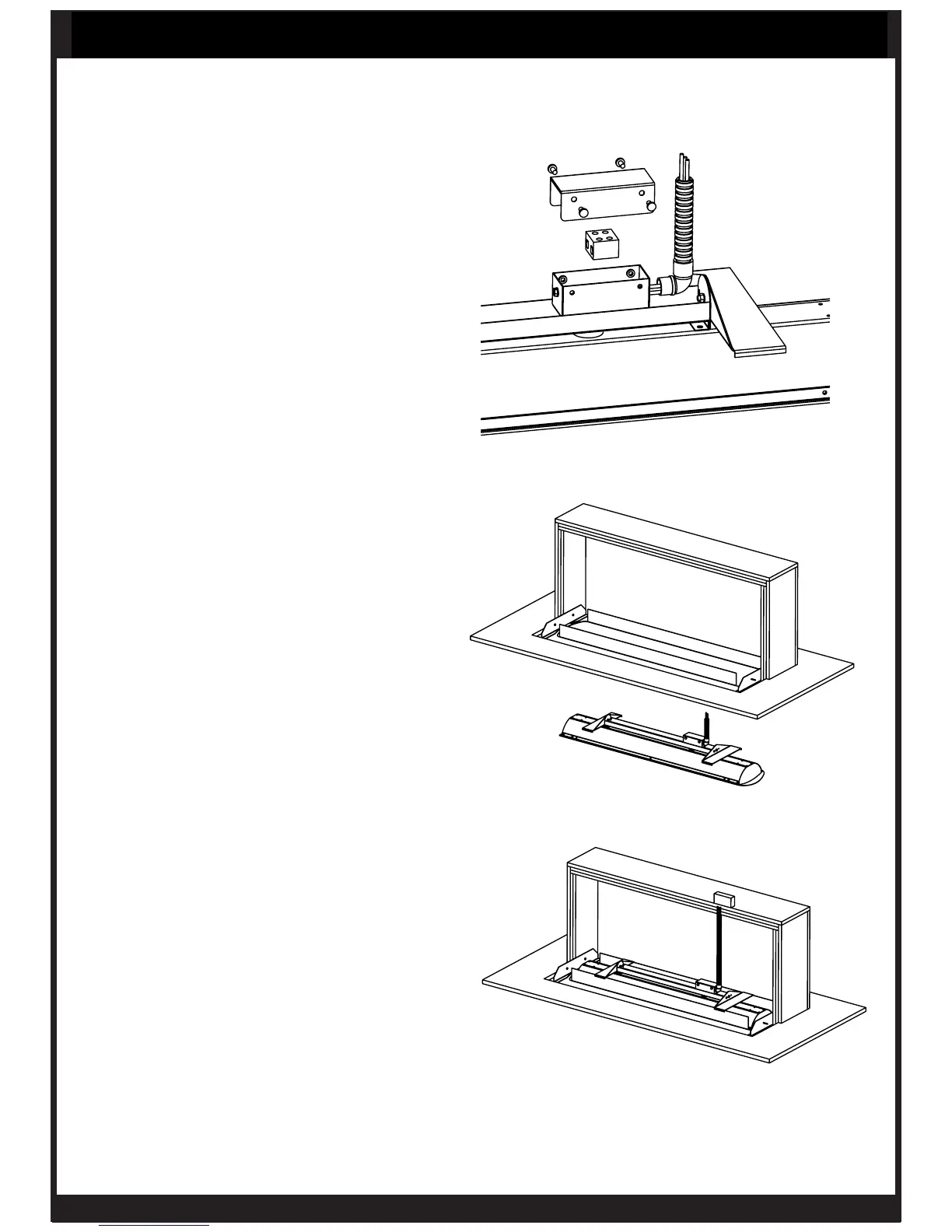

7. Raise one side of heater up into the ceiling box & then
raise whole heater into cavity.
5. Assemble supplied terminal blocks, wire, conduit &
junction box cover.
The Ceiling Recess Kit is supplied with 5 wires & 2 terminal
blocks. Not all parts are required for all installations.
See wiring diagrams for installation options.
For double element heater models the elements can be
wired to be turned on independently or together.
8. Rotate the heater into horizontal position in the ceiling
box & then lower down onto the ceiling frame.
9. Ensure all four side mounting brackets are hooked over
the ceiling frame & centre the heater inside the frame.
10. Make electrical connection from heater to power supply
as per electrical installation instructions in this manual.
Connection to be made outside the ceiling box on the side
or top of the ceiling box.
