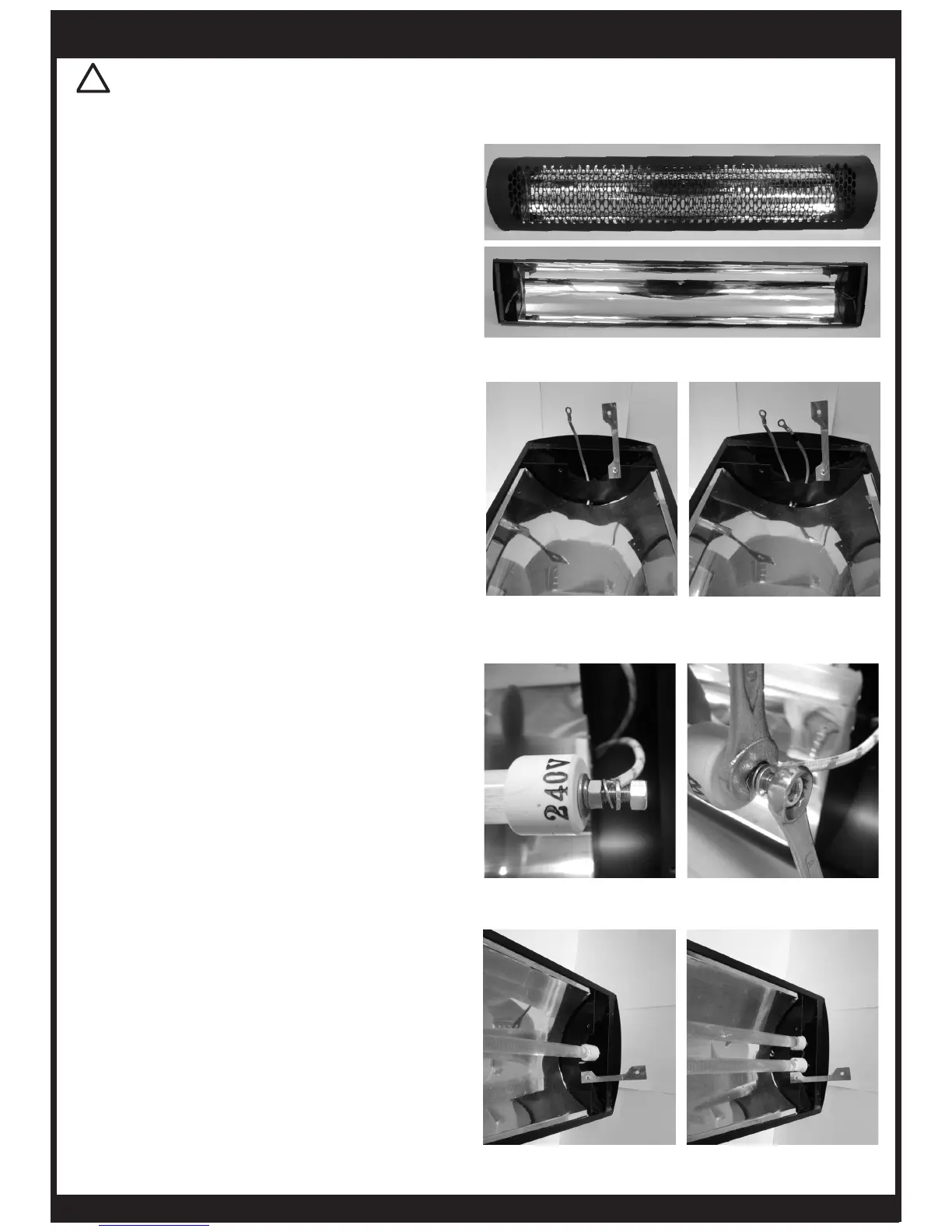

ELEMENT INSTALLATION
1. Remove the front cover from the heater.
2. Check that ring terminals are crimped securely to
cables. 2000W & 3000W models have one cable at each
end for assembly of one element. 4000W & 6000W
models have two cables at each end for assembly of
two elements. The first element must be connected to
the cables marked L1 & N1. The second element must
be connected to the cable marked L2 & N2.
3. Fasten elements to cables. Remove outer nut & lock
washer from the threaded stud on the element.
Assemble ring terminal to the threaded stud & secure
with outer nut and lock washer. Use one spanner to
hold the inner nut on the element, while fastening the
outer nut with a second spanner. Repeat for other end
of element.
4. Put elements in the support bracket. For 2000W &
3000W models put element in the centre position. For
4000W & 6000W models put elements in the outside
positions.
WARNING
This Heater MUST be permanently Installed and hard wired by
an authorised/licenced person. Do Not perform maintenance,
or carry out installation or assembly procedure while electrical
power is switched on.
2000W & 3000W Models 4000W & 6000W Models
2000W & 3000W Models 4000W & 6000W Models
