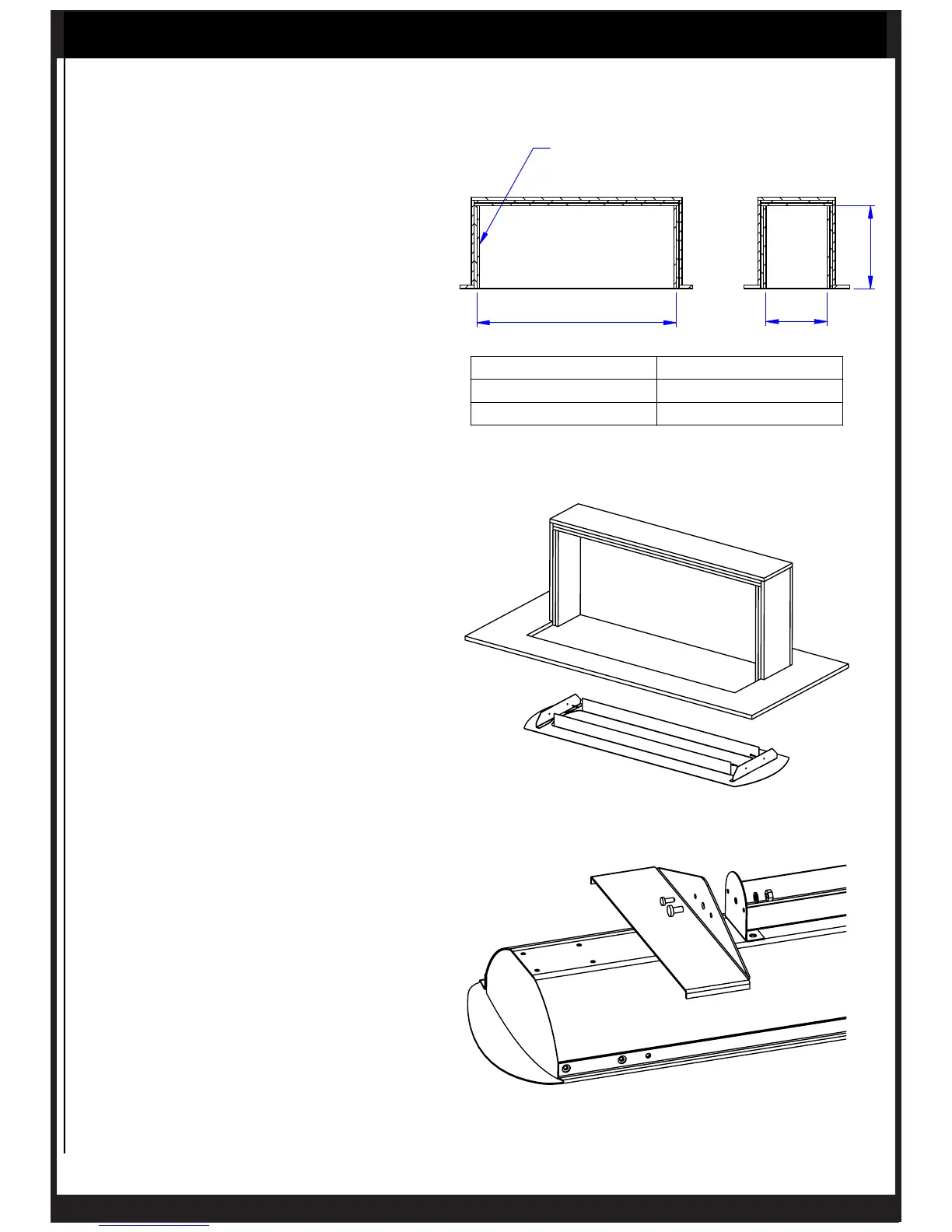

CEILING RECESS KIT (SOLD SEPARATELY)
1. Prepare ceiling cut out & ceiling box.
Minimum ceiling box dimensions must be as shown in
table. Heater must be installed with heater surface at
least 2400mm above the oor level.
HEATER INSTALLATION CONTINUED...
2. From below, bring ceiling frame up and into ceiling cut out.
3. Fasten ceiling frame to ceiling box through mounting
holes with fasteners (not supplied).
4. Prepare heater for installation.
Attach mounting brackets to both ends of heater with
supplied fasteners.
20”
14.5”
A
2 LAYERS OF 5/8” FIREPROOF
INSULATION MUST BE INSTALLED ON ALL
SURFACES OF CEILING BOX
MODEL
DIMENSION "A"
2000W & 4000W
46”
3000W & 6000W
57.5”
To Next Page
