Bromic Heating Tungsten 2000w - Wiring Diagrams

14
www.bromicheating.com
Junction Box
AC
Heater Element 1
240 V AC
SINGLE PHASE
EARTH
WIRE
WARNING
240 V AC Single Phase
Heater must be permanently
installed and hard wired by an
authorised/licenced person.
WARNING
240 V AC Single Phase
Heater must be permanently
installed and hard wired by an
authorised/licenced person.
WARNING
240 V AC Single Phase
Heater must be permanently
installed and hard wired by an
authorised/licenced person.
Junction Box
AC
Heater Element 1
240 V AC
SINGLE PHASE
EARTH
WIRE
Heater Element 2

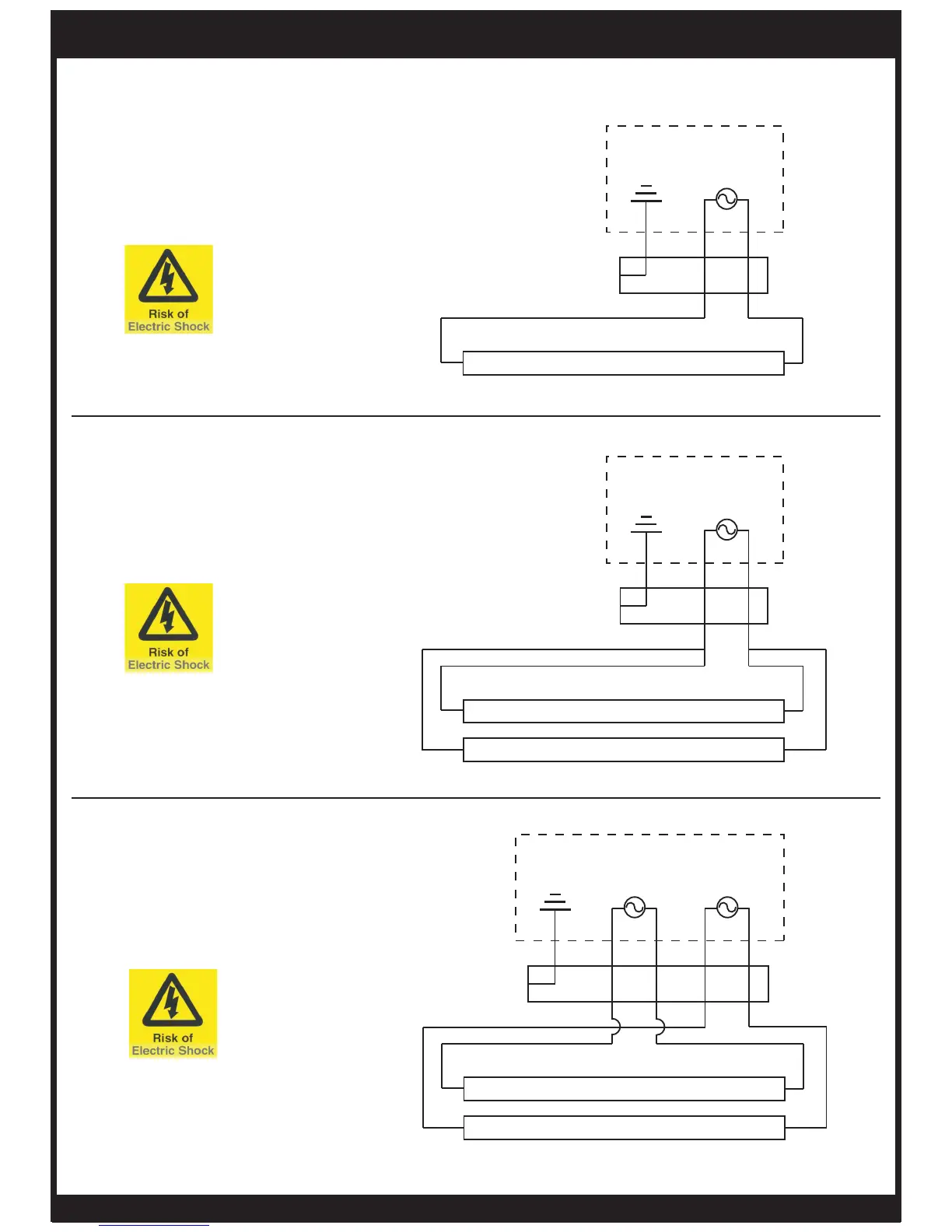

WIRING DIAGRAM
TUNGSTEN SMART-HEAT ELECTRIC
OPTIONAL INSTALLATION
4000W & 6000W MODELS
Junction Box
AC
Heater Element 1
240 V AC
SINGLE PHASE
AC
240 V AC
SINGLE PHASE
EARTH
WIRE
Heater Element 2
WIRING DIAGRAM
TUNGSTEN SMART-HEAT ELECTRIC
STANDARD INSTALLATION
4000W & 6000W MODELS
WIRING DIAGRAM
TUNGSTEN SMART-HEAT ELECTRIC
STANDARD INSTALLATION
2000W & 3000W MODELS
www.bromicheating.com
ELECTRIC AL INSTALLATION CONTINUED...
