BRONKHORST
®
page 24 9.17.022

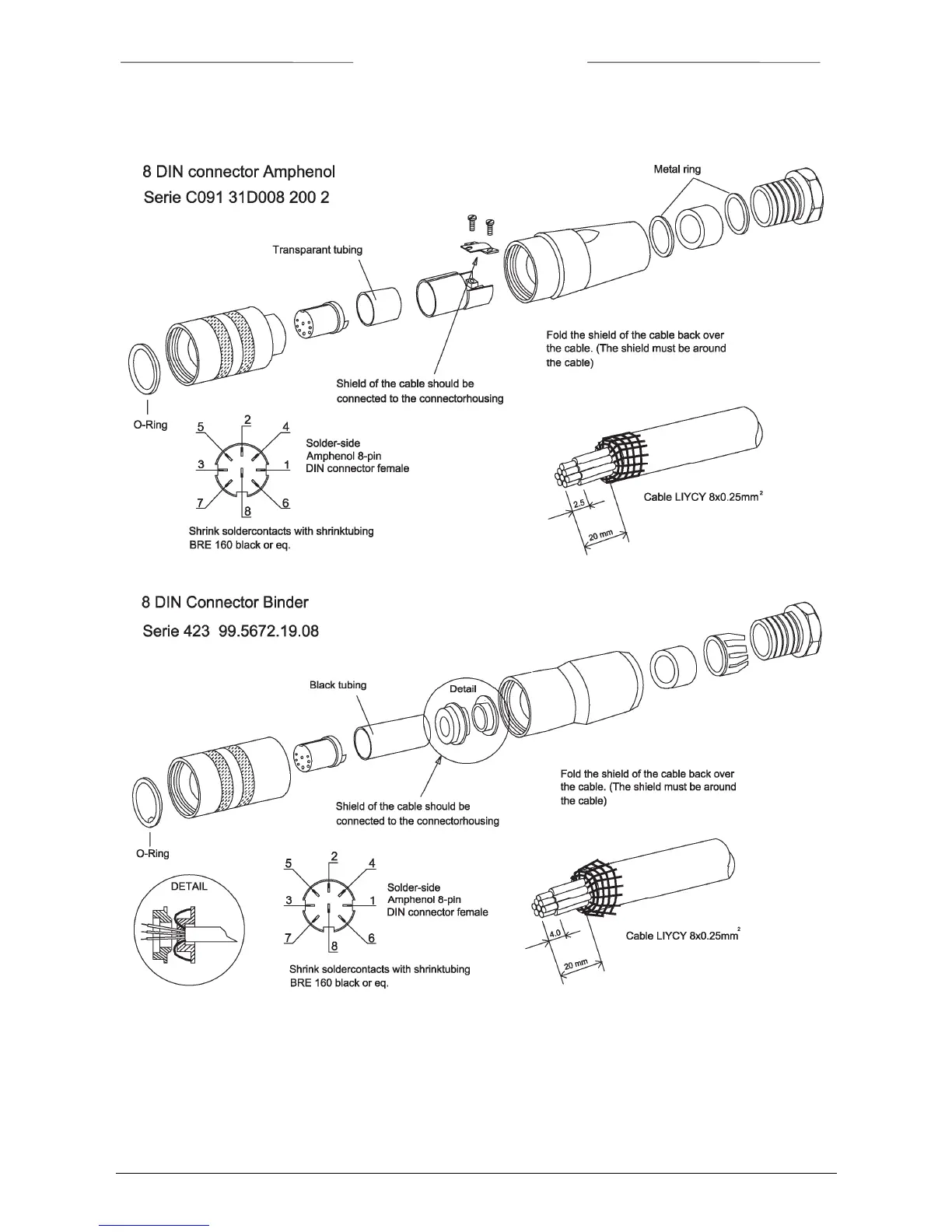

8DIN connector assembly
Notes:
1. When connecting the system to other devices (e.g. to PLC), be sure that the integrity of the shielding is
not affected. Do not use unshielded wire terminals.
2. For FLOW-BUS S(F)TP data (patch) cable connection to RJ45 connectors follow the instructions of the
supplier. It is important to use shielded twisted pair cables and shielded RJ45 modular jack connectors.
3. For PROFIBUS-DP or DeviceNet data cable connections follow the instructions of the cable suppliers for
the specific field-bus system.
