Brose E 41222 - Technical Data

Product Description | Brose Drive Magnesium housingEN | 18
3.3. Technical Data
Brose Drive with magnesium housing
Material no. Brose Drive C
Mag
E 57028
(horizontal) Brose Drive T
Mag
E 57026
Brose Drive S
Mag
E 06855
Material no. Brose Drive C
Mag
E 41219
(vertical) Brose Drive T
Mag
E 41222
Brose Drive S
Mag
E 01680
L × W × H 193 × 150 × 115 mm
Weight, approx. 2,9 kg / 6,3 lbs
Rated voltage 36 V
Continuous rated
power
250 W
Torque Brose Drive C
Mag
50 Nm
Brose Drive T
Mag
70 Nm
Brose Drive S
Mag
90 Nm
Max. assistance Brose Drive T
Mag
280 %
Brose Drive T
Mag
320 %
Brose Drive T
Mag
410 %
Assistance up to 25 km/h
Walk Assit 3-6 km/h
Tightness
IP 56 (dust-protected,
protection against
strong water jets
Operating
and storage
temperature
-25°C bis 80°C
Table 01: Technical Data
* Check which drive version has been installed in
your e-bike using the article number on the drive
unit. If the name is not recognisable, you can
also find the article number of your motor in the
«Settings» of the «Brose Display Allround» and
«Brose Display Central» displays.
Lighting for all drive variants
Rated voltage 12 V
Max. continuous rated power
Front light 6,6 W
Rear light 0,6 W
Table 02: Technical Data - Lighting

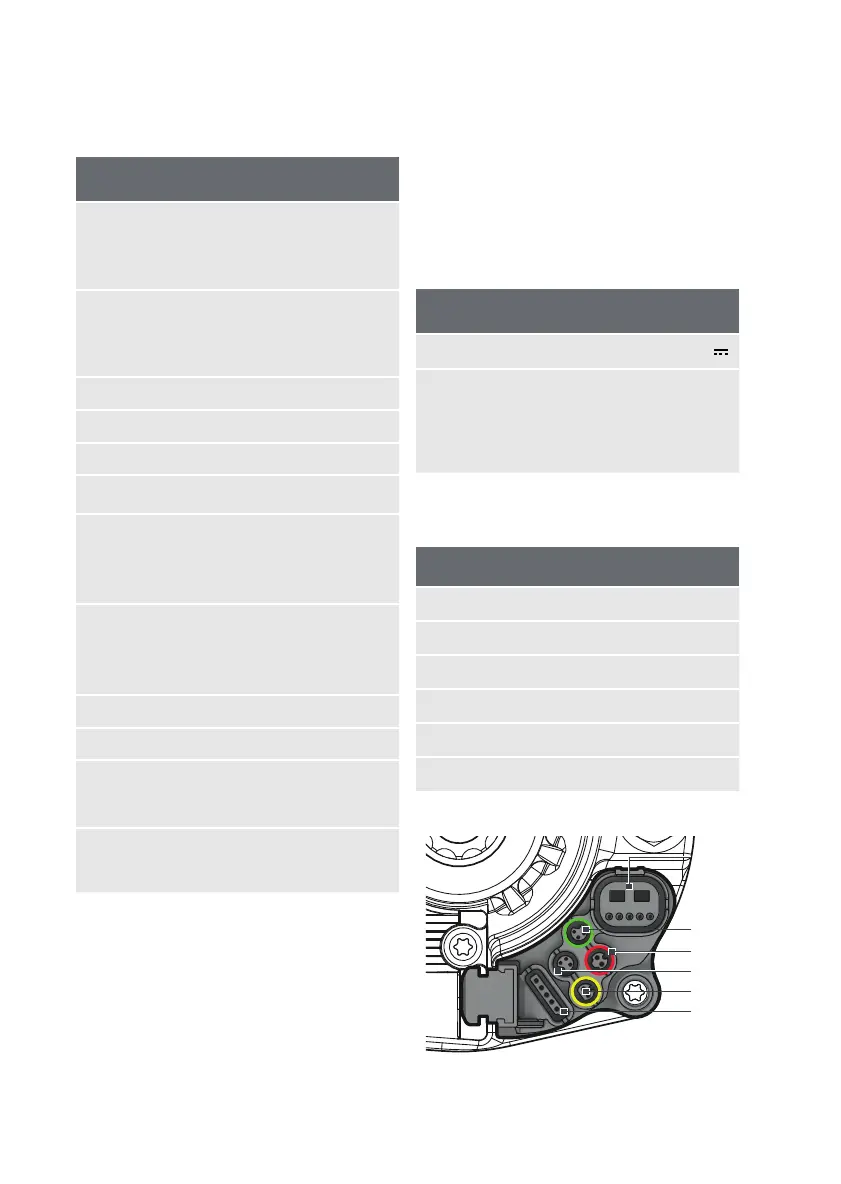

Socket Assignment
Socket assignment
(3) Rechargeable battery
(4) E-bike plug (green)
(5) Speed sensor (red)
(6) Rear light/brake
(7) Front light (yellow)
(8) HMI
Table 03: Socket Assignment
(2)
(5)
(6)
(4)
(3)
(1)
Abb. 1: Socket assignment
