3. INSTALLATION
BAS-300G-484, BAS-300G-484 SF
9

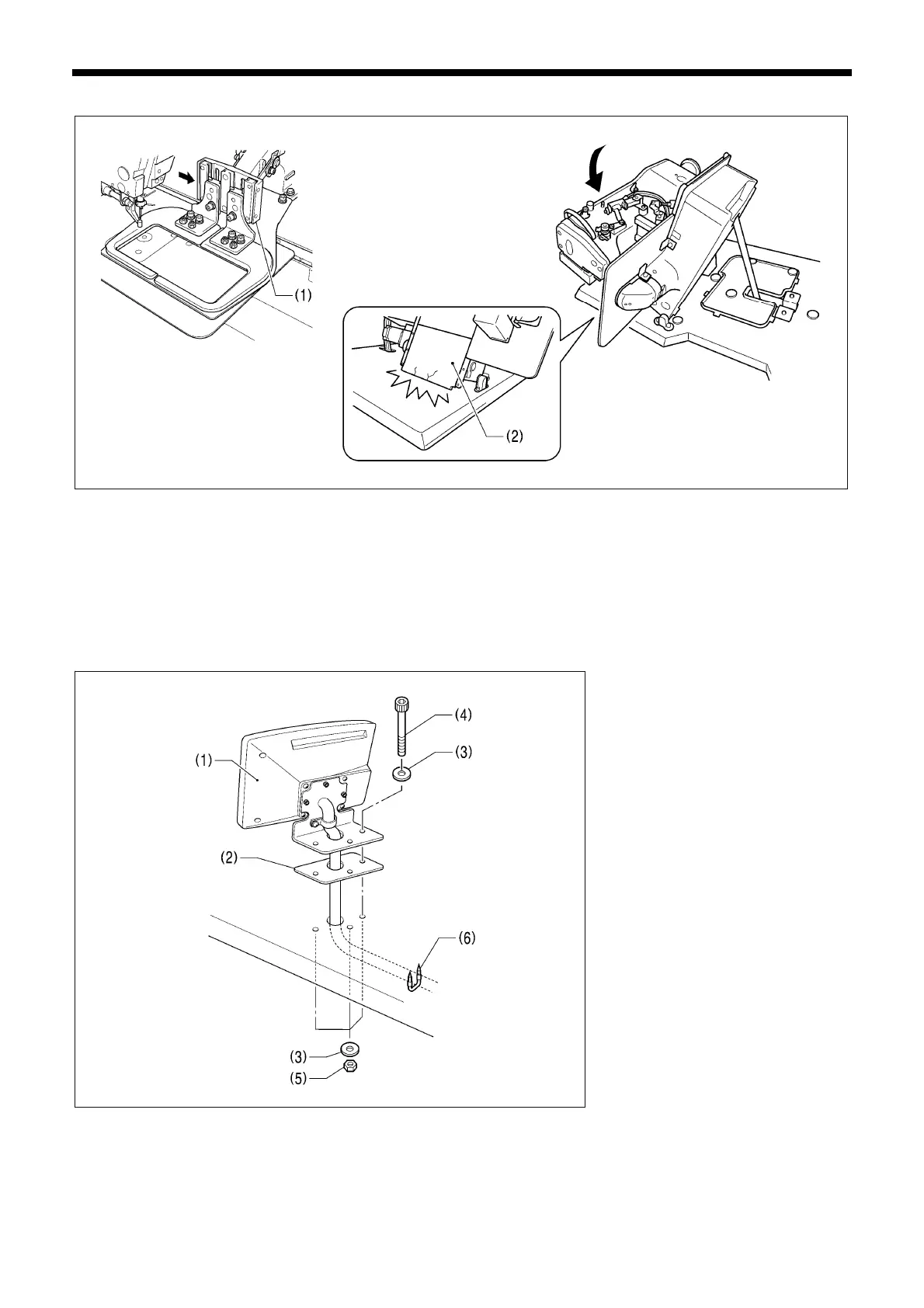

3-5. Tilting the sewing machine head
1. Move the presser arm assembly (1) as far as it will go in the direction of the arrow in the illustration (to the right when looking
from the front of the sewing machine).
2. Stand at the left side of the table, and gently tilt the machine head towards you.
NOTE:
Always be sure to move the work clamp arm (1) all the way to the right before tilting back the machine head. If you try to tilt back
the machine head while the work clamp arm (1) is still on the left side, it may damage the outer cover L (2).
3-6. Installing the operation panel
(1) Operation panel set
(2) Panel rubber
(3) Plain washers [6 pcs.]
(4) Bolts [3 pcs.]
(5) Nuts [6 pcs.]
• Insert the cord from the operation
panel (1) which has been passed
through the hole in the table into the
control box through the hole in the
side of the control box.
(6) Staples [3 pcs.]
<CAUTION>
2971B
4642M 4643M
