Brother BAS-300G-484/484SF User Manual

10. STANDARD ADJUSTMENTS
BAS-300G-484, BAS-300G-484 SF
64

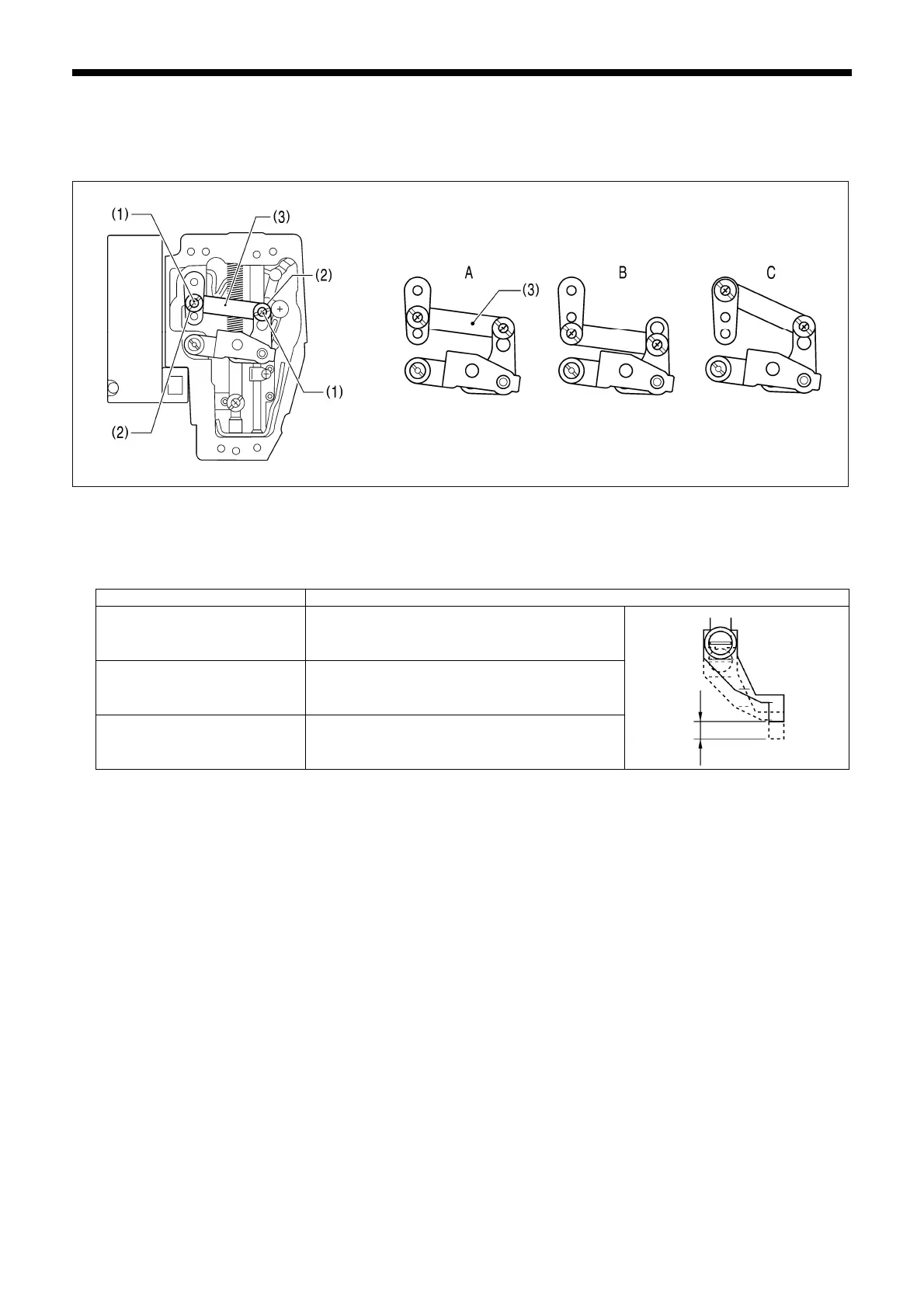

10-15. Changing the intermittent stroke (-484 SF specifications only)
The intermittent stroke can be adjusted to within 2 − 10 mm by adjusting the position of the stepping clamp connecting rod
and changing the installation position of stepping clamp link A.
<Changing the installation position of stepping clamp link A>
1. Remove the face plate.
2. Remove the two screws (1) and the two shoulder screws (2), and then remove stepping clamp link A (3).
3. Change the installation position for stepping clamp link A (3) to either A, B or C above.
If the position of the stepping clamp connecting rod is adjusted as described in the following at any one of the installation
positions, the adjustment range for the intermittent stroke will as given in the following table.
Installation position Intermittent stroke range
A
2 − 4.5mm
B
4.5 − 10mm
C
0 mm (Intermittent presser foot does not move
up and down)
5011Q5010Q
4707M

Brother BAS-300G-484/484SF Specifications

General

Model	BAS-300G-484/484SF
Number of Needles	1
Stitch Type	Lock Stitch
Type	Industrial Sewing Machine
Needle	DPx5
Presser Foot Lift	17 mm
