BAS-311F-0 17/22
2002.1

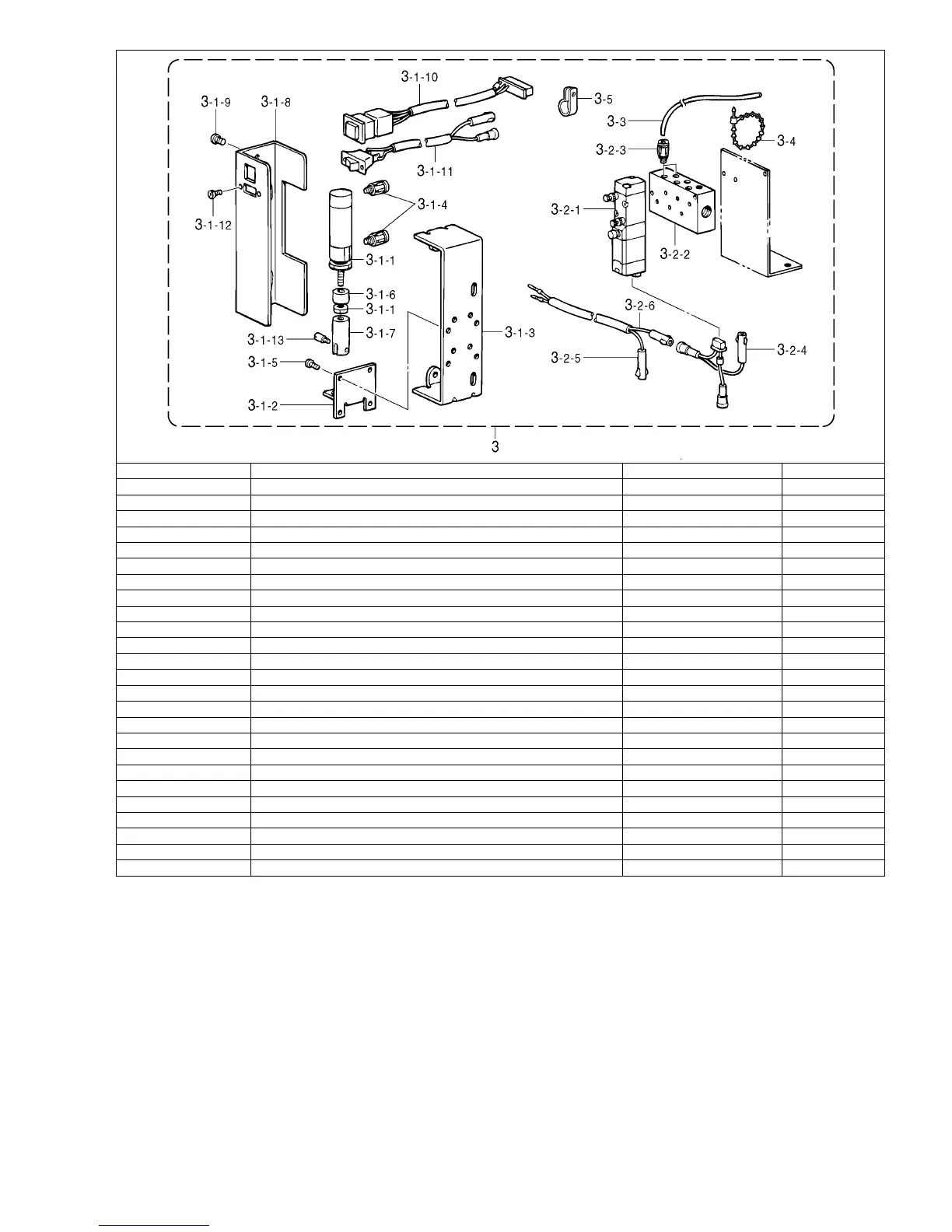

Pneumatic thread wiper
Ref. No. Part name Part code Q’ty
3 TR. wiper set, pneumatic type S43841-109 1
3-1 TR. wiper assy, pneumatic type S43842-109 1
3-1-1 Air cylinder S17942-100 1
3-1-2 Cylinder support plate S31777-001 1
3-1-3 Setting plate, solenoid S10214-109 1
3-1-4 Half union, Q4M5 S18415-101 2
3-1-5 Screw, pan SM3.57-40 x 6 062670-612 4
3-1-6 Stopper, cylinder S31778-000 1
3-1-7 Joint, cylinder S31779-001 1
3-1-8 Cylinder cover S31776-109 1
3-1-9 Screw, pan SM4.37-40 x 5 062680-512 2
3-1-10 EM-switch assy S43203-000 1
3-1-11 Thread wiper switch assy S43843-009 1
3-1-12 Screw, pan M3 x 6 062300-612 2
3-1-13 Plunger pin S02680-001 1
3-2 AW-solenoid valve assy, 3 S43844-001 1
3-2-1 Solenoid valve S43683-001 1
3-2-2 Air manifold, 3 S44748-001 1
3-2-3 Half union, Q4M5 S18415-101 2
3-2-4 AW-valve harness, A S44759-000 1
3-2-5 AW-valve harness, B S44760-000 1
3-2-6 Valve harness, 24V S44750-000 1
3-3 Air tube, 4L = 1900 S15031-008 2
3-4 Bead band 340400-001 7
3-5 Cord holder, 7N 149287-000 4
