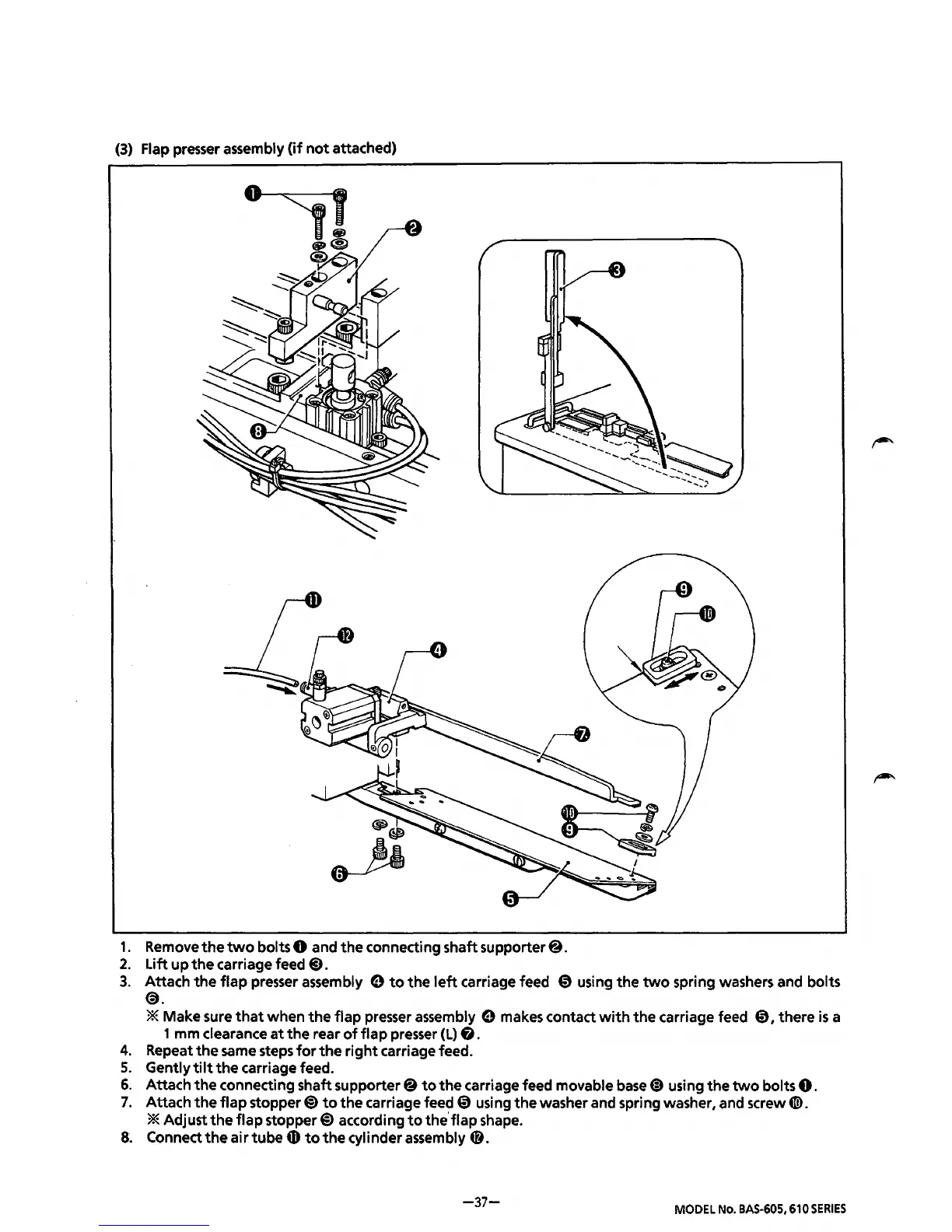

(3) Flap presser assembly (if not attached)
1. Remove the two bolts 0 and the connecting shaft supporter@.
2. Lift up the carriage feed @).
3. Attach the flap presser assembly e to the left carriage feed 0 using the two spring washers and bolts
@.
* Make sure that when the flap presser assembly e makes contact with the carriage feed 0, there is a
1 mm clearance at the rear of flap presser (L) 6.
4. Repeat the same steps for the right carriage feed.
5. Gently tilt the carriage feed.
6. Attach the connecting shaft supporter@ to the carriage feed movable base@) using the two bolts 0.
7. Attach the flap stopper@) to the carriage feed@ using the washer and spring washer, and screw 4Ii).
*Adjust the flap stopper@) according to the' flap shape.
8~ Connect the air tube $ to the cylinder assembly 0.
-37-
