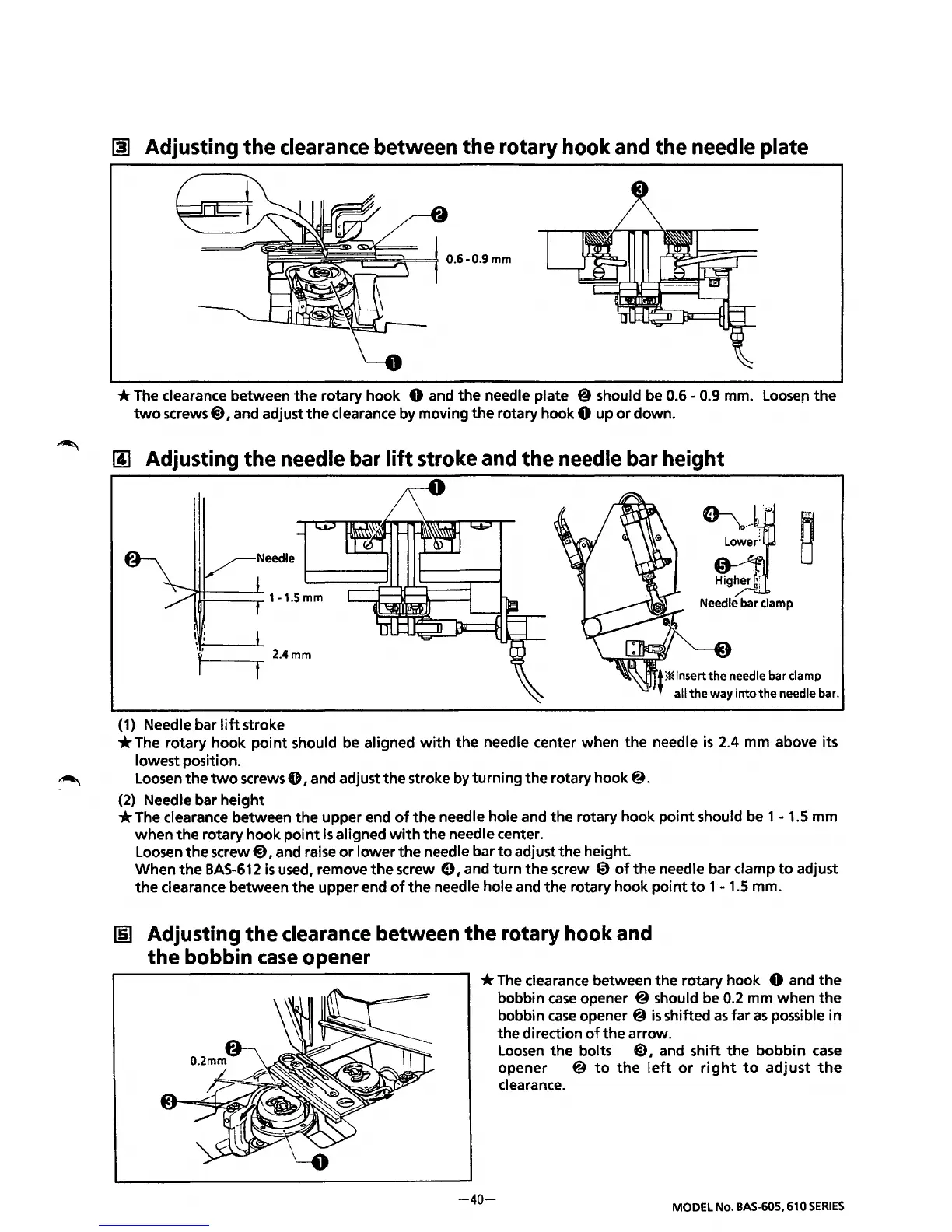

~ Adjusting the clearance between the rotary hook and the needle plate
*The clearance between the rotary hook 0 and the needle plate @should be 0.6-0.9 mm. Loosen the
two screws@), and adjust the clearance by moving the rotary hook 0 up or down.
[!] Adjusting the needle bar lift stroke and the needle bar height
Needle
J*lnsertthe needle bar clamp
all
the way into the needle bar.
(1) Needle bar lift stroke
*The rotary hook point should be aligned with the needle center when the needle is 2.4 mm above its
lowest position.
""'- Loosen the two screws 0, and adjust the stroke by turning the rotary hook@.
(2) Needle bar height
*The clearance between the upper end of the needle hole and the rotary hook point should be 1 - 1.5 mm
when the rotary hook point is aligned with the needle center.
Loosen
the screw@), and raise or lower the needle bar to adjust the height.
When
the BAS-612 is used, remove the screw 0, and turn the screw @ of the needle bar damp to adjust
the clearance between the upper end of the needle hole and the rotary hook point to 1·- 1.5 mm.
~ Adjusting the clearance between the rotary hook and
the bobbin case opener
*The clearance between the rotary hook 0 and the
bobbin case opener @should be 0.2 mm when the
bobbin case opener @ is shifted as far as possible in
the direction
of the arrow.
-40-
Loosen the bolts @), and shift the bobbin case
opener @ to the left or right to adjust the
clearance.
MODEL No. BAS-605, 610 SERIES
