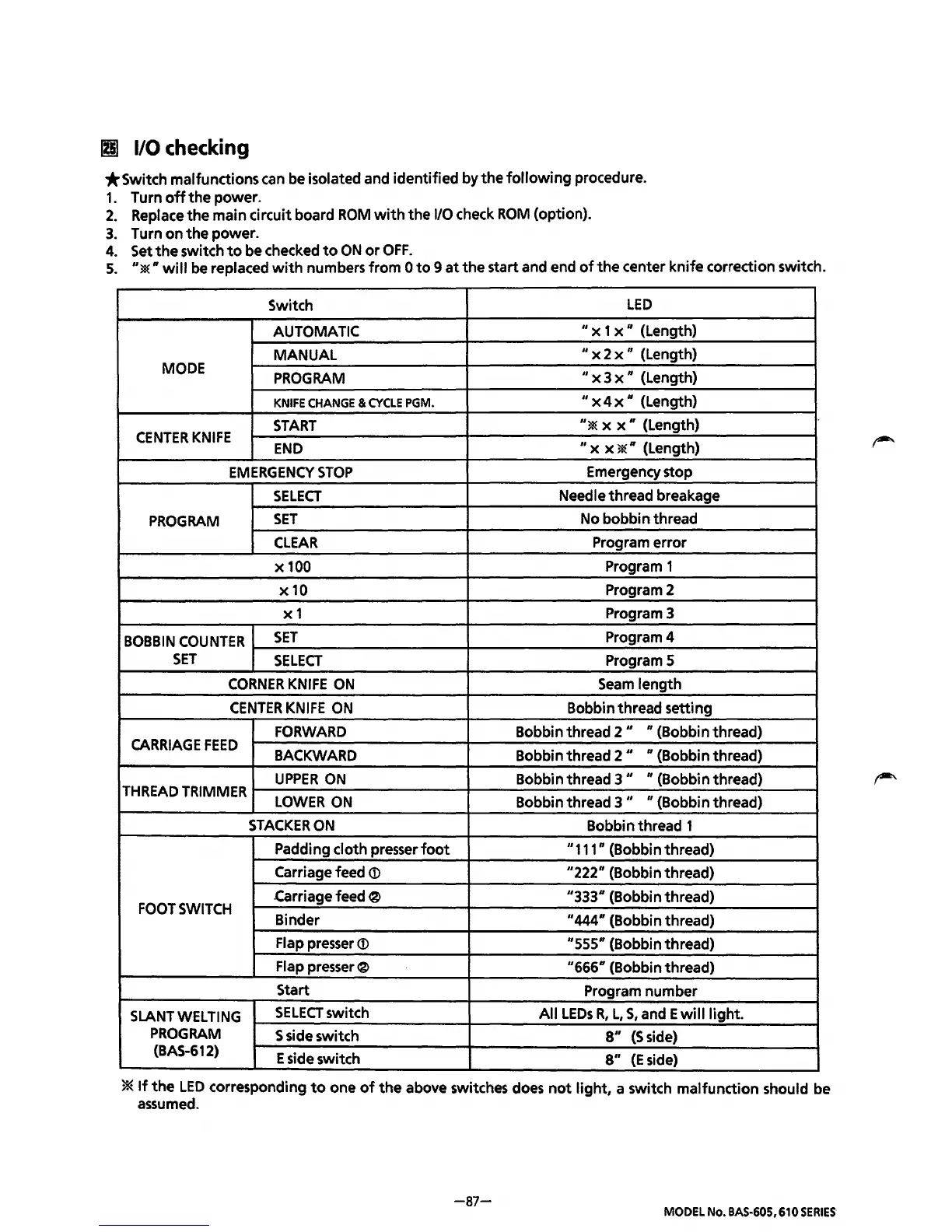

111 1/0 checking
*Switch malfunctions can be isolated and identified by the following procedure.
1. Turn off the power.
2. Replace the main circuit board ROM with the 110 check ROM (option).
3. Turn on the power.
4. Set the switch to be checked to ON or OFF.
s. II*" will be replaced with numbers from 0 to 9 at the start and end of the center knife correction switch.
Switch
LED
AUTOMATIC
II x 1 x " (Length)
MANUAL
II x 2 x " (Length)
MODE
PROGRAM
II x 3 x " (Length)
KNIFE CHANGE & CYCLE PGM.
II x 4 x " (Length)
START
II* x x " (Length)
CENTER KNIFE
II x x *" (Length)
END
EMERGENCY STOP
Emergency stop
SELECT
Needle thread breakage
PROGRAM
SET
No bobbin thread
CLEAR
Program error
X 100
Program 1
x10
Program 2
x1
Program 3
BOBBIN COUNTER
SET Program 4
SET
SELECT
Program 5
CORNER KNIFE ON Seam length
CENTER KNIFE ON
Bobbin thread setting
FORWARD
Bobbin
thread 2 II
"(Bobbin thread)
CARRIAGE FEED
BACKWARD
Bobbin thread 2 II
" (Bobbin thread)
UPPER ON Bobbin thread 3 II
"(Bobbin thread)
THREAD TRIMMER
LOWER ON
Bobbin thread 3 II
"(Bobbin thread)
STACKER ON
Bobbin thread 1
Padding
cloth presserfoot
"111" (Bobbin thread)
Carriage feed <D
"222" (Bobbin thread)
FOOT SWITCH
.Carriage feed ®
11
333" (Bobbin thread)
Binder
11
444" (Bobbin thread)
Flap presser <D
11
555" (Bobbin thread)
Flap presser 0
"666" (Bobbin thread)
Start
Program number
SLANT WELTING
SELECT switch
All LEOs R, L, S, and E will light.
PROGRAM
S side switch
8" (Sside)
(BAS-612)
E side switch
8" (E side)
* If the LED corresponding to one of the above switches does not light, a switch malfunction should be
assumed.
-87-
MODEL No. BAS-605, 610 SERIES
