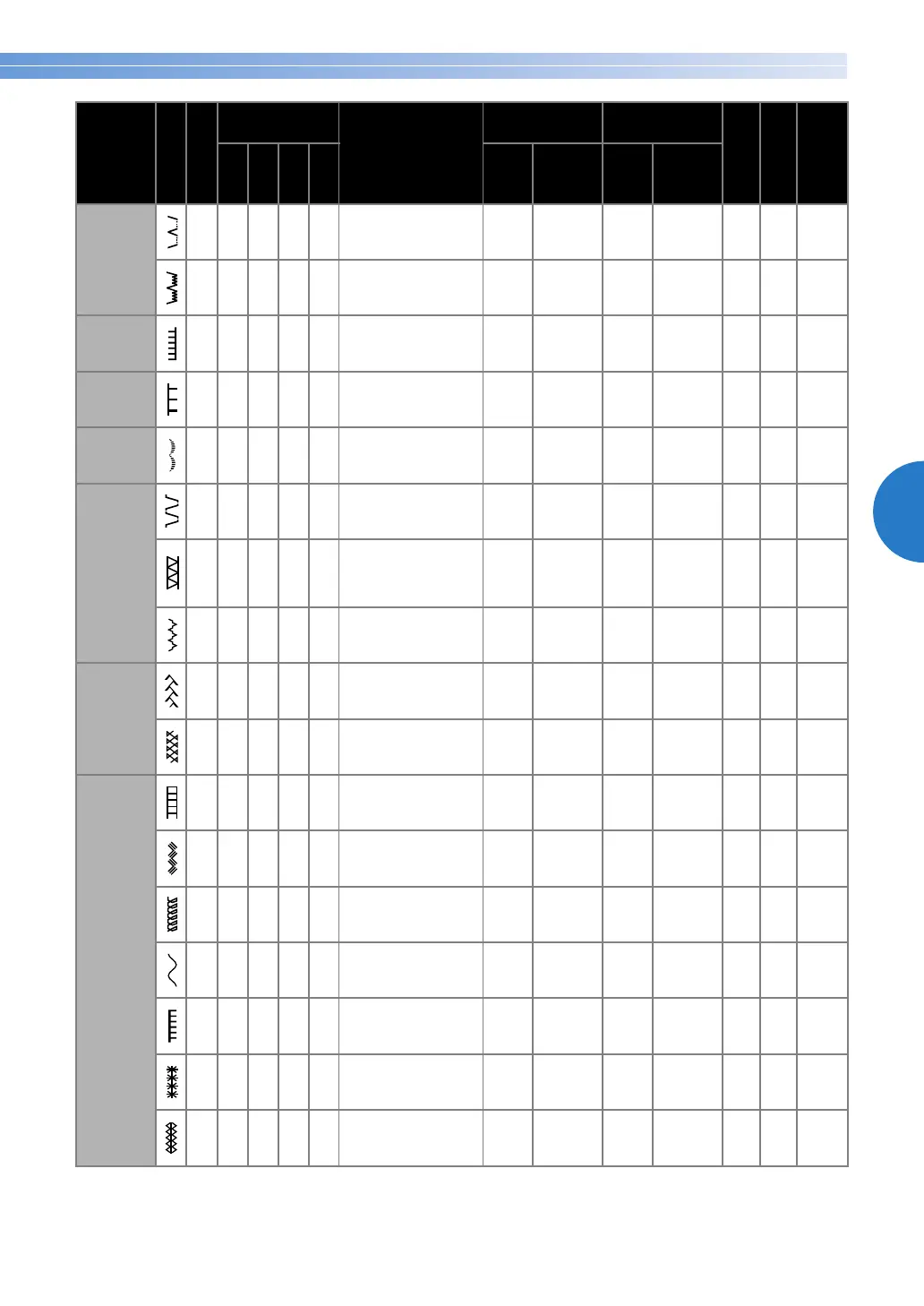

Stitch Name
Pattern
Presser Foot
Pattern No.
Application
Stitch Width
[mm (inch.)]
Stitch Length
[mm (inch.)]
Twin Needle
Walking Foot
Reverse/
Reinforcement
Stitching
70 stitches
model
60 stitches
model
50 stitches
model
40 stitches
model
Auto Manual Auto Manual
Blind hem
stitch
R 09090909
Blind hem stitching on
medium weight fabrics
0
(0)
3 – –3
2.0
(1/16)
1.0–3.5
(1/16–1/8)
No No Rfc.
R 10101010
Blind hem stitching on
stretch fabrics
0
(0)
3 – –3
2.0
(1/16)
1.0–3.5
(1/16–1/8)
No No Rfc.
Appliqué
stitch
J 11 11 11 11 Appliqué stitching
3.5
(1/8)
2.5–5.0
(3/32–3/16)
2.5
(3/32)
1.6–4.0
(1/16–3/16)
Yes
( J )
No Rfc.
Shell tuck
stitch
J 12 12 12 12 Shell tuck stitching
4.0
(3/16)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.2–4.0
(1/64–3/16)
Yes
( J )
No Rfc.
Satin scallop
stitch
N 13 13 13 13 Scallop stitching
5.0
(3/16)
2.5-7.0
(3/32-1/4)
0.5
(1/32)
0.1-1.0
(1/64-1/16)
Yes
( J )
No Rfc.
Joining stitch
J 14141414
Patchwork stitching and
decorative stitching
4.0
(3/16)
0.0–7.0
(0–1/4)
1.2
(1/16)
0.2–4.0
(1/64–3/16)
Yes
( J )
No Rfc.
J 15151515
Patchwork stitching, dec-
orative stitching and sew-
ing overcasting on both
pieces of fabrics, such as
with tricot
5.0
(3/16)
2.5–7.0
(3/32–1/4)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
Yes
( J )
No Rfc.
J 16161616
Patchwork stitching and
decorative stitching
5.0
(3/16)
0.0–7.0
(0–1/4)
1.2
(1/16)
0.2–4.0
(1/64–3/16)
Yes
( J )
No Rfc.
Fagoting
stitch
J 17171717
Fagoting, smocking and
decorative stitching
5.0
(3/16)
0.0-7.0
(0-1/4)
2.5
(3/32)
1.0-4.0
(1/16-3/16)
Yes
( J )
No Rfc.
J 18181818
Fagoting, smocking and
decorative stitching
5.0
(3/16)
2.5-7.0
(3/32-1/4)
2.5
(3/32)
1.0-4.0
(1/16-3/16)
Yes
( J )
No Rfc.
Decorative
stitch
J 19 19 19 19 Decorative stitching
4.0
(3/16)
0.0-7.0
(0-1/4)
3.0
(1/8)
2.0-4.0
(1/16-3/16)
No No Rfc.
J 20 20 20 20 Decorative stitching
4.0
(3/16)
0.0-7.0
(0-1/4)
2.5
(3/32)
1.0-4.0
(1/16-3/16)
Yes
( J )
No Rfc.
J 21 21 21 Decorative stitching
5.5
(7/32)
0.0-7.0
(0-1/4)
1.6
(1/16)
1.0-4.0
(1/16-3/16)
Yes
( J )
No Rfc.
N
22 22 22 21
Decorative stitching and
elastic-attaching
5.0
(3/16)
1.5-7.0
(1/64-1/4)
1.0
(1/16)
0.2-4.0
(1/64-3/16)
Yes
( J )
No Rfc.
N 23232322
Lace sewing, decorative
hemming, heirloom
stitching, etc.
3.5
(1/8)
1.5-7.0
(1/16-1/4)
2.5
(3/32)
1.6-4.0
(1/16-3/16)
No No Rfc.
N 24242423
Decorative hemming,
heirloom stitching, etc.
6.0
(15/64)
1.5-7.0
(1/16-1/4)
3.0
(1/8)
1.5-4.0
(1/16-3/16)
No No Rfc.
N252525
Decorative hemming on
thin, medium weight and
plain weave fabrics, heir-
loom stitching, etc.
5.0
(3/16)
1.5-7.0
(1/16-1/4)
3.5
(1/8)
1.5-4.0
(1/16-3/16)
No No Rfc.
*Rfc.: Reinforcement **Select a stitch width of 5.0 mm (3/16 inch) or less.
**
**
**
**
**
**
**
**
**
**
**
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
