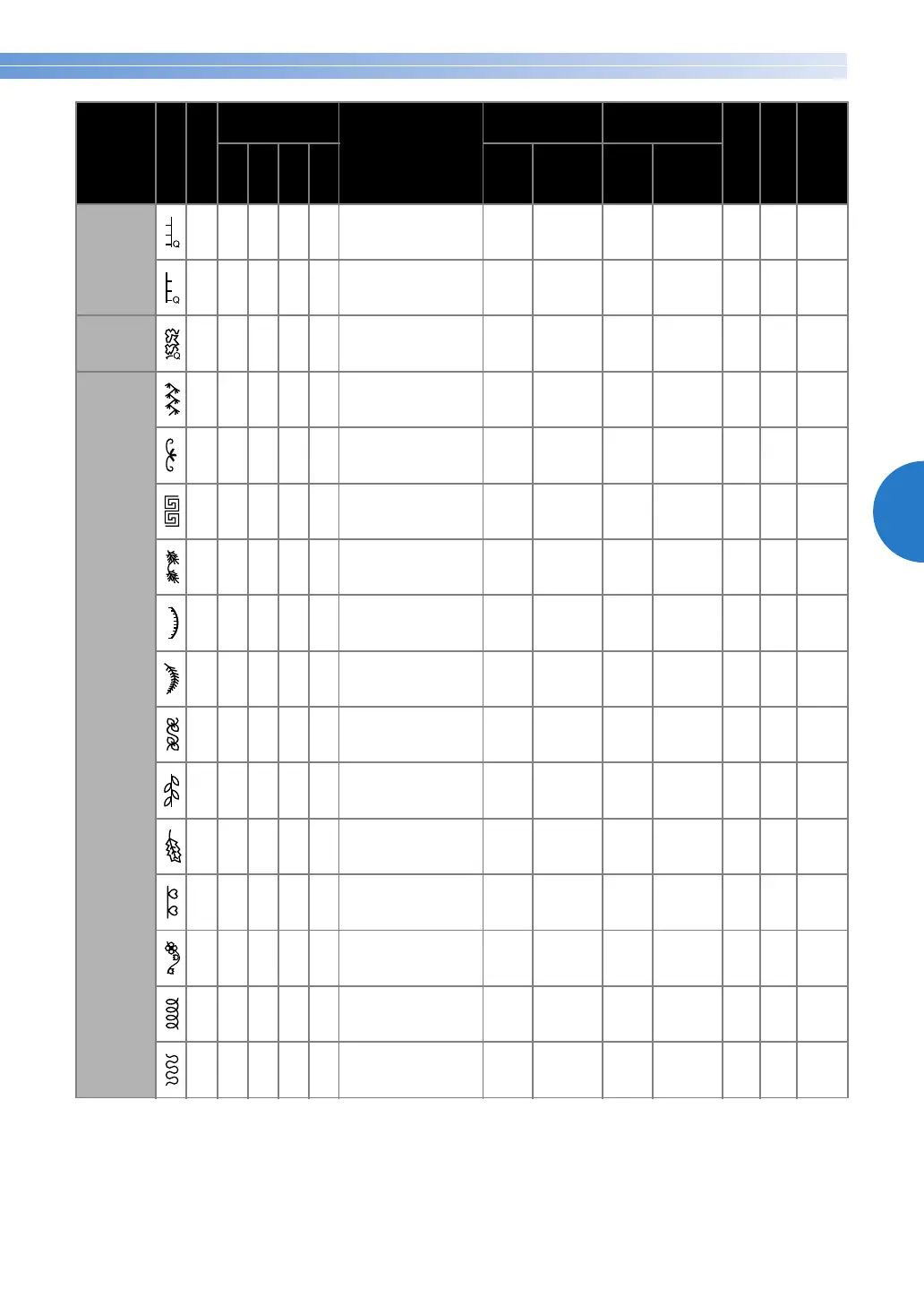

Stitch Name
Pattern
Presser Foot
Pattern No.
Application
Stitch Width
[mm (inch.)]
Stitch Length
[mm (inch.)]
Twin Needle
Walking Foot
Reverse/
Reinforcement
Stitching
70 stitches
model
60 stitches
model
50 stitches
model
40 stitches
model
Auto Manual Auto Manual
Appliqué
stitch
(for quilting)
J4141- -
Attaching appliqués and
binding
1.5
(1/16)
0.5–5.0
(1/32–3/16)
1.2
(1/16)
1.0–4.0
(1/16–3/16)
No No Rfc.
J4242- -
Attaching appliqués and
binding
1.5
(1/16)
0.5–5.0
(1/32–3/16)
1.2
(1/16)
1.0–4.0
(1/16–3/16)
No No Rfc.
Quilting
stippling
J4343- -
Quilting background
stitching (stippling)
7.0
(1/4)
1.0–7.0
(1/16–1/4)
1.6
(1/16)
1.0–4.0
(1/16–3/16)
No No Rfc.
Decorative
stitch
N 44 44 36 32 For decoration, etc.
7.0
(1/4)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.2–4.0
(1/64–3/16)
No No Rfc.
N 45 45 37 33 For decoration, etc.
7.0
(1/4)
0.0–7.0
(0–1/4)
2.0
(1/16)
0.2–4.0
(1/64–3/16)
No No Rfc.
N 46 46 38 - For decoration, etc.
7.0
(1/4)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.2–4.0
(1/64–3/16)
No No Rfc.
N 47 - - - For decoration, etc.
7.0
(1/4)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.2–4.0
(1/64–3/16)
No No Rfc.
N 48 47 39 - For decoration, etc.
7.0
(1/4)
0.0–7.0
(0–1/4)
2.0
(1/16)
0.2–4.0
(1/64–3/16)
No No Rfc.
N 49 48 40 - For decoration, etc.
7.0
(1/4)
0.0–7.0
(0–1/4)
2.0
(1/16)
0.2–4.0
(1/64–3/16)
No No Rfc.
N 50 - - - For decoration, etc.
7.0
(1/4)
0.0–7.0
(0–1/4)
1.6
(1/16)
0.2–4.0
(1/64–3/16)
No No Rfc.
N 51 49 41 34 For decoration, etc.
7.0
(1/4)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.2–4.0
(1/64–3/16)
No No Rfc.
N 52 - - - For decoration, etc.
7.0
(1/4)
0.0–7.0
(0–1/4)
2.0
(1/16)
0.2–4.0
(1/64–3/16)
No No Rfc.
N 53 - - - For decoration, etc.
5.0
(3/16)
0.0–7.0
(0–1/4)
2.0
(1/16)
0.2–4.0
(1/64–3/16)
No No Rfc.
N 54 - - - For decoration, etc.
7.0
(1/4)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.2–4.0
(1/64–3/16)
No No Rfc.
N 55 50 - - For decoration, etc.
7.0
(1/4)
0.0–7.0
(0–1/4)
1.6
(1/16)
0.2–4.0
(1/64–3/16)
No No Rfc.
N 56 51 - - For decoration, etc.
7.0
(1/4)
0.0–7.0
(0–1/4)
1.4
(1/16)
0.2–4.0
(1/64–3/16)
No No Rfc.
*Rfc.: Reinforcement
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
