Brother DCP-6690CW Quick Setup Guide

4
5

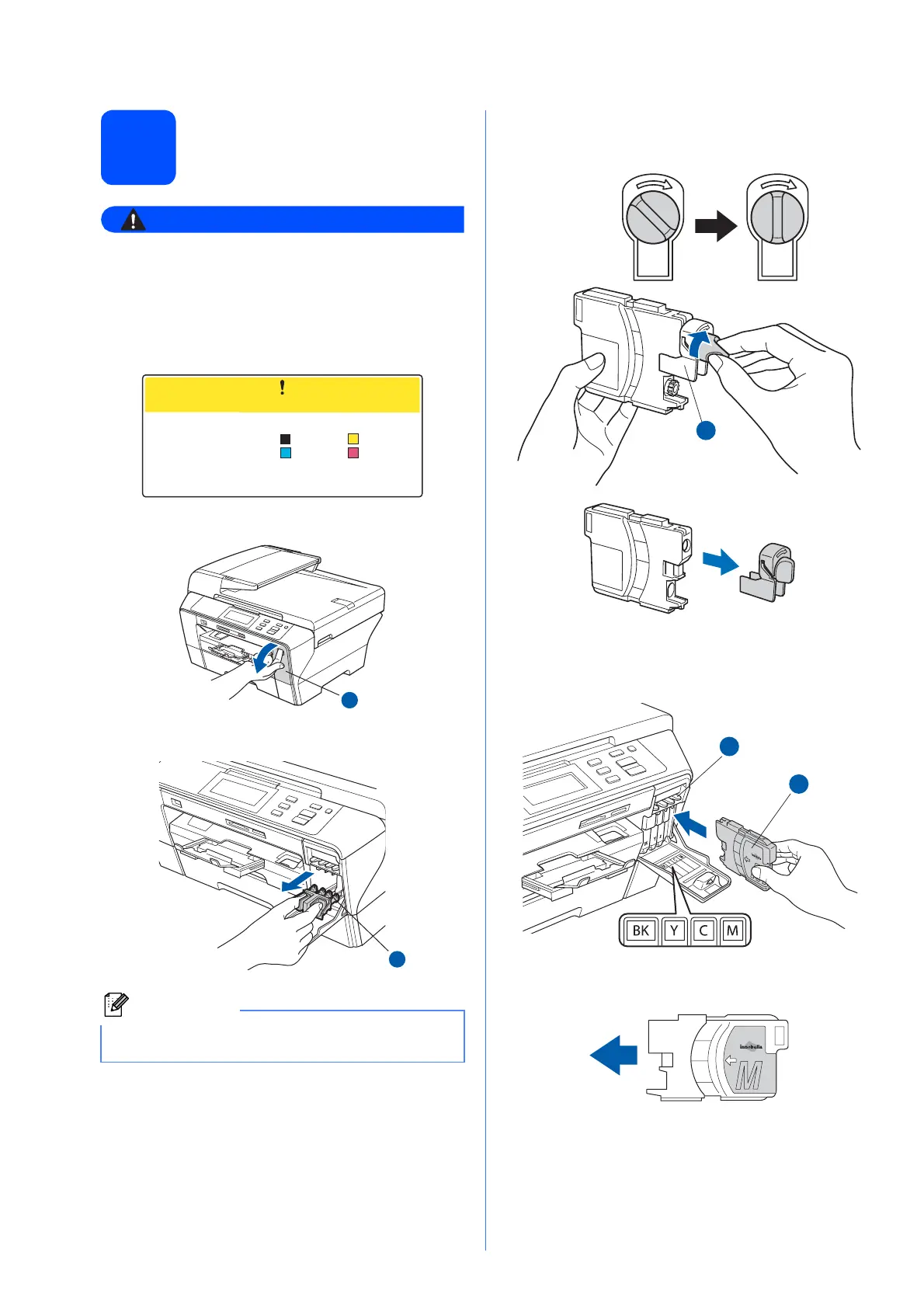

Install the ink cartridges
WARNING
If ink gets in your eyes, wash them out with
water at once, and if irritation occurs consult a
doctor.
a Make sure that the power is turned on.
The LCD shows:
b Open the ink cartridge cover a.
c Remove the green protective part a.
d Unpack the ink cartridge.
e Turn the green knob on the protective yellow
cap clockwise until it clicks to release the
vacuum seal, then remove the cap a.
f Take care to match the colour of the lever a
with the cartridge colour b, as shown in the
diagram below.
g Install each ink cartridge in the direction of the
arrow on the label.
Note
Do not throw away the green protective part. You
will need it if you transport the machine.
No Cartridge
Install Ink
Black
BK
Cyan
C
Yellow
Y
Magenta
M
1
1
1
1
2
1

Brother DCP-6690CW Specifications

General

Print technology	Inkjet
Maximum resolution	1200 x 6000 DPI
Print speed (black, normal quality, A4/US Letter)	35 ppm
Print speed (color, normal quality, A4/US Letter)	28 ppm
Maximum copy resolution	1200 x 1200 DPI
Copy speed (black, normal quality, A4)	23 cpm
Copy speed (color, normal quality, A4)	20 cpm
Display diagonal	4.2 \
Market positioning	Business
Mac compatibility	Yes
Compatible memory cards	miniSD, SD, SDHC
Sound pressure level (printing)	50 dB
Maximum print size	297 x 420 mm
Media weight (tray 1)	64 - 220 g/m²
Maximum ISO A-series paper size	A3
Scan speed	4.49 sec/page
Dimensions (WxDxH)	540 x 488 x 323 mm
All-in-one functions	Copy, Scan
Standard media sizes	A3, A4, A5, A6, B4, B5
Color all-in-one functions	copy, print, scan
Compatible operating systems	Windows Vista Certified Windows XP (32 & 64 bit edities) Windows 2000 Mac OS 10.2.4 & later Linux printer driver
USB 2.0 ports quantity	1
Digital sender	No
Number of print cartridges	4
Package weight	21500 g
Grayscale levels	256
Image formats supported	BMP, JPG, PNG
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA, (Auto IP), NetBIOS/WINS, LPR/LPD, Custom Raw Port/Port9100, DNS-resolver, mDNS, FTP-server, TELNET, SNMPv1, TFTP, scannerpoort, LLTD-responder
Power consumption (standby)	6 W
Power consumption (PowerSave)	0.7 W
Power consumption (average operating)	26 W
