Brother DCP-6690CW Quick Setup Guide

5
h Gently push the ink cartridge until it clicks. After
all the ink cartridges are installed close the ink
cartridge cover.
6

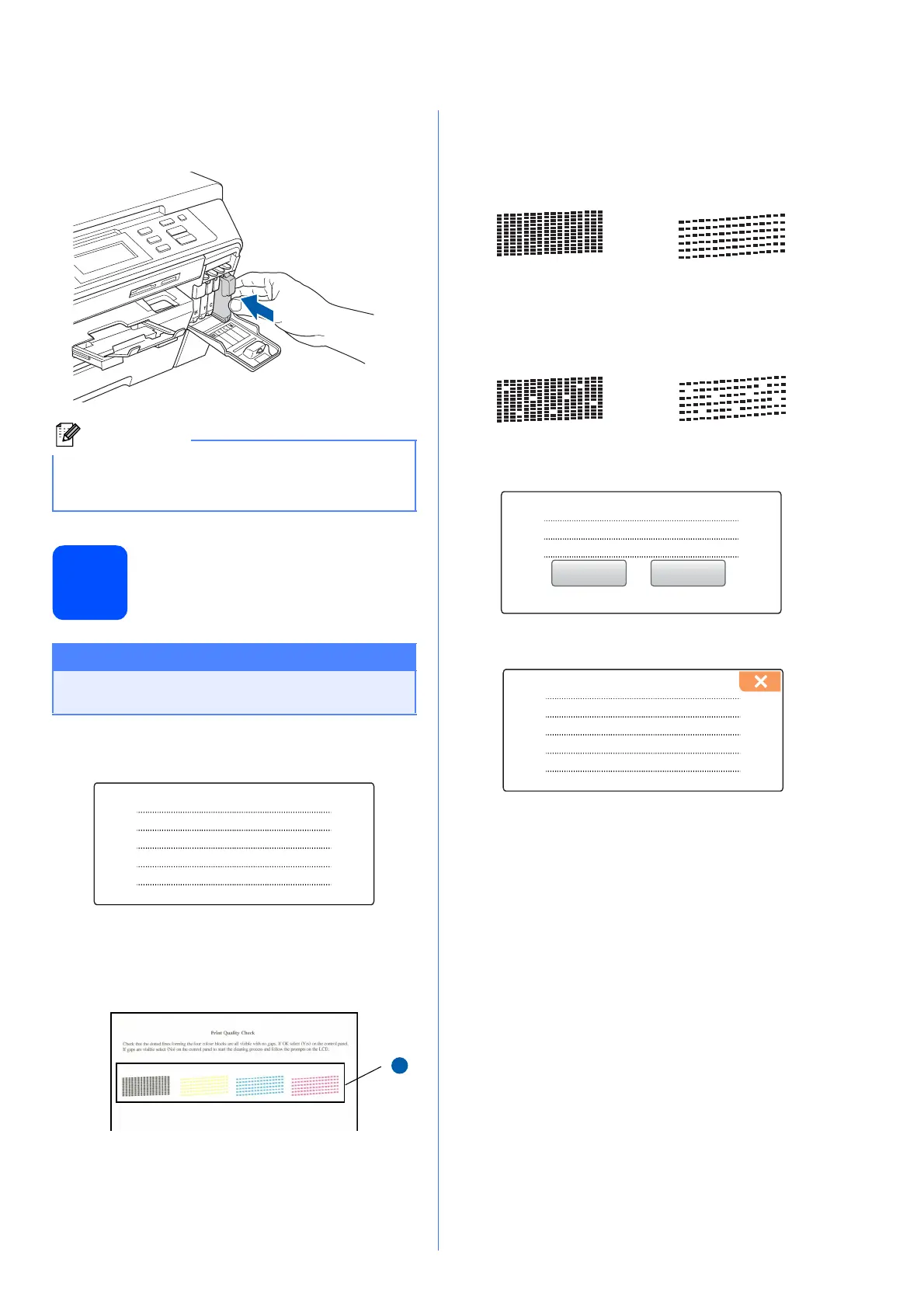

Check the print quality
a When the preparation process has finished, the
LCD shows this message
.
Press Colour Start.
b Check the quality of the four colour blocks a
on the sheet. (black/yellow/cyan/magenta)
c If all lines are clear and visible, press Yes to
finish the quality check.
If you can see missing short lines, press No and
go to d.
d The LCD asks you if the print quality is OK for
black and colour. Press Yes or No.
After pressing Yes or No for both black and
colour, the LCD shows:
e Press Colour Start, the machine will then start
cleaning the colours.
f After cleaning is finished, press Colour Start.
The machine starts printing the Print Quality
Check Sheet again. Go back to b.
Note
The machine will prepare the ink tube system for
printing. This process will take approximately four
minutes. Do not turn off the machine.
Important
Make sure you put paper in the upper tray for
the initial setup.
Set Paper and Press Start
1
1
<Black> <Colour>
OK OK
<Black> <Colour>
Poor Poor
Black OK?
Yes No
Start Cleaning?
Press Start

Brother DCP-6690CW Specifications

General

Print technology	Inkjet
Maximum resolution	1200 x 6000 DPI
Print speed (black, normal quality, A4/US Letter)	35 ppm
Print speed (color, normal quality, A4/US Letter)	28 ppm
Maximum copy resolution	1200 x 1200 DPI
Copy speed (black, normal quality, A4)	23 cpm
Copy speed (color, normal quality, A4)	20 cpm
Display diagonal	4.2 \
Market positioning	Business
Mac compatibility	Yes
Compatible memory cards	miniSD, SD, SDHC
Sound pressure level (printing)	50 dB
Maximum print size	297 x 420 mm
Media weight (tray 1)	64 - 220 g/m²
Maximum ISO A-series paper size	A3
Scan speed	4.49 sec/page
Dimensions (WxDxH)	540 x 488 x 323 mm
All-in-one functions	Copy, Scan
Standard media sizes	A3, A4, A5, A6, B4, B5
Color all-in-one functions	copy, print, scan
Compatible operating systems	Windows Vista Certified Windows XP (32 & 64 bit edities) Windows 2000 Mac OS 10.2.4 & later Linux printer driver
USB 2.0 ports quantity	1
Digital sender	No
Number of print cartridges	4
Package weight	21500 g
Grayscale levels	256
Image formats supported	BMP, JPG, PNG
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA, (Auto IP), NetBIOS/WINS, LPR/LPD, Custom Raw Port/Port9100, DNS-resolver, mDNS, FTP-server, TELNET, SNMPv1, TFTP, scannerpoort, LLTD-responder
Power consumption (standby)	6 W
Power consumption (PowerSave)	0.7 W
Power consumption (average operating)	26 W
