Brother DCP-B7535DW Service Manual

3-57
Confidential
9.13.3 Touch panel ASSY
(1) Remove the four Taptite cup B M3x10 screws to remove the Panel key PCB presser from
the Panel unit.
(2) Disconnect the Touch panel flat cable from the Key PCB ASSY. Remove the Key PCB
ASSY from the Panel unit.
(3) Release each Lock to remove the Anti static plate from the Panel unit.
(4) Release the Touch panel plate from the Boss, and slide it in the direction of the arrow to
remove it from the Panel unit. Remove the LCD frame sheet from the Panel unit.
(5) Remove the Touch panel ASSY from the Panel unit.

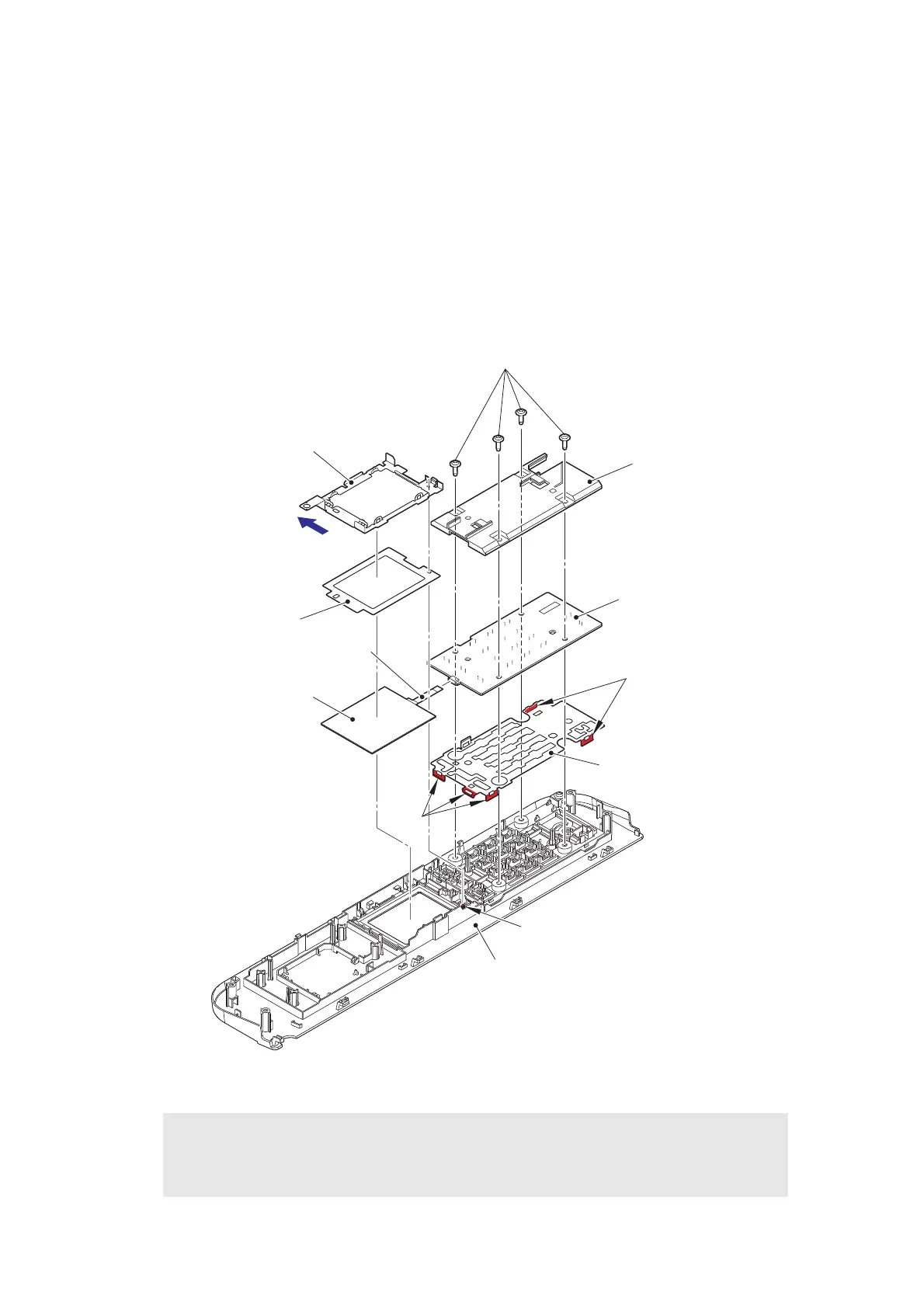

Fig. 3-49
Assembling Note:
• If you replaced the Touch panel ASSY, refer to “4. IF YOU REPLACE THE PANEL
UNIT OR PANEL CONTROL PCB” in Chapter 4 to configure settings.
Panel unit
Taptite cup B M3x10
Panel key PCB presser
Touch panel plate
Touch panel ASSY
Key PCB ASSY
Boss
Anti static plate
LCD frame sheet
Locks
Locks
Touch panel flat cable

Brother DCP-B7535DW Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Direct printing	-
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, SMTP Client, IPP/IPPS, FTP Client and Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print/Scan)
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, SMTP Client, FTP Client and Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, Web Services (Print/Scan)
Internal memory	128 MB
Card reader integrated	No
Sound pressure level (copying)	49 dB
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Copy speed (black, normal quality, A4)	36 cpm
Scan to	E-mail, FTP, File, Image, OCR
Scanner type	Flatbed & ADF scanner
Input color depth	30 bit
Output color depth	24 bit
Image formats supported	BMP, JPG, PNG, TIFF
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	PDF, XPS
Optical scanning resolution	1200 x 1200 DPI
Printer fonts	PCL, PostScript
Printing colors	Black
Maximum duty cycle	15000 pages per month
Number of print cartridges	1
Page description languages	PCL 6, PDF 1.7, PostScript 3
Total input capacity	250 sheets
Total output capacity	120 sheets
Multi-Purpose tray input capacity	1 sheets
Auto document feeder (ADF) input capacity	50 sheets
Custom media width	76.2 - 215.9 mm
Maximum print size	215 x 355 mm
Custom media length	127 - 355.6 mm
Paper tray media types	Plain paper, Recycled paper, Thin paper
Paper tray media weight	60 - 163 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 230 g/m²
Display	LCD
Control type	Buttons
Product color	Gray
Market positioning	Home & office
AC input voltage	110 - 120 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.03 W
Power consumption (ready)	43.5 W
Power consumption (standby)	0.8 W
Power consumption (average operating)	450 W
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	398.5 mm
Width	410 mm
Height	318.5 mm
Weight	11800 g
