3-18
Confidential
10

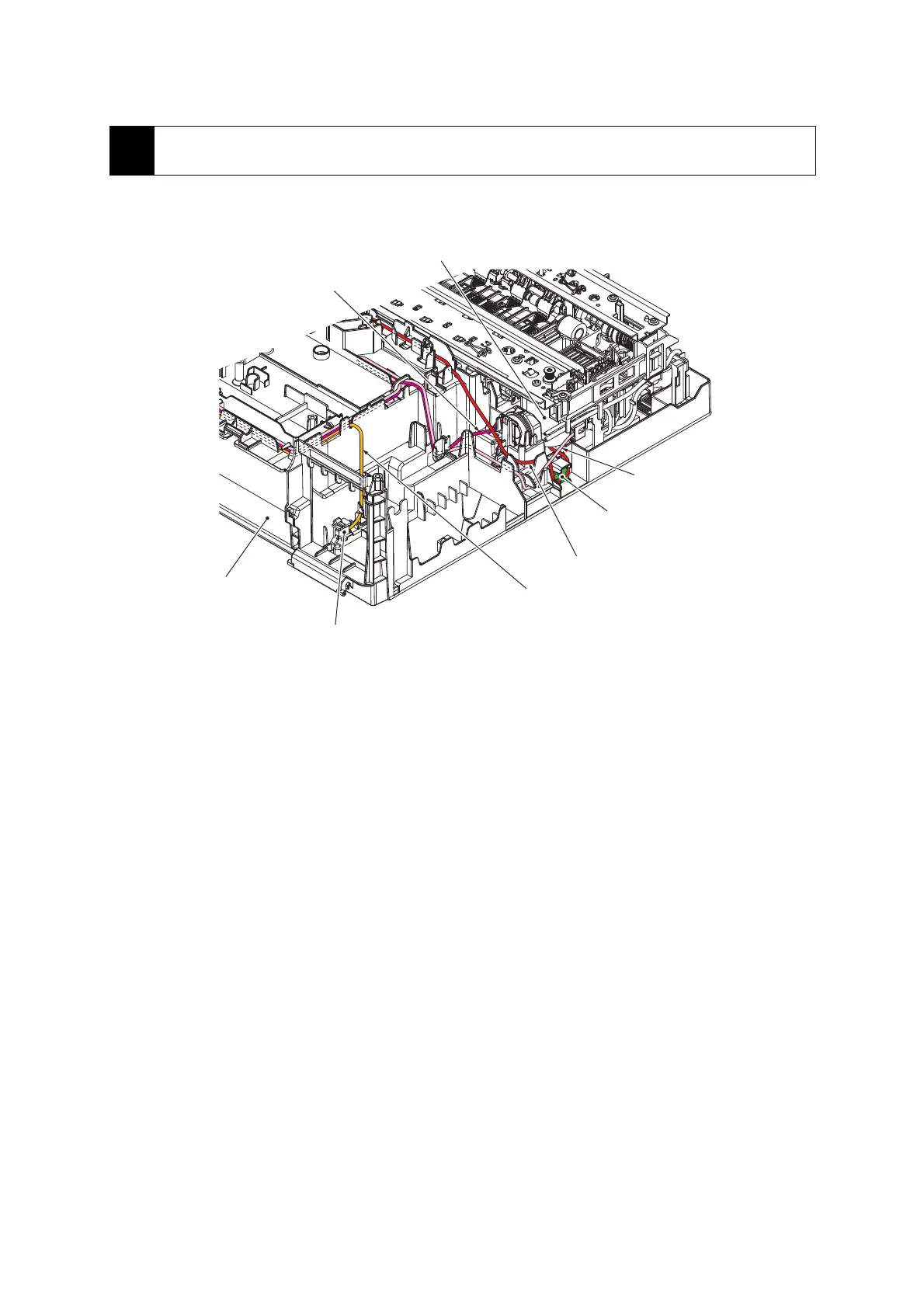

Lower cover right side: Purge cam switch harness, Carriage motor harness, Speaker harness,
Ink cartridge cover sensor harness
(3_012L)
Lower cover
Carriage motor
Purge cam switch harness
Ferrite core of
Carriage motor harness
Carriage motor harness
(Right)
Ink cartridge cover sensor harness
(Ink cartridge cover sensor ASSY)
Speaker harness
