Brother DCP-L2552DN User Manual

3-69
Confidential
(2) Remove the two Screw cup M3x8 (black) screws, and release the Modem ground harness
main from the securing fixtures.
(3)
Disconnect the Modem flat cable from the Main PCB ASSY and the Modem PCB ASSY, and
remove it from the Double-sided tape to pull it out from the hole of the Joint cover ASSY.
(4) Remove the two Taptite bind B M4x12 screws to remove the Modem shield plate.
(5) Remove the Screw cup M3x8 (black) screw to remove the Modem shield cover from the
Modem shield plate.
(6) Remove the three Screw cup M3x8 (black) screws to remove the Modem PCB ASSY from
the Modem shield plate.

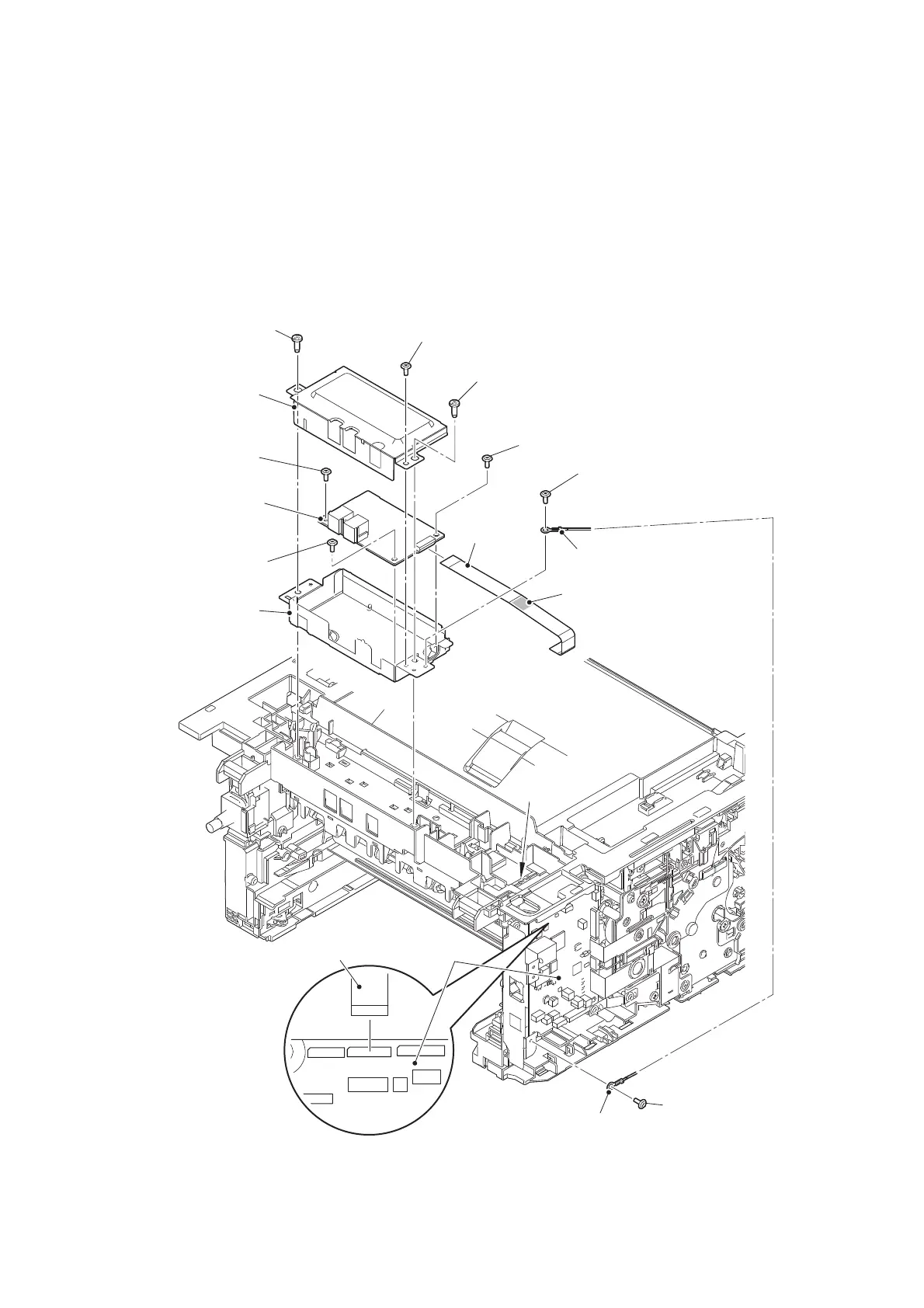

Fig. 3-62
Harness routing: Refer to “7. Modem PCB ASSY (LVPS side)”.
Taptite bind B M4x12
Main PCB ASSY
Screw cup M3x8 (black)
Taptite bind B M4x12
Screw cup M3x8 (black)
Screw cup M3x8 (black)
Modem ground harness main
Modem flat
cable
Modem shield
plate
Screw cup
M3x8 (black)
Modem PCB ASSY
Modem shield cover
Screw cup M3x8 (black)
Modem ground harness main
Modem flat cable
Screw cup M3x8
(black)
Double-sided tape
Hole of the Joint
cover ASSY

Brother DCP-L2552DN Specifications

General

N-up printing	2, 4, 9, 16, 25
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	34 ppm
Duplex print speed (black, normal quality, A4/US Letter)	16 ppm
Processor frequency	600 MHz
Card reader integrated	No
Sound pressure level (standby)	30 dB
Sound pressure level (printing)	49 dB
Sound pressure level (quiet mode)	44 dB
Cabling technology	10/100Base-T(X)
Security algorithms	SMTP-AUTH, SNMPv3, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, SMTP Client, IPP/IPPS, FTP Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print), SNTP Client
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, SMTP Client, FTP Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, SNTP Client, Web Services (Print)
Direct printing	-
Display	LCD
Control type	Buttons
Product color	Black
Market positioning	Home & office
Display number of lines	2 lines
Display number of characters	16
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4
Time to first copy (black, normal)	10 s
Copy speed (black, normal quality, A4)	34 cpm
Package depth	517 mm
Package width	580 mm
Package height	434 mm
Package weight	14700 g
Included cartridge capacity (black)	1200 pages
Scan to	E-mail, FTP, File, Image, OCR
Scan drivers	SANE, TWAIN
Grayscale levels	256
Output color depth	24 bit
Output grayscale depth	8 bit
Maximum scan resolution	19200 x 19200 DPI
Recommended monthly print volume	2000 pages
PCL fonts	94
Printer fonts	PCL, PostScript
Maximum duty cycle	15000 pages per month
Recommended duty cycle	0 - 2000 pages per month
Number of PostScript fonts	66
Number of print cartridges	1
Page description languages	BR-Script 3, PCL 6, PDF 1.7, PostScript 3
Total input capacity	250 sheets
Total output capacity	120 sheets
Multi-Purpose tray input capacity	1 sheets
Auto document feeder (ADF) input capacity	50 sheets
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Custom media length	127 - 355.6 mm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper
Paper tray media weight	60 - 163 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 230 g/m²
Auto Document Feeder (ADF) media weight	64 - 105 g/m²
Power consumption (max)	475 W
Power consumption (off)	0.03 W
Power consumption (sleep)	6.2 W
Power consumption (standby)	42 W
Power consumption (printing)	260 W
Power consumption (average operating)	- W
Energy Star Typical Electricity Consumption (TEC)	1348 kWh/week
Sustainability certificates	Nordic Swan Ecolabel, Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	398.5 mm
Width	410 mm
Height	318.5 mm
Weight	11600 g
