1.3.21 Print frame pattern (duplex printing) (Function code 70)
<Function>
This function is used to print the frame pattern on both sides of the paper to check for printing
flaws and omission.
<Operating Procedure>
(1) Set the paper specified in the default paper settings (A4 or Letter) to the paper tray.
(2) Press the [7], and then the [0] in the initial state of maintenance mode. For models
without keypad, press the [▲] or [▼] to display “MAINTENANCE 70” on the LCD and
press the [OK]. “PRINTING” is displayed on the LCD, and the frame pattern (refer to the
figure below) is printed on both sides of the paper.
(3) When printing is completed, “WAKU DX” is displayed on the LCD.
(4) Press the [X] or [Stop], and the machine returns to the initial state of maintenance mode.

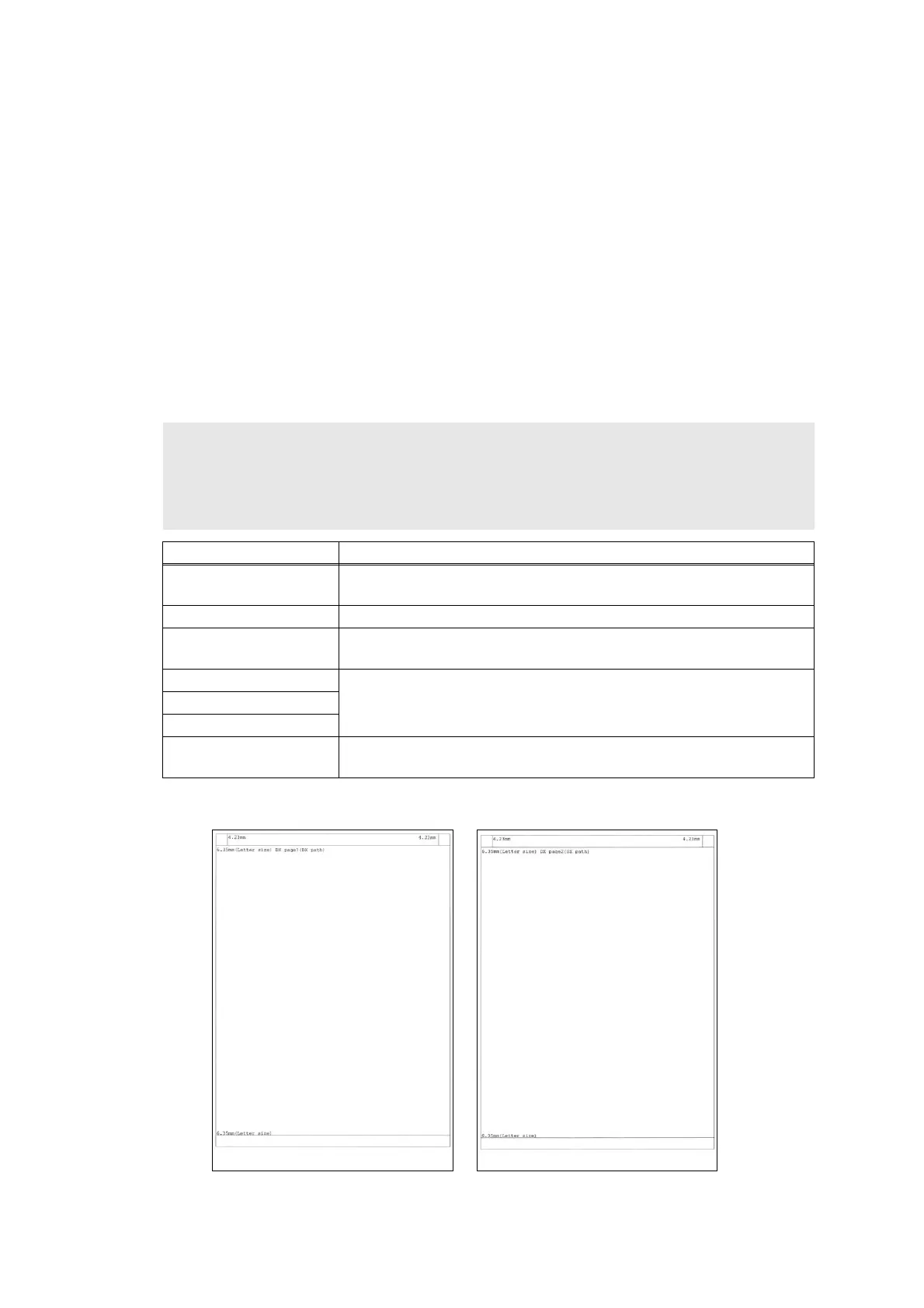

 Frame pattern
Fig. 5-18
Note:
If printing fails, printing is stopped with displaying any of the errors shown in the table below.
To retry printing, refer to the “Remedy” in the table below and eliminate the error cause and
press the [Start] or [Mono Start]. “PRINTING” is displayed on the LCD, and the frame pattern
is printed on both sides of a sheet of paper.
Error display Remedy
Replace Toner Replace the toner cartridge and press the [Start] or [Mono Start] to
release the error.
Cover is Open Close the Front cover.
No Paper Refill the paper, close the paper tray and press the [Start] or [Mono
Start] to release the error.
Jam Tray1 Remove the jammed paper, then close the paper tray and all
covers, press the [Start] or [Mono Start] to release the error.
Jam Rear
Jam Duplex
Duplex Disabled Refill the paper, then close the paper tray and all covers, press the
[Start] or [Mono Start] to release the error.

Brother DCP-L2552DN Specifications

General

N-up printing	2, 4, 9, 16, 25
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	34 ppm
Duplex print speed (black, normal quality, A4/US Letter)	16 ppm
Processor frequency	600 MHz
Card reader integrated	No
Sound pressure level (standby)	30 dB
Sound pressure level (printing)	49 dB
Sound pressure level (quiet mode)	44 dB
Cabling technology	10/100Base-T(X)
Security algorithms	SMTP-AUTH, SNMPv3, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, SMTP Client, IPP/IPPS, FTP Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print), SNTP Client
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, SMTP Client, FTP Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, SNTP Client, Web Services (Print)
Direct printing	-
Display	LCD
Control type	Buttons
Product color	Black
Market positioning	Home & office
Display number of lines	2 lines
Display number of characters	16
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4
Time to first copy (black, normal)	10 s
Copy speed (black, normal quality, A4)	34 cpm
Package depth	517 mm
Package width	580 mm
Package height	434 mm
Package weight	14700 g
Included cartridge capacity (black)	1200 pages
Scan to	E-mail, FTP, File, Image, OCR
Scan drivers	SANE, TWAIN
Grayscale levels	256
Output color depth	24 bit
Output grayscale depth	8 bit
Maximum scan resolution	19200 x 19200 DPI
Recommended monthly print volume	2000 pages
PCL fonts	94
Printer fonts	PCL, PostScript
Maximum duty cycle	15000 pages per month
Recommended duty cycle	0 - 2000 pages per month
Number of PostScript fonts	66
Number of print cartridges	1
Page description languages	BR-Script 3, PCL 6, PDF 1.7, PostScript 3
Total input capacity	250 sheets
Total output capacity	120 sheets
Multi-Purpose tray input capacity	1 sheets
Auto document feeder (ADF) input capacity	50 sheets
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Custom media length	127 - 355.6 mm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper
Paper tray media weight	60 - 163 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 230 g/m²
Auto Document Feeder (ADF) media weight	64 - 105 g/m²
Power consumption (max)	475 W
Power consumption (off)	0.03 W
Power consumption (sleep)	6.2 W
Power consumption (standby)	42 W
Power consumption (printing)	260 W
Power consumption (average operating)	- W
Energy Star Typical Electricity Consumption (TEC)	1348 kWh/week
Sustainability certificates	Nordic Swan Ecolabel, Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	398.5 mm
Width	410 mm
Height	318.5 mm
Weight	11600 g
