Brother EF4-V41 - Knife Mechanism

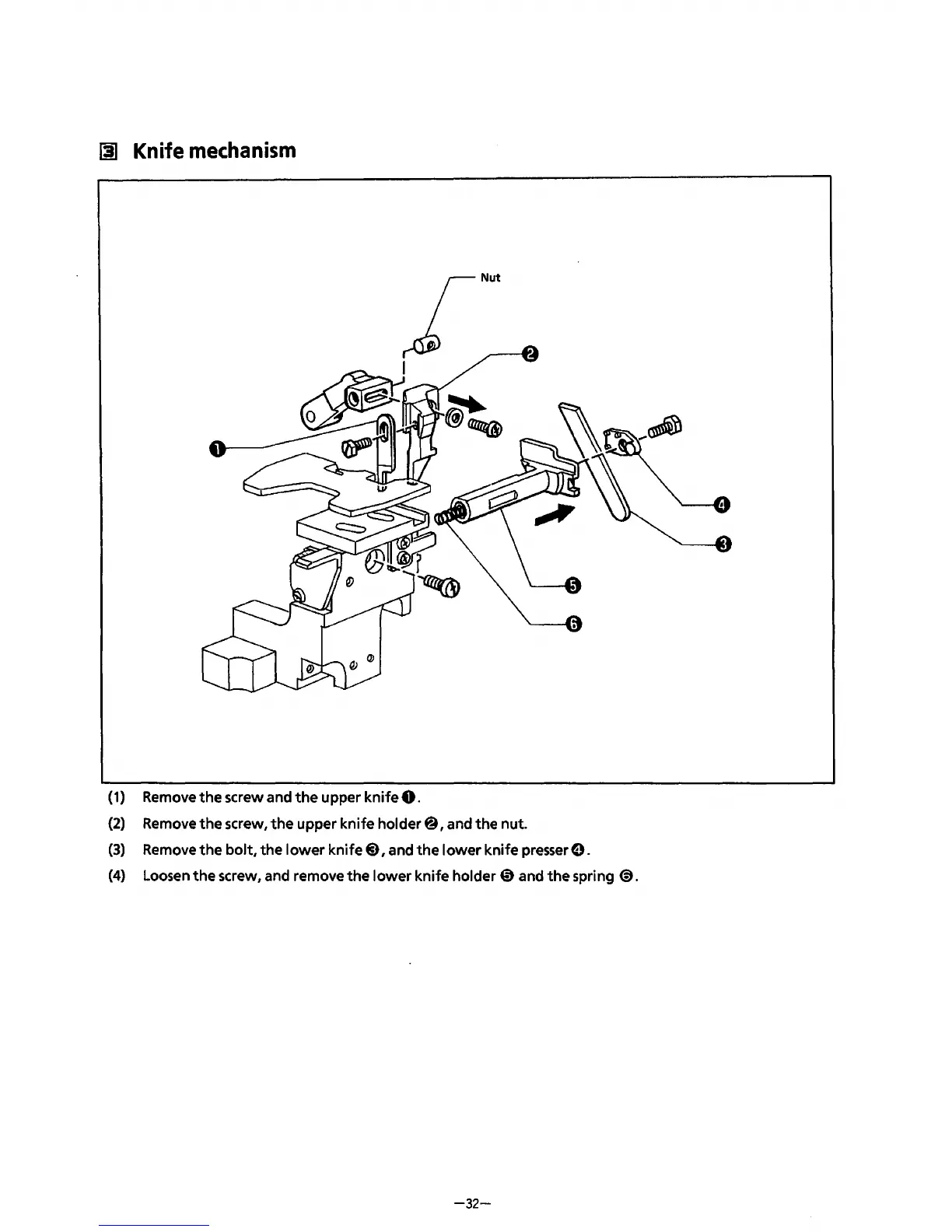

~ Knife mechanism
(1) Remove the screw and the upper knife 0.
(2) Remove the screw, the upper knife holder@, and the nut.
(3) Remove the bolt, the lower knife@ I and the lower knife presser e.
(4) Loosen the screw, and remove the lower knife holder (D and the spring @).
-32-
