(ASSEMBLY)
1I1

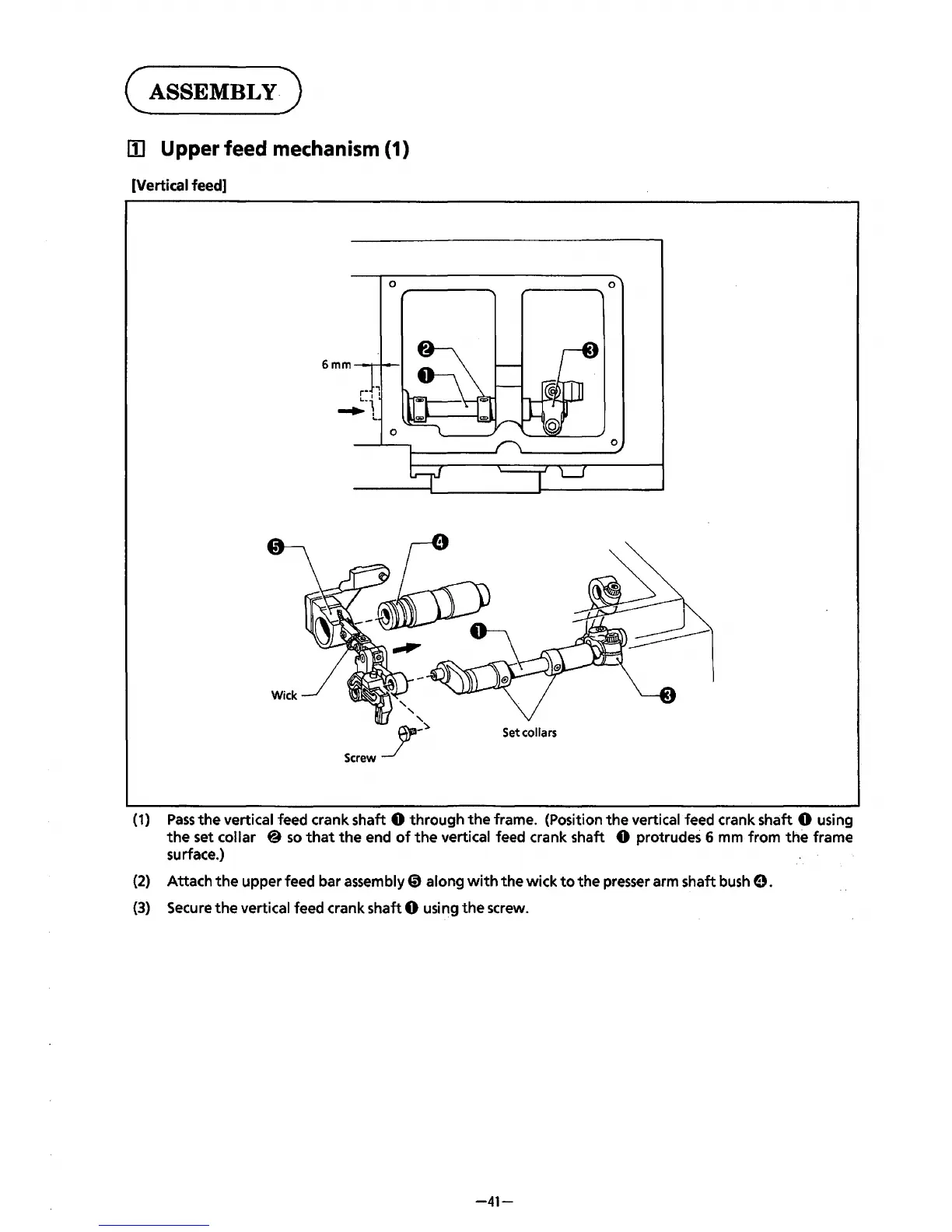

Upper feed mechanism (1)
[Vertical feed]
0-----...
____
o
6 m m ---+--+--•
0
0
Set
collars
(1)
Pass
the
vertical feed crank shaft 0 through
the
frame. (Position
the
vertical feed crank shaft 0 using
the
set collar @
so
that
the
end
of
the
vertical feed crank shaft 0 protrudes 6 mm from
the
frame
surface.)
(2)
Attach
the
upper feed bar assembly 0 along
with
the
wick
to
the presser arm shaft bush
9.
(3)
Secure
the
vertical feed crank shaft 0 using
the
screw.
-41-
