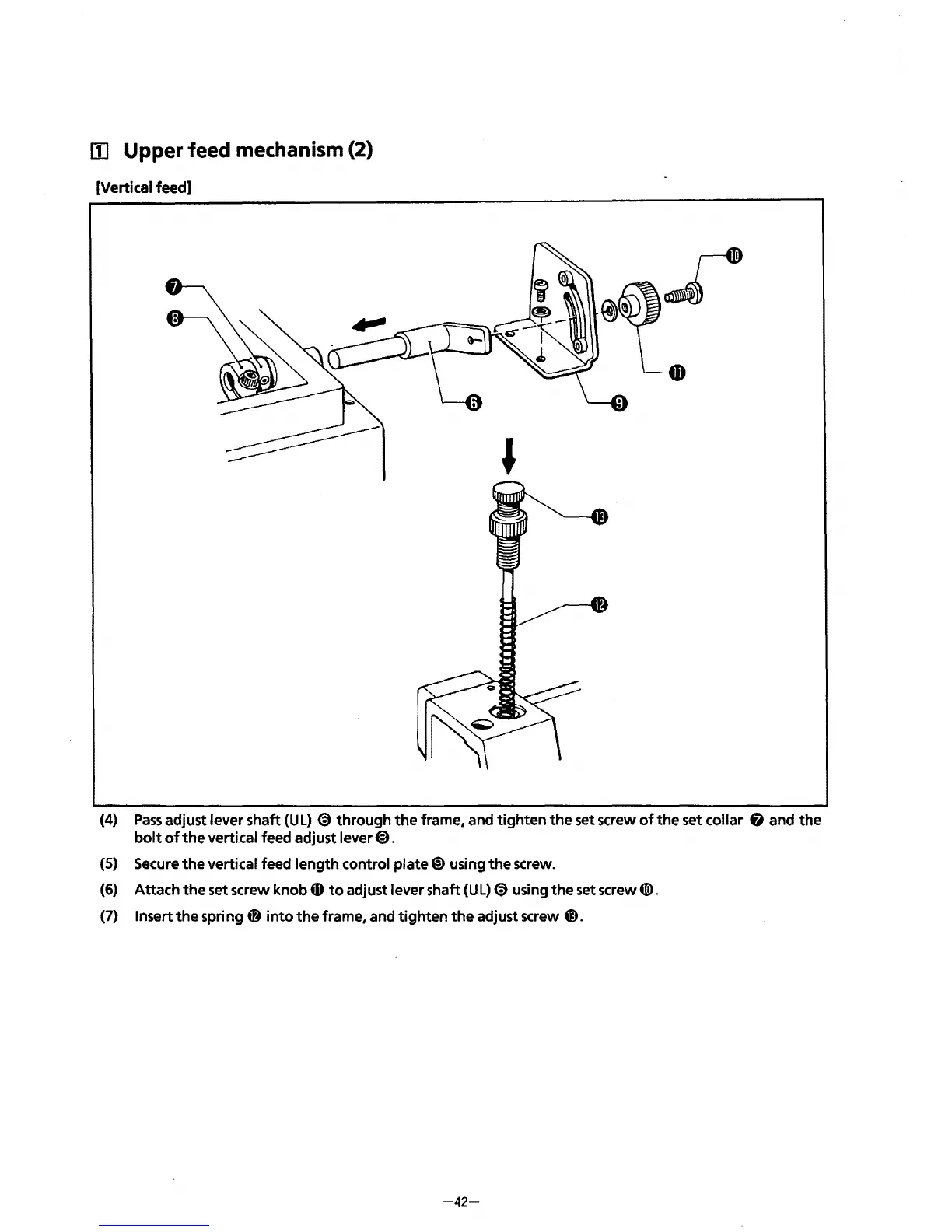

[i] Upper feed
mechanism
(2)
[Vertical feed]
r
(4)
Pass
adjust lever shaft
(U
L)
(i)
through
the
frame, and
tighten
the
set screw
of
the
set collar & and
the
bolt
of
the
vertical feed adjust lever@).
{5) Secure
the
vertical feed length control plate@) using
the
screw.
(6) Attach
the
set screw knob
Q)
to
adjust lever shaft
(UL)
(i) using
the
set screw
4ID.
(7) Insert
the
spring
4»
into
the
frame, and
tighten
the
adjust screw@.
-42-
