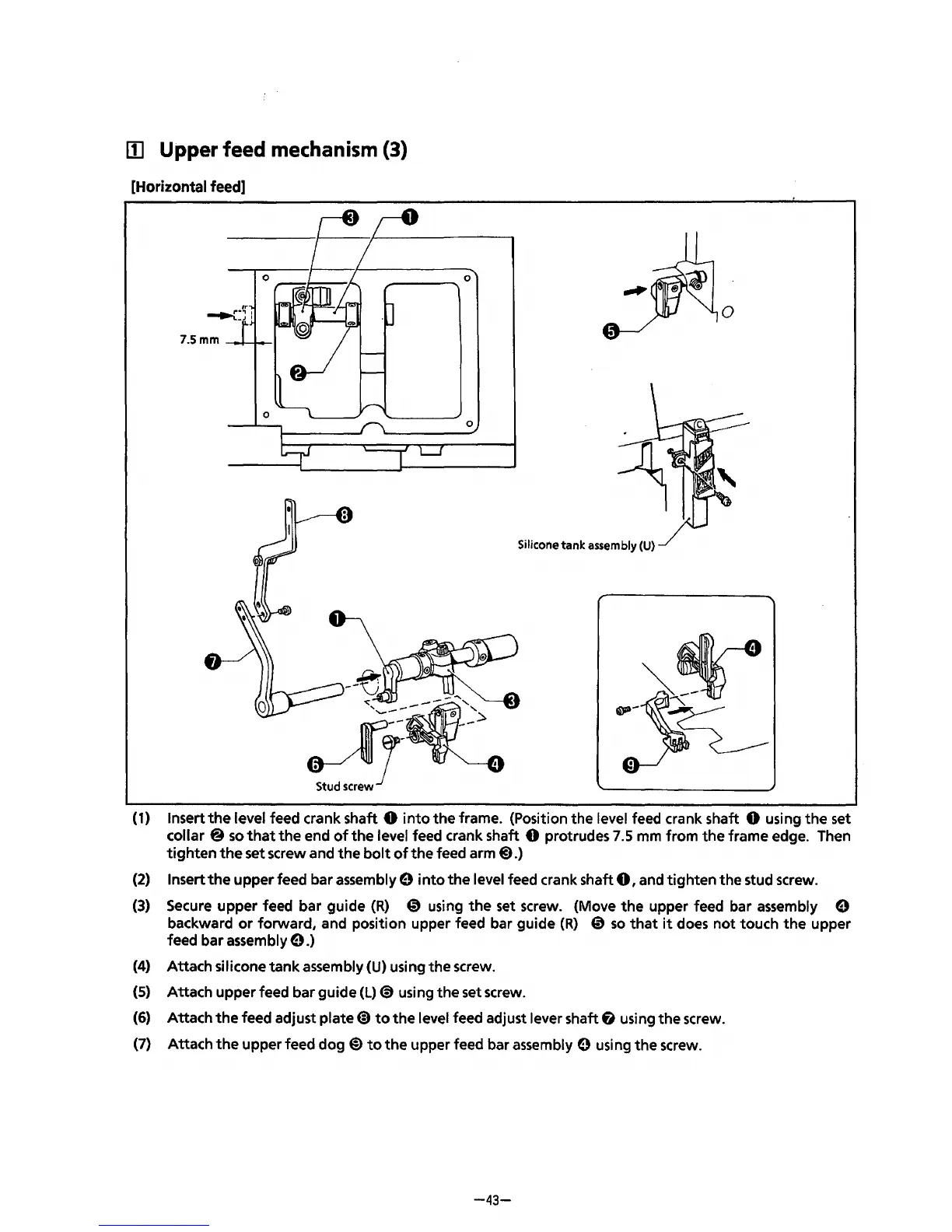

Upper feed
mechanism
(3)
[Horizontal feed]
0
Silicone tank
assembly
(U)
(1)
Insert
the
level feed crank shaft 0
into
the
frame. (Position the level feed crank shaft 0 using
the
set
collar @
so
that
the
end
of
the
level feed crank shaft 0 protrudes
7.5
mm
from
the
frame edge. Then
tighten
the
set screw and
the
bolt
of
the feed arm 8
.)
(2) Insert
the
upper feed bar assembly 0
into
the
level feed crank shaft
0,
and
tighten
the
stud screw.
(3)
Secure upper feed bar guide
(R)
0 using
the
set screw. (Move
the
upper feed bar assembly 0
backward
or
forward, and position upper feed bar guide
(R)
0
so
that
it
does
not
touch
the
upper
feed bar assembly
e.)
{4)
Attach silicone
tank
assembly
{U)
using
the
screw.
{5)
Attach upper feed bar guide
{L)
~
using
the
set screw.
{6)
Attach
the
feed adjust plate@)
to
the
level feed adjust lever shaft & using
the
screw.
{7)
Attach
the
upper feed dog@)
to
the
upper feed bar assembly e using
the
screw.
-43-
