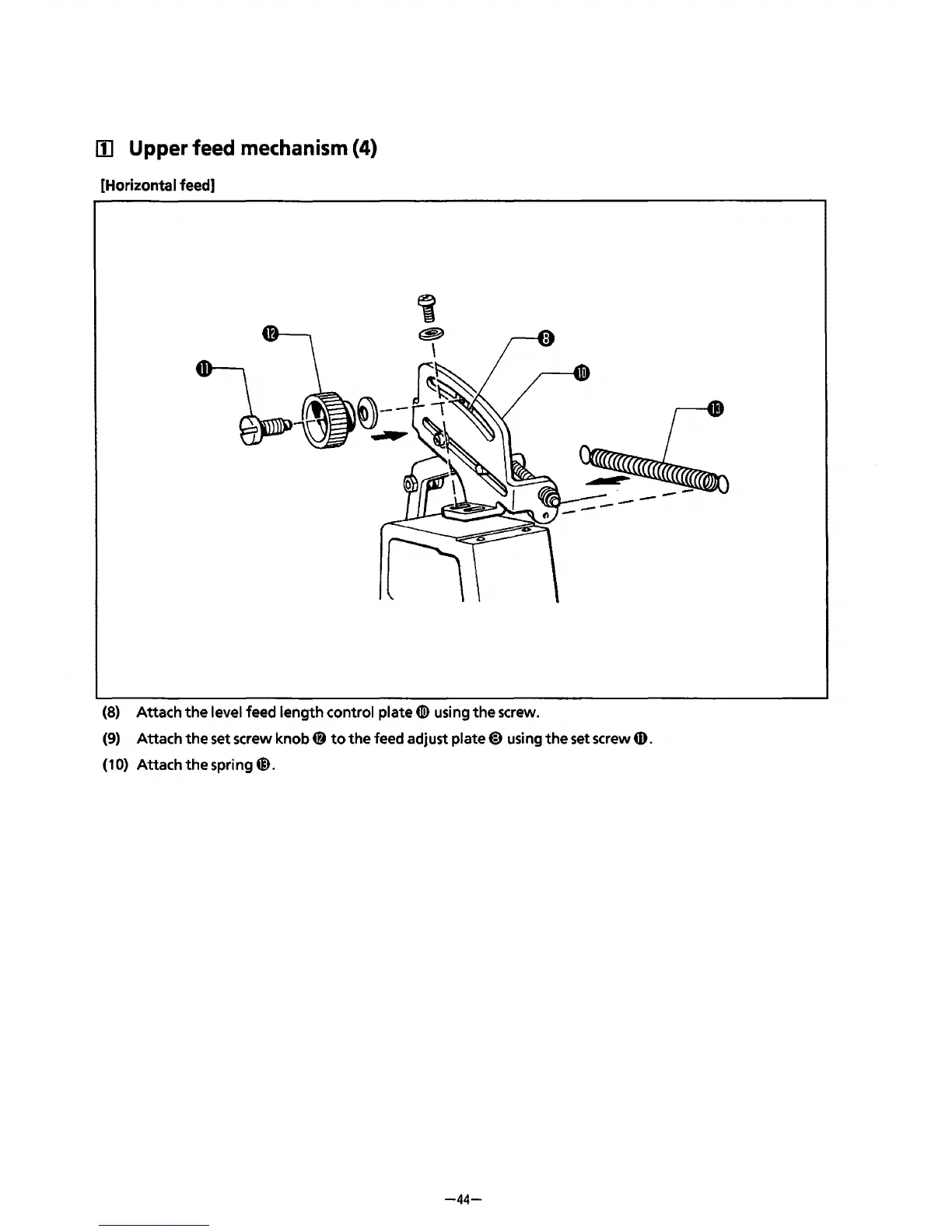

Upper feed mechanism (4)
[Horizontal feed]
(8)
Attach
the
level feed length control plate
CD>
using
the
screw.
(9}
Attach
the
set screw knob 4i
to
the
feed adjust plate@) using
the
set screw
tD.
(10) Attach
the
spring@.
-44-
