Brother EF4-V41 - Adjusting the Clearance between the Cloth Plate and the Needle Plate

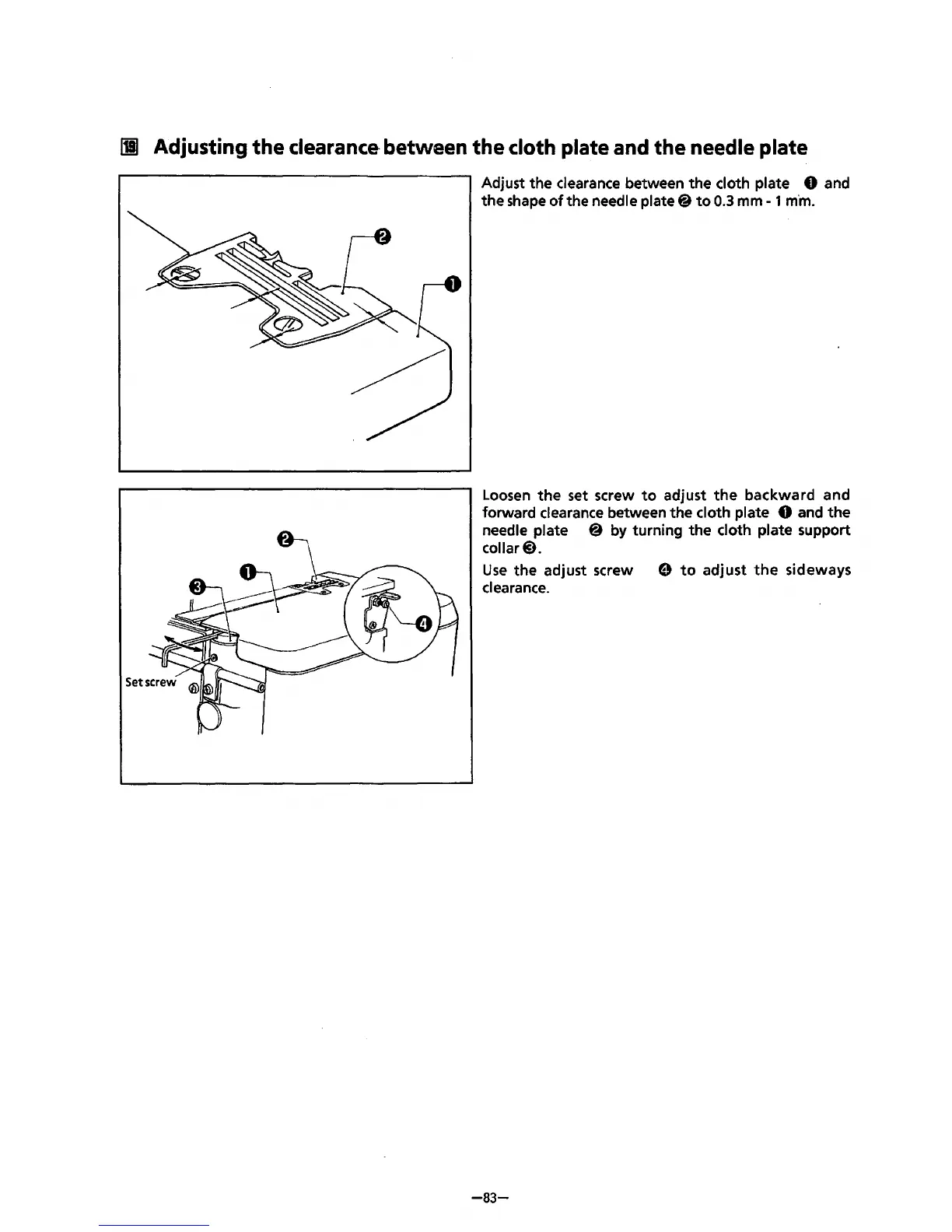

HIJ Adjusting the clearance· between the cloth plate and the needle plate
Adjust the clearance between the cloth plate 0 and
the
shape of the needle plate@ to 0.3 mm - 1 m·m.
Loosen the set screw to adjust the backward and
forward
clearance between the cloth plate 0 and the
needle plate
@ by turning the cloth plate support
collar@.
Use the adjust screw 0 to adjust the sideways
clearance.
-83-
