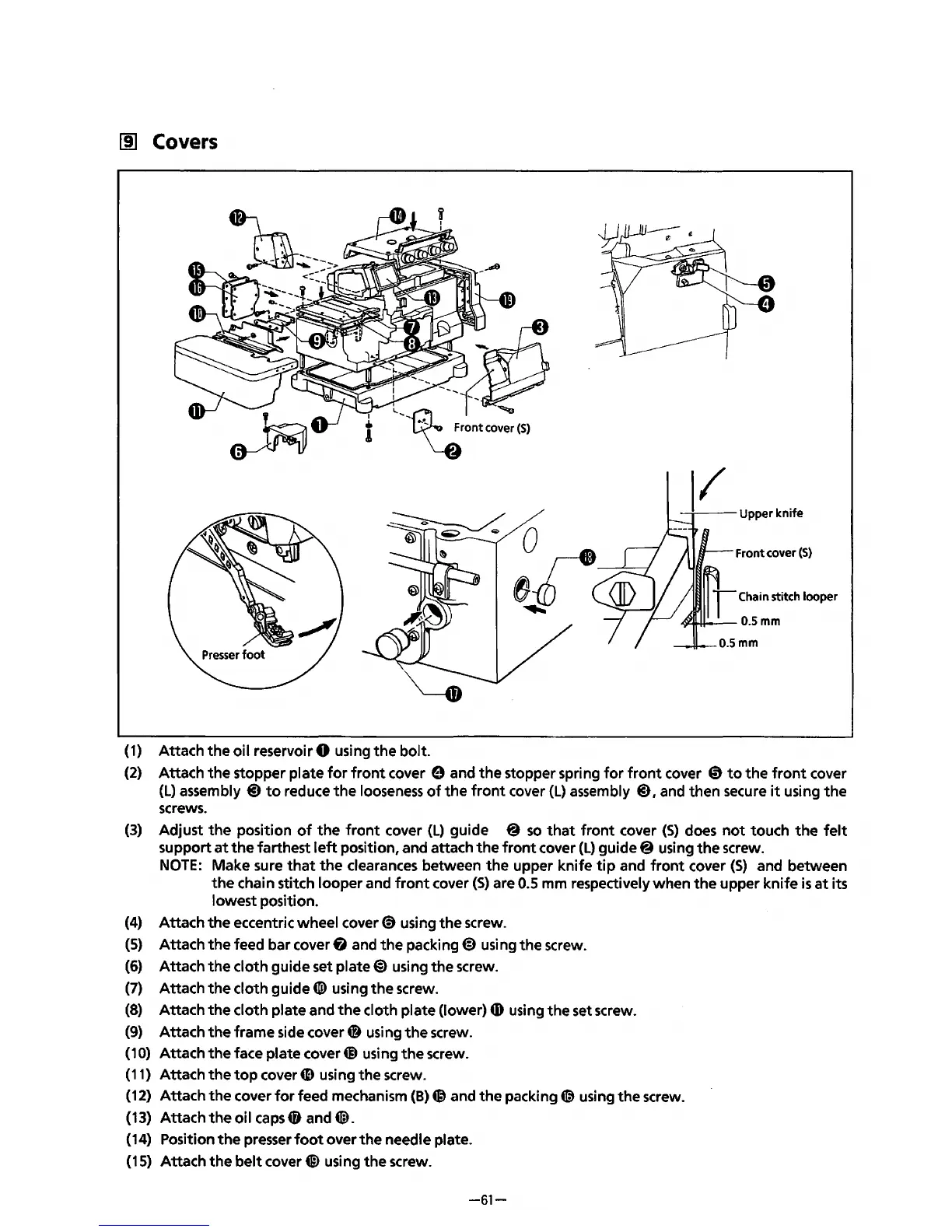

Covers

(1)

Attach the oil reservoir 0 using the bolt.

Front cover

(S)

~Chain

stitch looper

~u---O.Smm

~'--o.smm

(2)

Attach

the

stopper plate

for

front

cover e and

the

stopper spring

for

front

cover @)to the

front

cover

(L)

assembly @)to reduce

the

looseness

the

front

cover

(L)

assembly

@),and then

secure

using

the

screws.

(3)

Adjust

the

position

the

front

cover

(L)

guide @

that

front

cover

(S)

does

not

touch

the

felt

support

the

farthest

left

position, and attach

the

front

cover

(L)

guide@ using

the

screw.

NOTE:

Make sure

that

the

clearances between

the

upper knife

tip

and

front

cover

(S)

and between

the

chain stitch looper and

front

cover

(S)

are

0.5

mm respectively when

the

upper knife

its

lowest position.

(4)

Attach

the

eccentric wheel cover

using the screw.

(5)

Attach

the

feed bar cover & and

the

packing@) using the screw.

(6)

Attach the cloth guide set plate@) using the screw.

(7)

Attach

the

cloth guide

CD)

using

the

screw.

(8)

Attach

the

cloth plate and

the

cloth plate (lower)

using

the

set screw.

(9)

Attach

the

frame side cover 0 using

the

screw.

( 1

Attach

the

face plate cover 4i using

the

screw.

(11)

Attach

the

top

cover

using the screw.

(12)

Attach the cover

for

feed mechanism

(B)~

and

the

packing

CD)

using the screw.

(13)

Attach

the

oil

caps

and@.

(14)

Position

the

presserfootoverthe needle plate.

(15)

Attach the

belt

cover@ using

the

screw.

-61-
