Brother HL-5170DN Quick Setup Guide

5

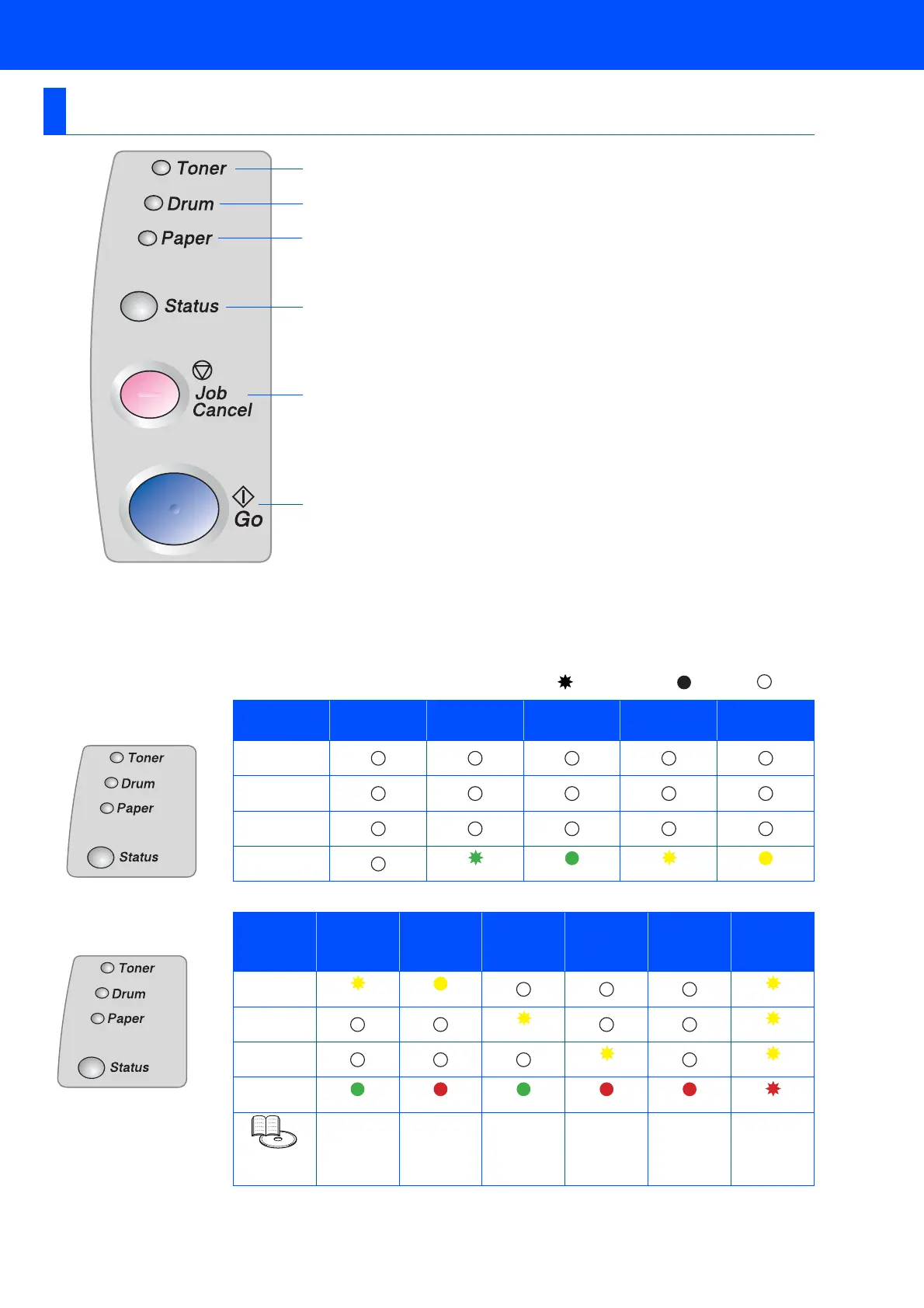

Toner - LED indicates when the Toner is low or empty.
Drum - LED indicates when the Drum is nearing end of life.
Paper - LED indicates when there is a paper jam.
Status - The LED will flash and change color depending on
the printer status.
Job Cancel Button - Will stop and cancel the print operation
in progress.
Go Button - Error recovery / Wake-up
Printer LED Indications
: Blinking : ON : OFF
*1 The LED will blink in a pattern of ON for 2 seconds and then OFF for 3 seconds.
*2 The LED will blink fast.
Control Panel
Printer LED Sleep / OFF
Warming
Up
Ready
Receiving
Data
Data
Remaining
Toner
Drum
Paper
Status
Green Green Yellow Yellow
Printer
LED
Toner
Low
Toner
Empty
Drum
Near End
of Life
No Paper/
Paper
Jam
Cover
Open
Service
Error
Toner
Yellow *1 Yellow Yellow
Drum
Yellow*1 Yellow
Paper
Yellow*2 Yellow
Status
Green Red Green Red Red Red
User's
Guide
Chapter 5 Chapter 5 Chapter 5 Chapter 6 Chapter 6 Chapter 6
1
2
3
4
5
6

Brother HL-5170DN Specifications

General

Color	No
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Maximum print size	210 x 297 mm
Media weight (tray 1)	Standard Tray: 60 – 105g/m². Lower Tray: 60 – 105g/m². Multipurpose Tray: 60 – 161g/m². Duplex 60 – 105g/m²
Maximum ISO A-series paper size	A4
Internal memory	32 MB
Processor model	Fujitsu SPARClite
Built-in processor	Yes
Sound power level (standby)	32 dB
Sound pressure level (printing)	50 dB
Compatibility	PC & Mac
Memory upgrade	0.16 GB
Networking features	TCP/IP, IPX/SPX, AppleTalk, DLC/LLC, Standard Fast Ethernet 10/100BaseTX
Standard input trays	Standard Tray. Multi-purpose tray: 50 sheet
Compatible operating systems	Windows 95/98/Me/NT 4.0/2000/XP Mac OS8.6-9.1, OSX 10.1 or later DOS & Linux compatible
Maximum input capacity	250 sheets
Bundled software	Windows: PCL driver for Windows95/98/Me/NT4.0/2000 and XP BR-Script3 driver for Windows95/98/Me/NT4.0/2000/XP Macintosh: Brother laser driver for Mac OS 8.6-9.2, OS X 10.1-10.2 BR-Script3 driver for Mac OS 8.6-9.2, OS X 10.1-10.2 Linux: GDI printer driver BR-Script 3 printer driver Interactive help (on-screen guidelines using moving pictures) Driver Deployment Wizard – guides administrators through the steps taken to install a Brother network printer onto a networked PC
Display	-

Weight and Dimensions

Dimensions (WxDxH)	382 x 401 x 252 mm
