(12) Disconnect the stack sensor harness from the main PCB ASSY, and release it from the
securing fixtures.
(13) Remove the four taptite bind B M4x12 screws.
(14) Release the hook A first, and then release the hook B. Remove the top cover ASSY.

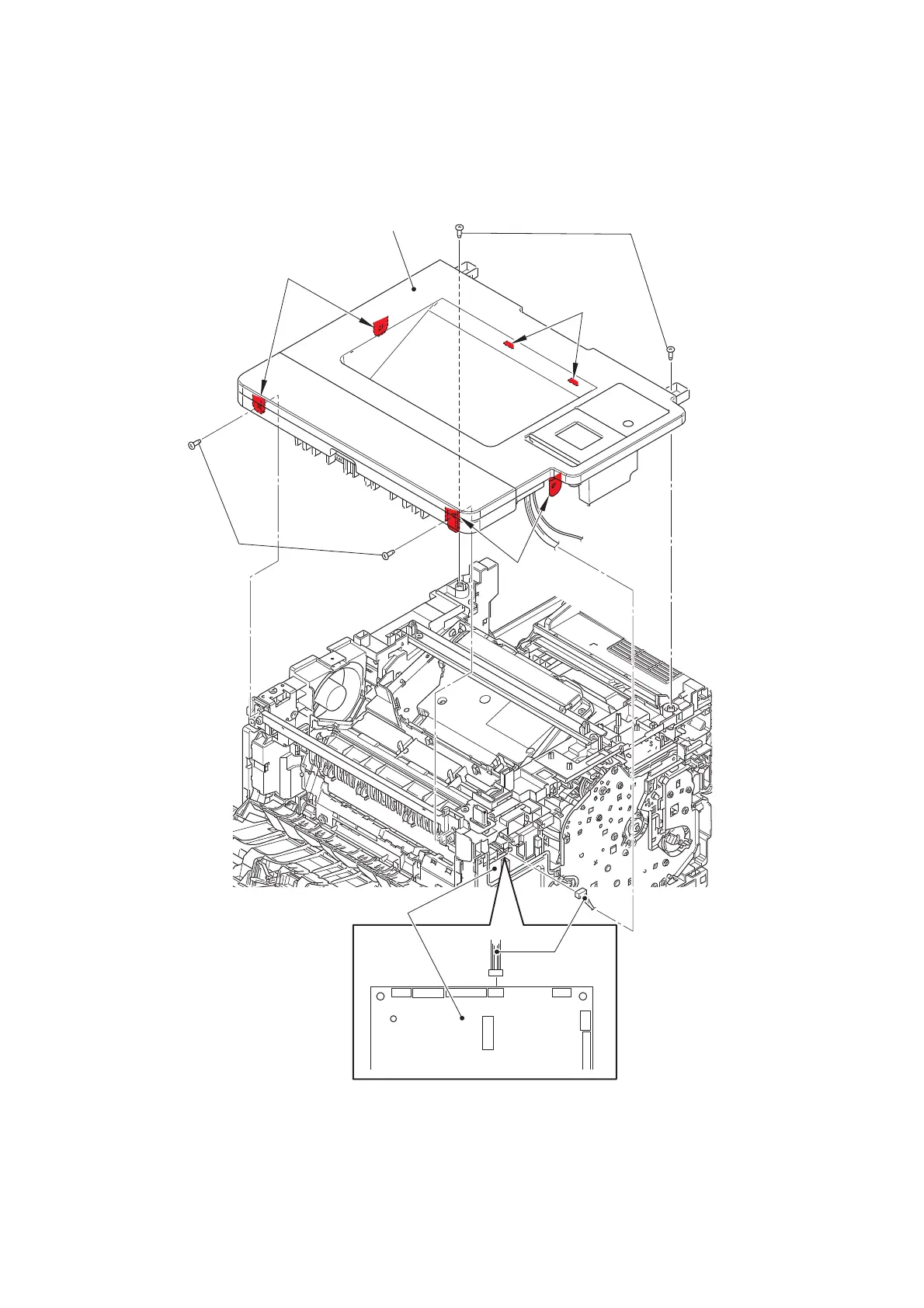

Fig. 7-15
Harness routing: Refer to “1. Left side of the machine (Touch panel models)”.
Top cover ASSY
Taptite bind B M4x12 (black)
Taptite bind
B M4x12
Hooks B
Hooks B
Hooks A
Stack sensor
harness
Main PCB ASSY
