App. 3-3

Confidential

(9) Repeat steps (6) to (8) three times. Installation is completed.

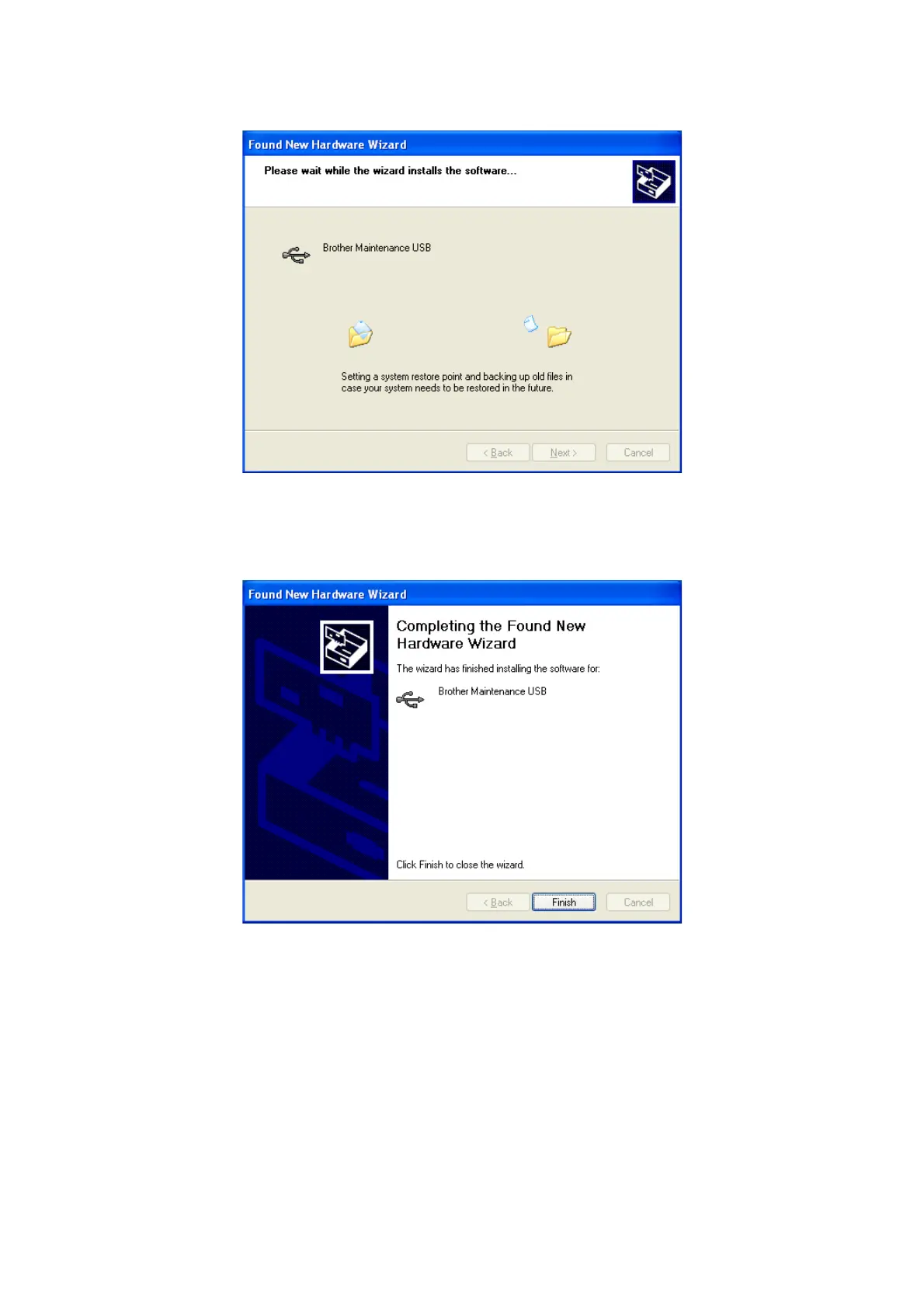

(10) If the Brother Maintenance USB Printer driver is successfully installed, the following

message screen appears. Click [Finish] to return.
