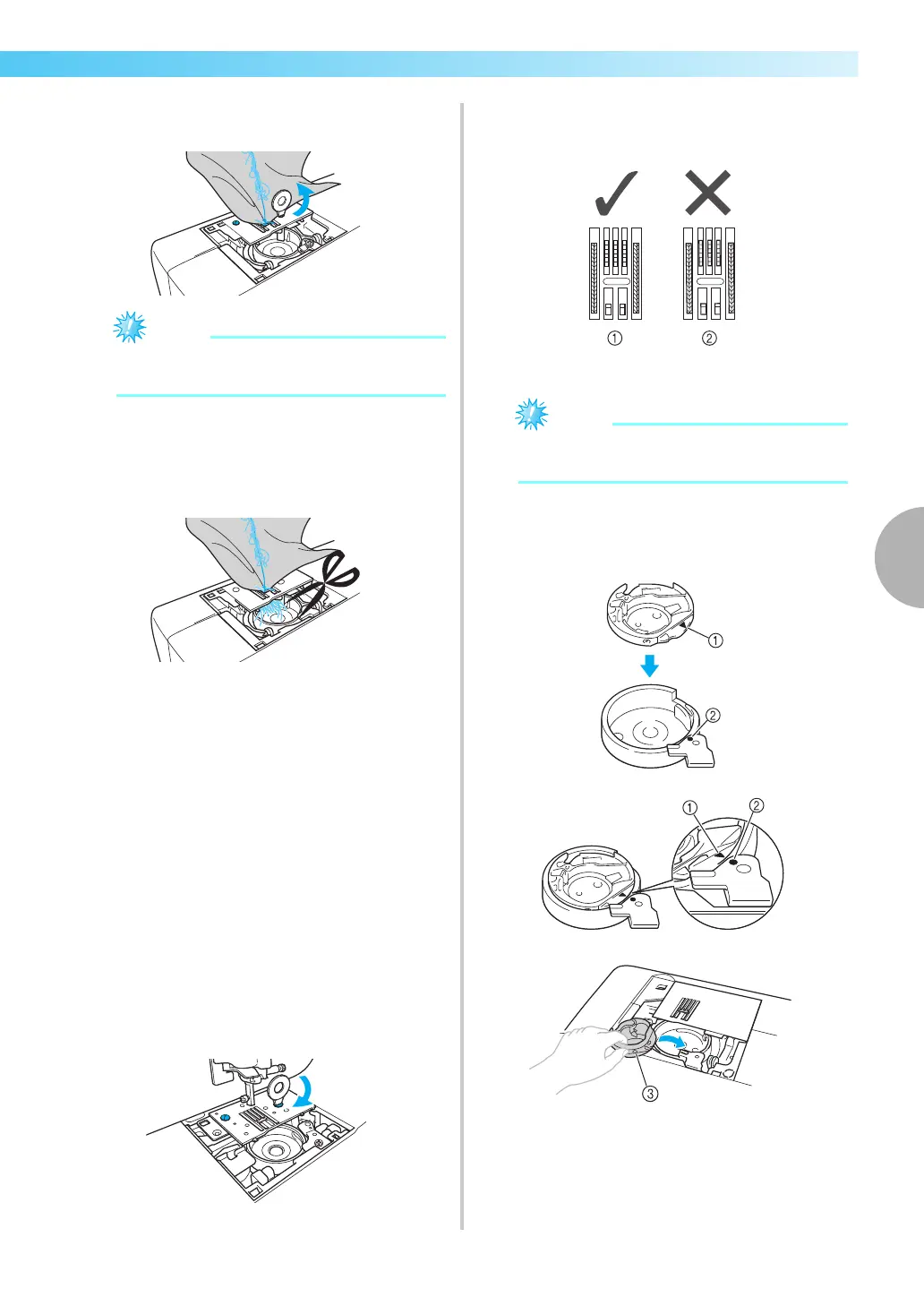

Use the enclosed disc-shaped screwdriver to
loosen the two screws on the needle plate.
z Be careful not to drop the removed screws in
the machine.
k
Slightly lift up the needle plate, cut any tangled
threads, and then remove the needle plate.
Remove the fabric and threads from the needle
plate.
If the fabric cannot be removed, even after
completing these steps, contact your nearest
authorized service center.
l
Remove any threads in the race and around
the feed dogs.
m
Turn the handwheel to raise the feed dogs.
n
Align the two screw holes in the needle plate
with the two holes at the needle plate
mounting base, and then fit the needle plate
onto the machine.
o
Lightly finger-tighten the screw on the right
side of the needle plate. Then, use the disc-
shaped screwdriver to firmly tighten the screw
on the left side. Finally, firmly tighten the
screw on the right side.
Turn the handwheel to check that the feed dogs
move smoothly and do not contact the edges of
the slots in the needle plate.
a Correct position of feed dogs
b Incorrect position of feed dogs
z Be careful not to drop the removed screws in
the machine.
p
Insert the bobbin case so that the S mark on
the bobbin case aligns with the z mark on
machine as shown below.
Align the S and z marks.
a S mark
b z mark
c Bobbin case
• Make sure that the indicated points are
aligned before installing the bobbin case.
