Brother JS1700 User Manual

Application of
Assembly
3 - 48
Feed unit
Application o
f
Assembly
Application of
Assembly

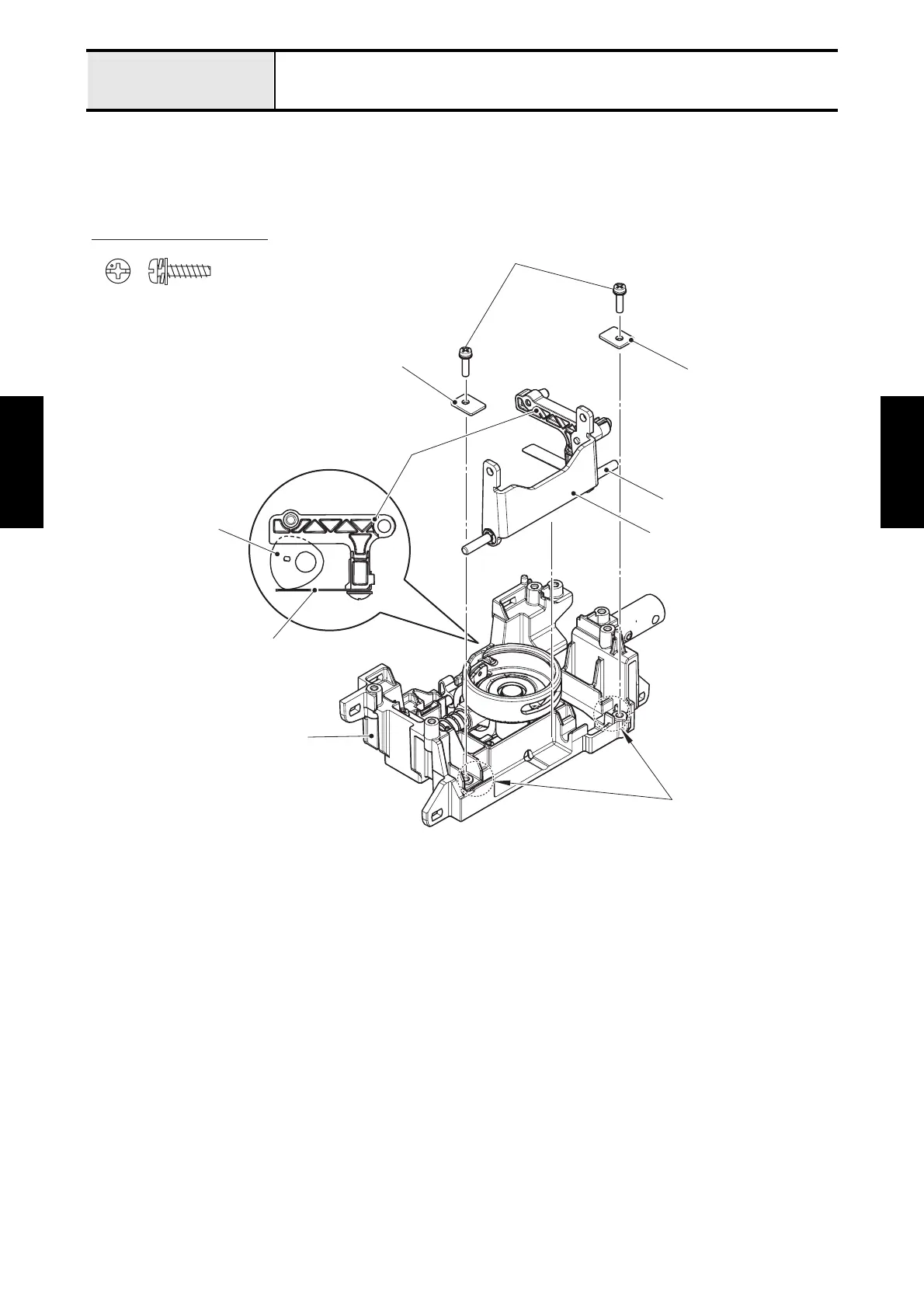

8. Set the horizontal feed shaft of feed arm A sub assy to the two mounting positions of feed holder. And
set the two horizontal feed shaft pressers to the two mounting positions of feed holder, and secure
them with the two screws (taptite, pan P (S/P W) 3X12).
*Key point
• Confirm that there is cam of lower shaft A sub assy between feed supporting plate and feed arm B assy.
Taptite, Pan P (S/P W) 3X12
Mounting positions
Cam of lower shaft A
sub assy
Feed supporting plate
Horizontal feed shaft presser
Horizontal feed shaft presser
Taptite, pan P (S/P W) 3X12
Horizontal feed shaft
Feed holder
Feed arm B assy
Feed arm A sub assy
