Brother JS1700 User Manual

Application of
Assembly
3 - 49
Feed unit
Application o
f
Assembly
Application of
Assembly

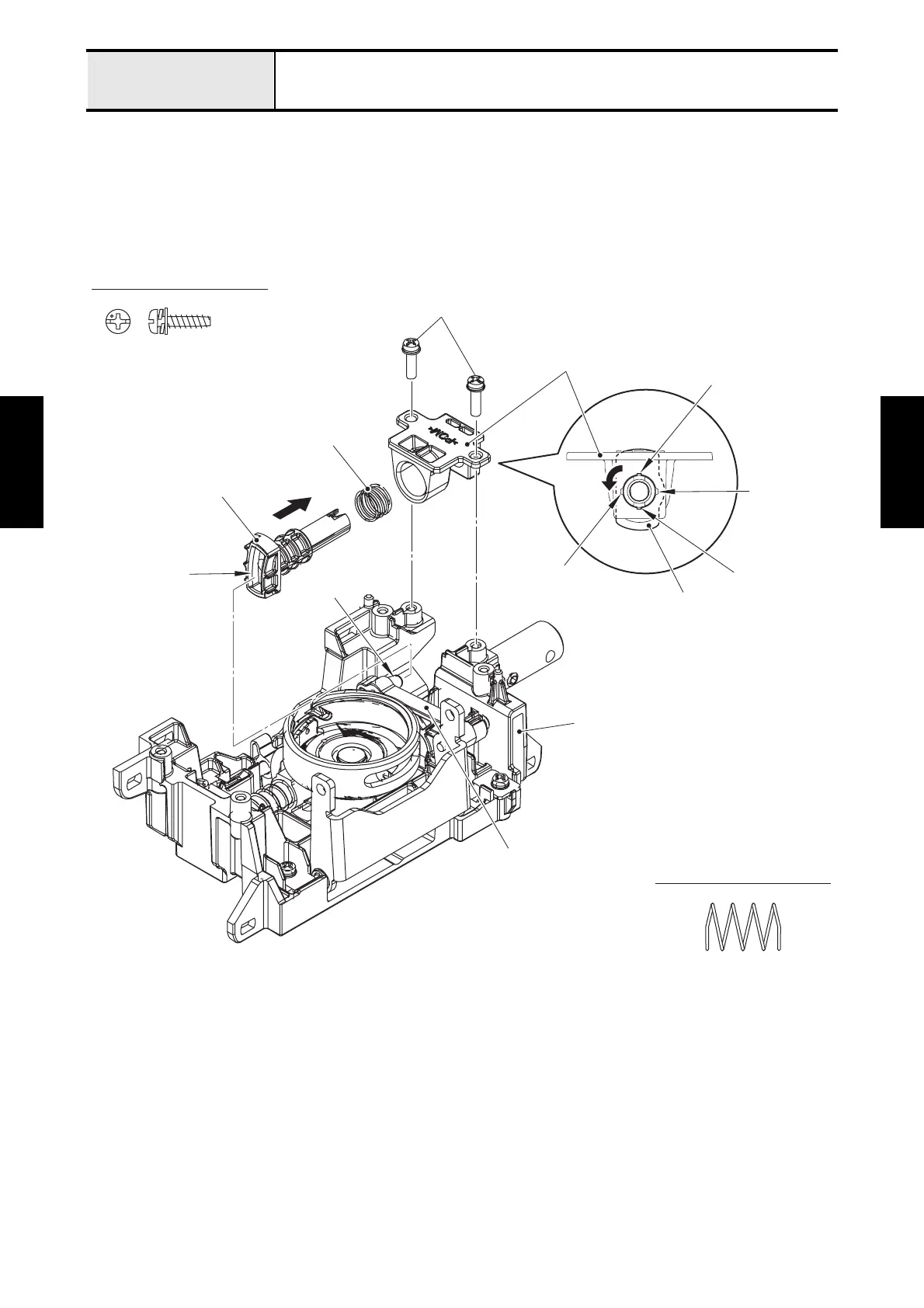

9. Set the feed adjuster to the feed adjuster spring (XF5127) and the feed adjuster holder. And align the
two tabs of feed adjuster with the two grooves of feed adjuster holder, and turn the feed adjuster 90
degrees while pushing it in the direction of the arrow and lock it.
*Key point
• Confirm that the feed adjuster is attached in the direction of the illustration below.
10.Insert the shaft of feed arm B assy into the groove of feed adjuster, and set the feed adjuster holder to
the feed holder, and secure it with the two screws (taptite, pan P (S/P W) 3X12).
Taptite, Pan P (S/P W) 3X12
Feed adjuster spring (XF5127)
Feed holder
Feed adjuster
Groove
Feed arm B assy
Shaft
Feed adjuster spring (XF5127)
Taptite, pan P (S/P W) 3X12
Feed adjuster holder
Tab
Tab
Feed adjuster
Groove
Groove
