Application of
Assembly
3 - 50
Feed unit
Application o
f
Assembly
Application of
Assembly

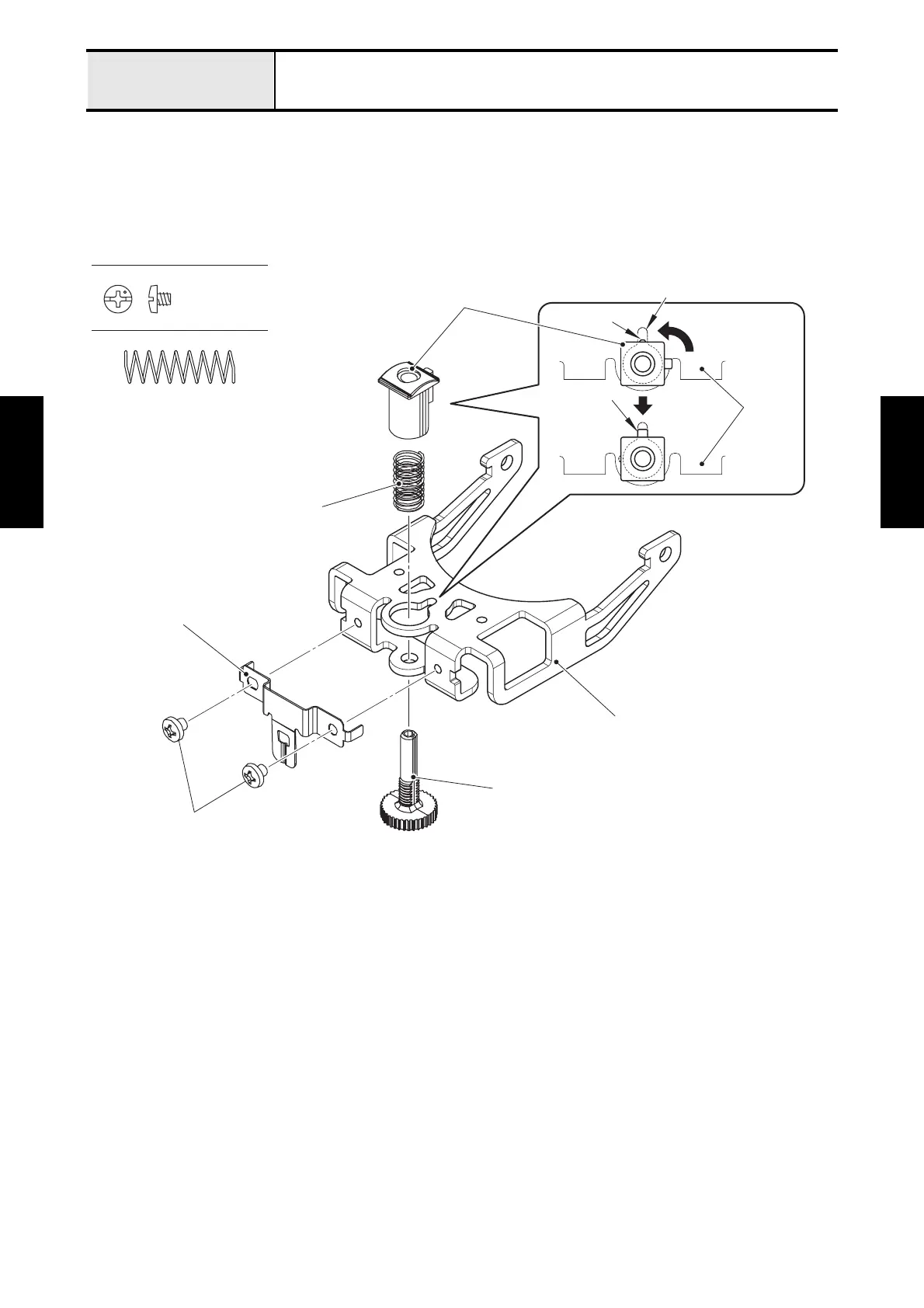

11.Tighten the vertical adjuster screw to the feed stand. And set the feed stand spring (XF3457) to the
vertical adjuster screw.
12.Align the tab A of feed stand spring cap with the notch part of feed stand, and turn the feed stand spring
cap 90 degrees while pushing it.
13.Set the vertical feed spring plate to the feed stand, and secure it with the two screws (screw, bind
M3X3).
Screw, Bind M3X3
Feed stand spring (XF3457)
Feed stand
Feed stand spring cap
Feed stand spring
(XF3457)
Vertical feed spring plate
Screw, bind M3X3
Vertical adjuster screw
Tab A
Tab B
90°
Feed
stand
Notch part
