Application of
Disassembly
3 - 16
Feed unit
Application o
f
Disassembly
Application of
Disassembly

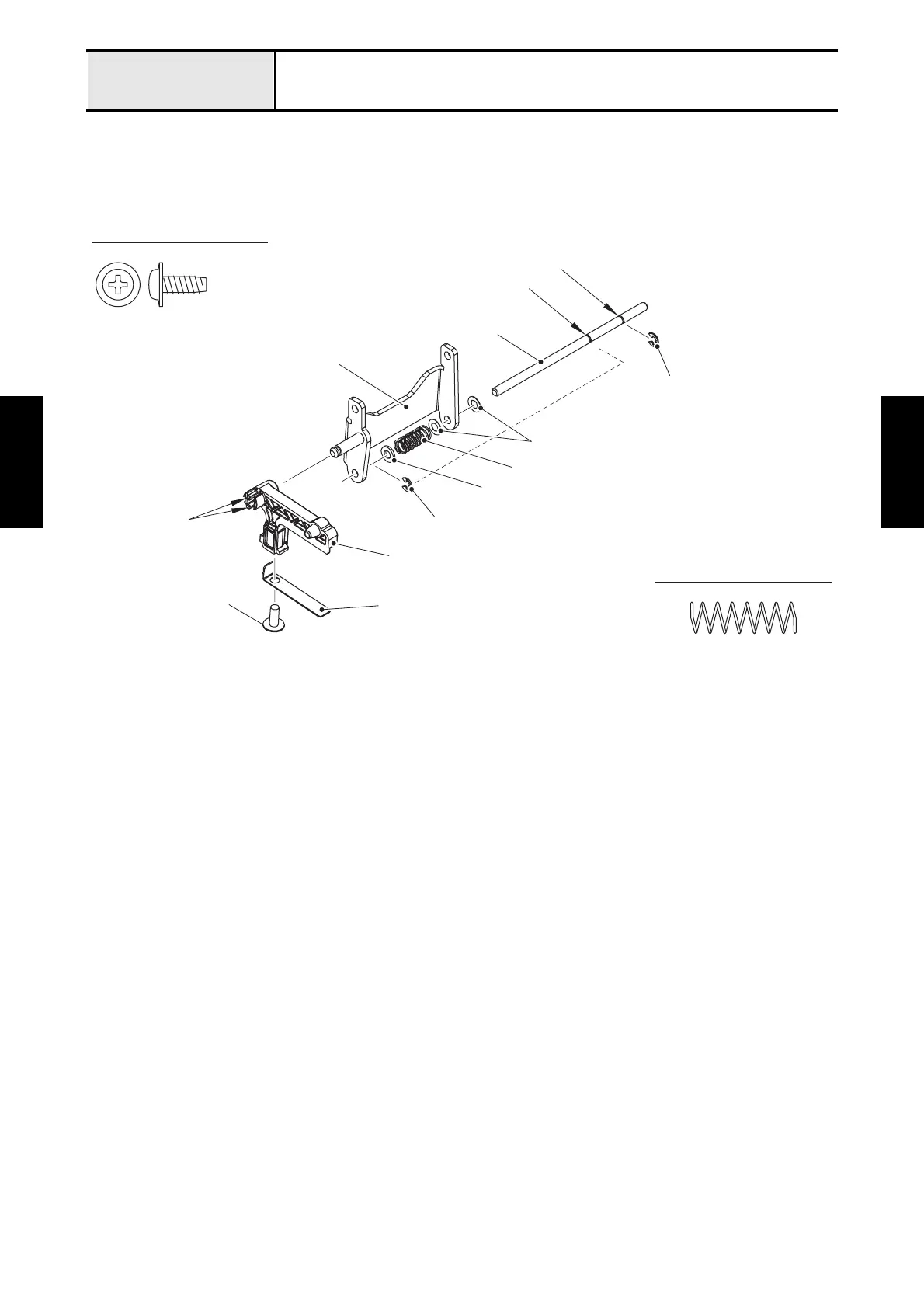

15.Release the two hooks to pull out the feed arm B assy from the feed arm A sub assy. And remove the
screw (taptite, cup B M4X10) to remove the feed supporting plate from the feed arm B assy.
16.Remove the retaining ring E3 from the horizontal feed shaft, and pull out the horizontal feed shaft to
remove the horizontal feed shaft washer, the horizontal feed shaft spring (XF3451), the two polyester
sliders from the feed arm A sub assy. And remove the retaining ring E3 from the horizontal feed shaft.
Taptite, Cup B M4X10
Horizontal feed shaft spring (XF3451)
Groove A
Retaining ring E3
Groove B
Horizontal feed shaft
Polyester sliders
Horizontal feed shaft spring (XF3451)
Horizontal feed shaft washer
Feed arm A sub assy
Retaining ring E3
Feed arm B assy
Feed supporting plate
Hooks
Taptite, cup B M4X10
