Brother JS1700 User Manual

Application of
Disassembly
3 - 17
Feed unit
Application o
f
Disassembly
Application of
Disassembly

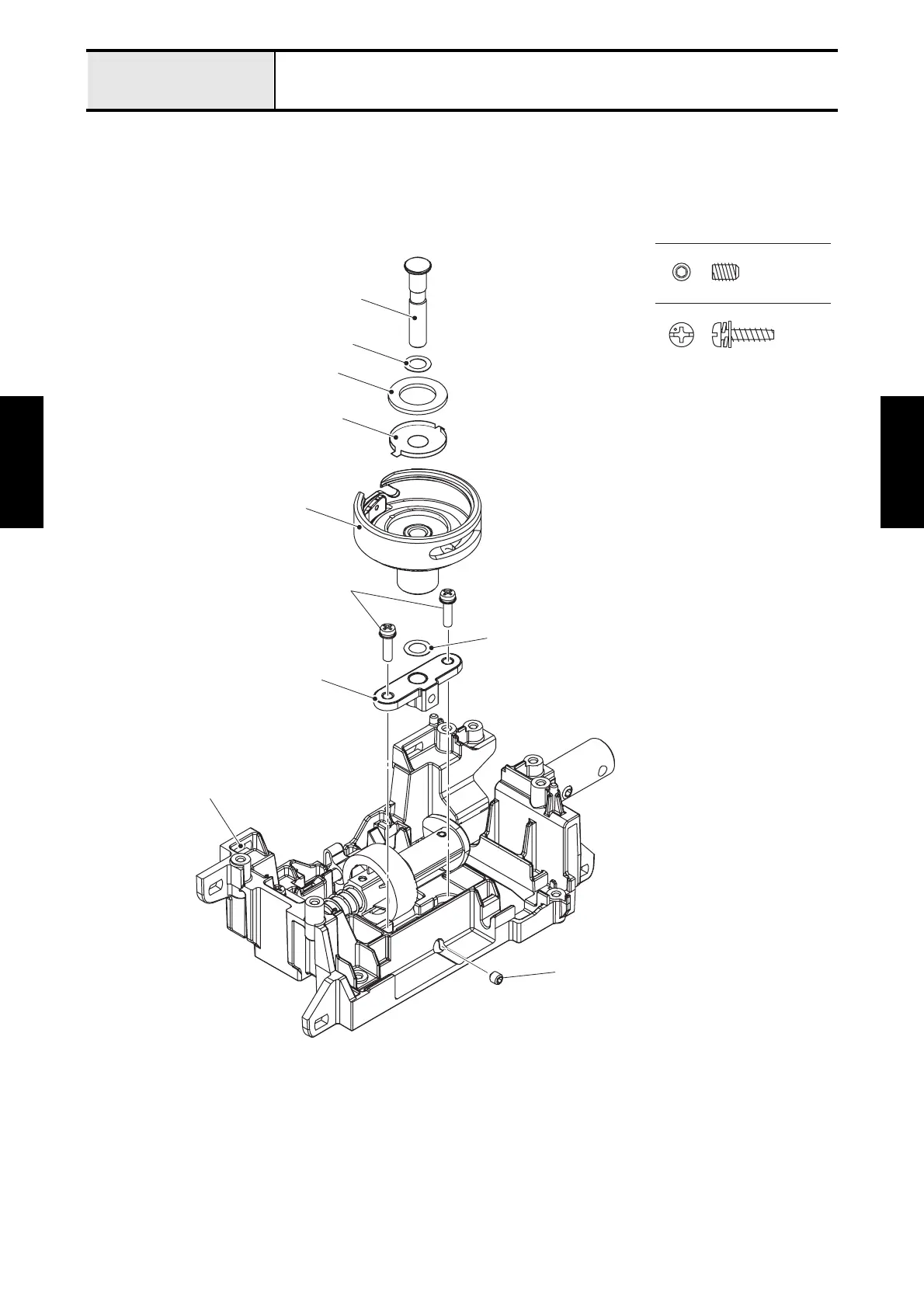

17.Remove the screw (set screw, socket (CP) M4X6) from the shaft supporter. And pull out the outer
rotary hook shaft to remove the washer, the magnet, the washer, the outer rotary hook assy and the
washer,thrust from the shaft supporter.
18.Remove the two screws (taptite, pan P (S/P W) 3X12) to remove the shaft supporter from the feed
holder.
Set Screw, Socket (CP) M4X6
Hex wrench 2.0 mm
Taptite, Pan P (S/P W) 3X12
Outer rotary hook shaft
Washer
Magnet
Washer
Outer rotary hook assy
Taptite, pan P (S/P W) 3X12
Wahser,thrust
Shaft supporter
Feed holder
Set screw, socket (CP) M4X6
