Application of
Disassembly
3 - 28
Bobbin winder, Upper shaft, Needle-Presser module
Application o
f
Disassembly
Application of
Disassembly

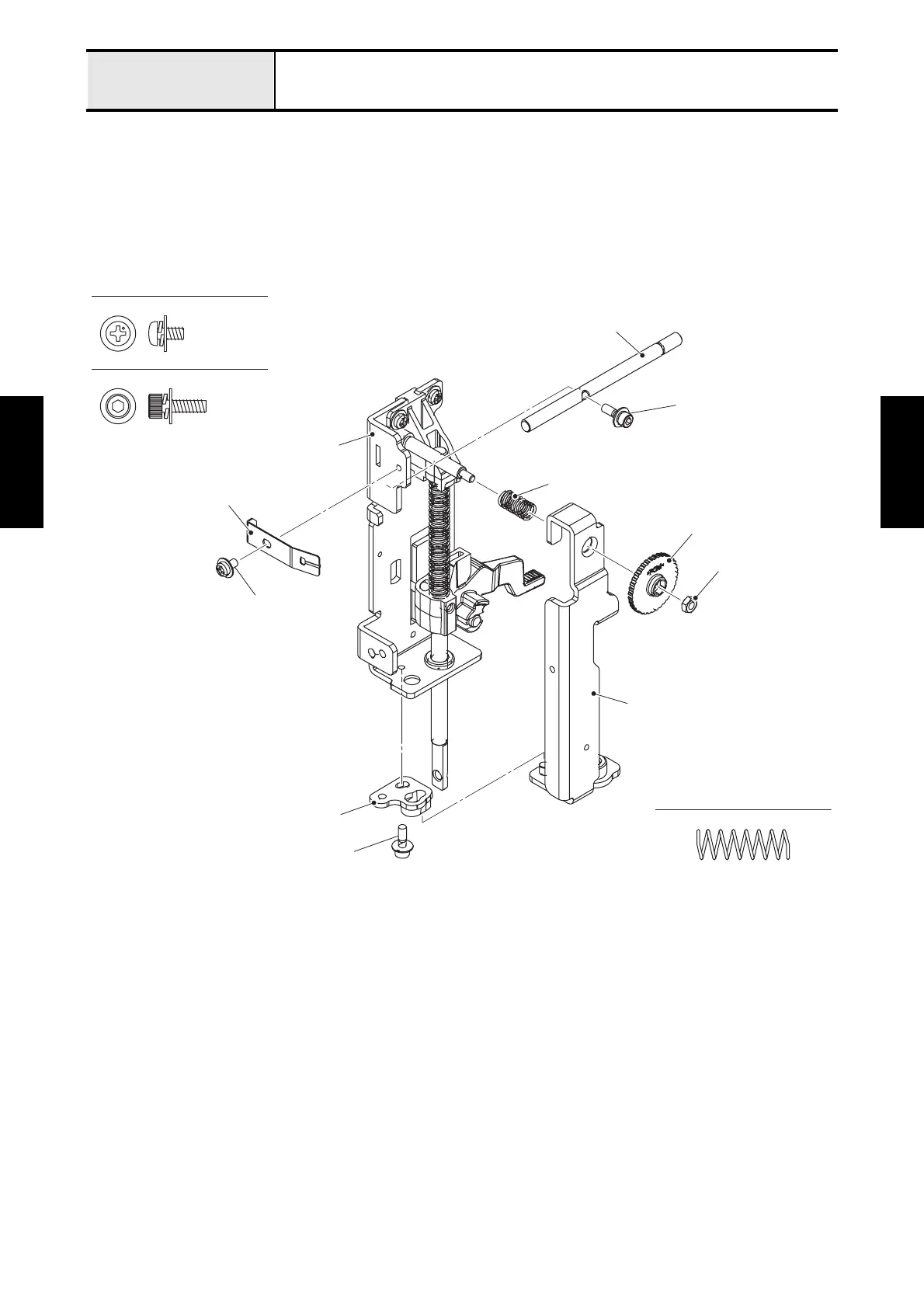

7. Remove the screw (screw, pan (S/P washer) M3X6) to remove the spring plate from the base holder
assy.
8. Remove the nut 2 M3 and needle bar supporter presser to remove the needle bar supporter assy from
the base holder assy.
9. Remove the needle bar supporter spring (XF3423) from the base holder assy.
10.Remove the screw (screw 3X10) to remove the needle bar supporter guide from the base holder assy.
11.Remove the screw (screw 3X10) to remove the shaft from the base holder assy.
Screw, Pan (S/P washer) M3X6
Screw 3X10
Hex wrench 2.5 mm
Needle bar supporter spring (XF3423)
Screw 3X10
Shaft
Screw 3X10
Needle bar supporter guide
Needle bar supporter presser
Nut 2 M3
Needle bar supporter spring
(XF3423)
Screw, pan (S/P washer) M3X6
Spring plate
Needle bar supporter assy
Base holder assy
