Brother JS1700 User Manual

Application of
Disassembly
3 - 29
Bobbin winder, Upper shaft, Needle-Presser module
Application o
f
Disassembly
Application of
Disassembly

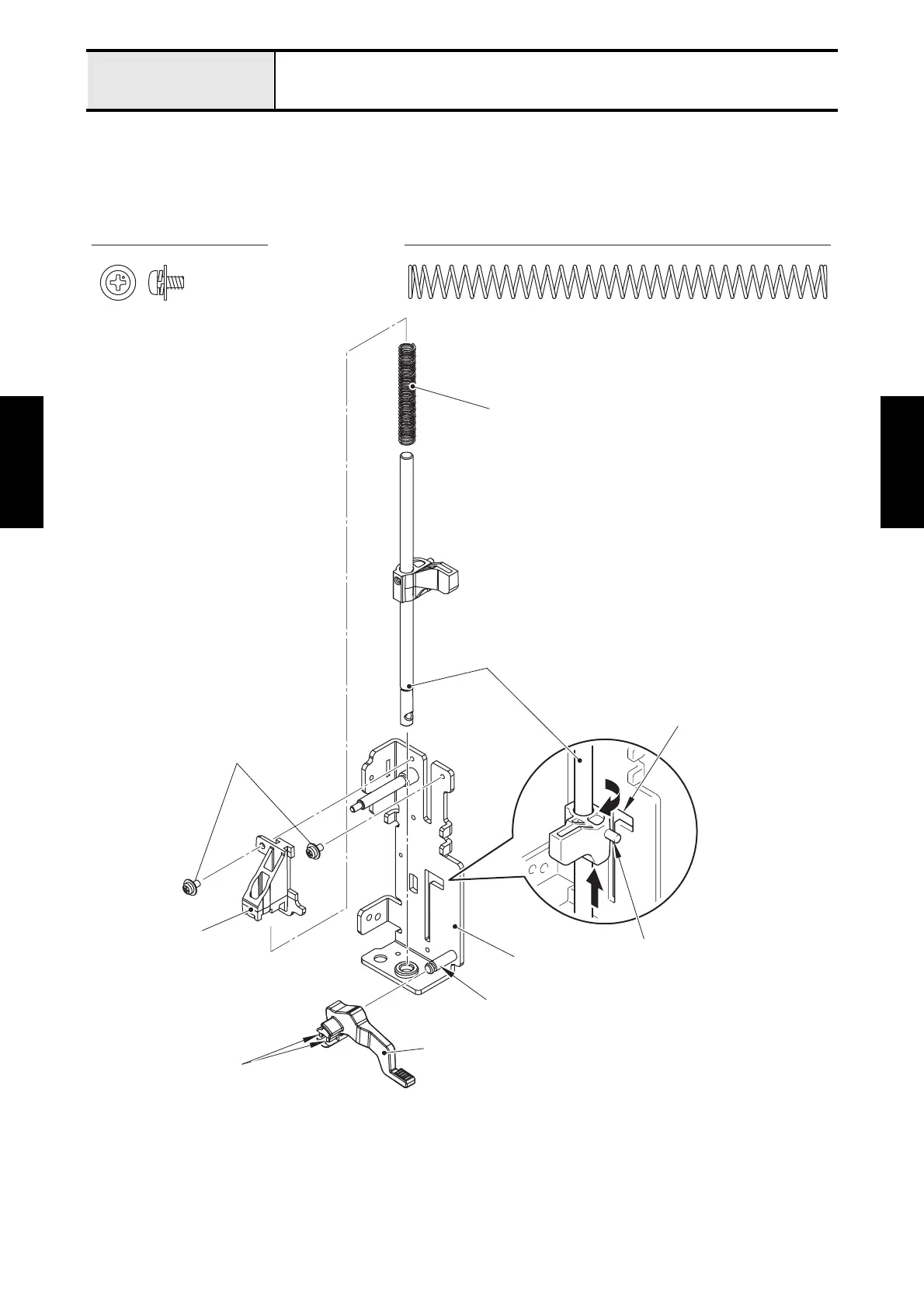

12.Remove the two screws (screw, pan (S/P washer) M3X6), and then pull out the presser bar guide and
the spring (XC4900) from the presser bar sub assy.
13.Slide the presser bar sub assy until the presser bar clamp pin align with the notch part, and turn it to the
direction of the arrow 90 degrees. And pull out the presser bar sub assy from the base holder assy.
14.Release the two hooks to pull out the presser foot lifter from the base holder assy.
Screw, Pan (S/P washer) M3X6
Spring (XC4900)
Spring (XC4900)
Presser bar sub assy
Base holder assy
Shaft
Hooks
Screw, pan (S/P washer) M3X6
Presser bar guide
Notch part
Presser bar clamp pin
Presser foot lifter
