Brother MFC-1810 Service Manual

 
ConfidentialConfidential

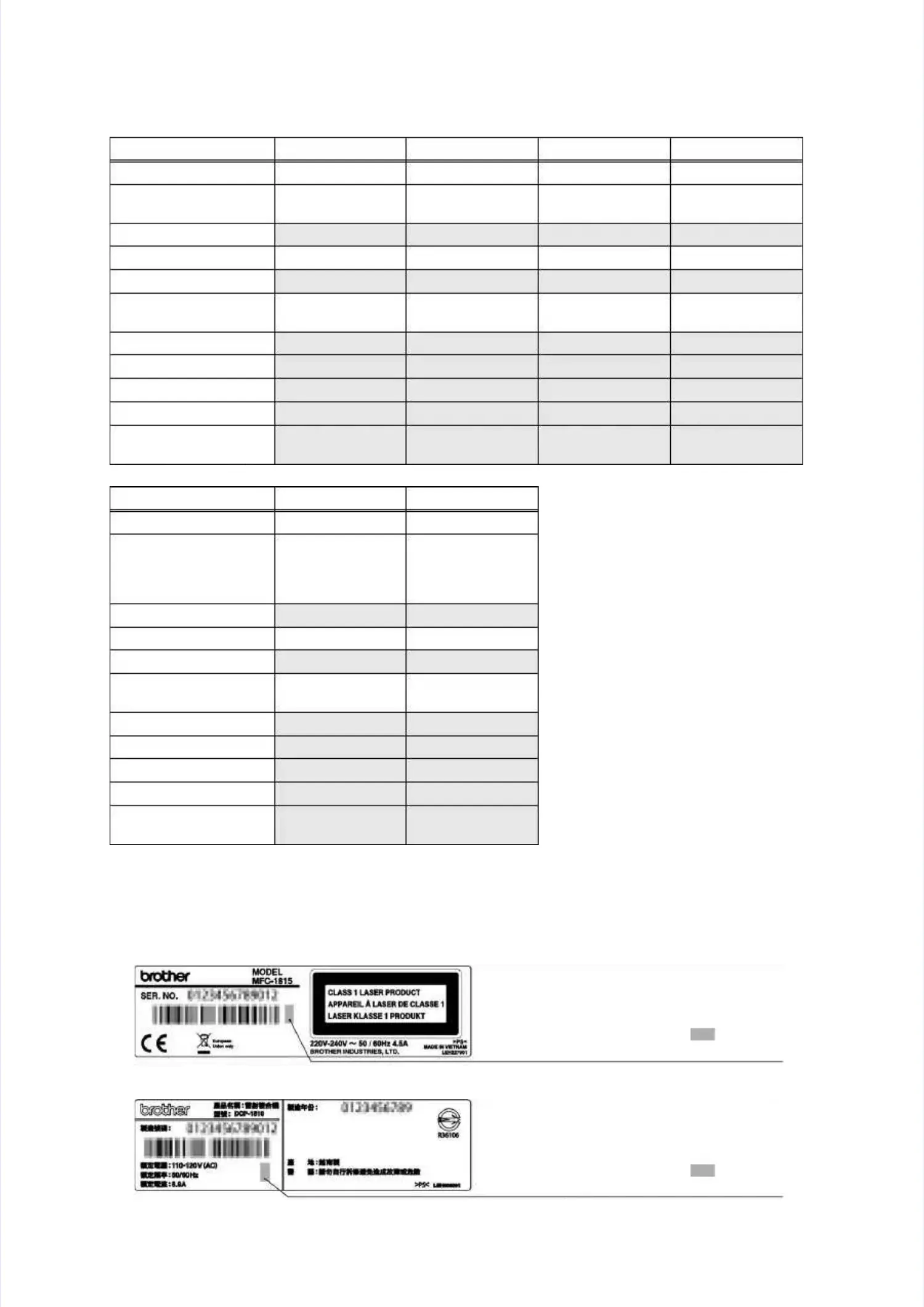

The function comparative table below is for models described in this Service Manual.The function comparative table below is for models described in this Service Manual.
There are two types of models with a fan and without a fan.There are two types of models with a fan and without a fan.
A "F" framed in rectangular is affixed to the rating label on the model with a fan, can be used toA "F" framed in rectangular is affixed to the rating label on the model with a fan, can be used to
distinguish between models with a fan and those without.distinguish between models with a fan and those without.
The image at the bottom shows the label on the models with fans.The image at the bottom shows the label on the models with fans.
DDCCPP--11551100 DDCCPP--11551111 DDCCPP--11551122 DDCCPP--11551144
FFAANN WWiitthh//WWiitthhoouutt WWiitthh//WWiitthhoouutt WWiitthh//WWiitthhoouutt WWiitthh
LCDLCD
16 characters16 characters
x 2 linesx 2 lines
16 characters16 characters
x 2 linesx 2 lines
16 characters16 characters
x 2 linesx 2 lines
16 characters16 characters
x 2 linesx 2 lines
WWiirreedd//WWiirreelleesss s LLAANN NN//AA NN//AA NN//AA NN//AA
SSccaannnneerr OOnnee--ssiiddeedd OOnnee--ssiiddeedd OOnnee--ssiiddeedd OOnnee--ssiiddeedd
ADFADF N/AN/A N/AN/A N/AN/A N/AN/A
CapacityCapacity
(Paper tray)(Paper tray)
11550 0 sshheeeettss 11550 0 sshheeeettss 11550 0 sshheeeettss 11550 0 sshheeeettss
SSppeeaakkeerr NN//AA NN//AA NN//AA NN//AA
NNuummeerriic c kkeey y ppaadd NN//AA NN//AA NN//AA NN//AA
FFAAXX NN//AA NN//AA NN//AA NN//AA
HHaannddsseett NN//AA NN//AA NN//AA NN//AA
Paper smaller thanPaper smaller than
A4/letter sizeA4/letter size
NN//AA NN//AA NN//AA NN//AA
DDCCPP--11551188 DDCCPP--11551199
FFAANN WWiitthhoouutt WWiitthh
LCDLCD
10 characters10 characters
x 2 lines (2byte)x 2 lines (2byte)
20 characters20 characters
x 2 lines (1byte)x 2 lines (1byte)
10 characters10 characters
x 2 lines (2byte)x 2 lines (2byte)
20 characters20 characters
x 2 lines (1byte)x 2 lines (1byte)
WWiirreedd//WWiirreelleesss s LLAANN NN//AA NN//AA
SSccaannnneerr OOnnee--ssiiddeedd OOnnee--ssiiddeedd
ADFADF N/AN/A N/AN/A
CapacityCapacity
(Paper tray)(Paper tray)
11550 0 sshheeeettss 11550 0 sshheeeettss
SSppeeaakkeerr NN//AA NN//AA
NNuummeerriic c kkeey y ppaadd NN//AA NN//AA
FFAAXX NN//AA NN//AA
HHaannddsseett NN//AA NN//AA
Paper smaller thanPaper smaller than
A4/letter sizeA4/letter size
NN//AA NN//AA
<Except for DCP-1510 for Taiwan, MFC-1815 for Taiwan><Except for DCP-1510 for Taiwan, MFC-1815 for Taiwan>
"F" should be framed in rectangular with fan"F" should be framed in rectangular with fan
specification specification to to be be in in printing printing A A ..
It should be printed by It should be printed by production dept.production dept.
<DCP-1510 for Taiwan, MFC-1815 for Taiwan><DCP-1510 for Taiwan, MFC-1815 for Taiwan>
"F" should be framed in rectangular with fan"F" should be framed in rectangular with fan
specification specification to to be be in in printing printing A A ..
It should be printed by It should be printed by production dept.production dept.

Brother MFC-1810 Specifications

General

Duplex printing	No
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Copier resize	25 - 400 %
PC free copying	Yes
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4
Copy speed (black, normal quality, A4)	20 cpm
Scan to	E-mail, File, Image
Scan drivers	ICA, TWAIN, WIA
Grayscale levels	256
Input color depth	24 bit
Maximum scan area	A4 (210 x 297) mm
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	600 x 1200 DPI
Faxing	Mono faxing
Fax memory	400 pages
Modem speed	14.4 Kbit/s
Fax coding methods	MMR
Fax speed dialing (max numbers)	99
Printing colors	Black
Maximum duty cycle	- pages per month
Recommended duty cycle	250 - 1800 pages per month
Number of print cartridges	1
Page description languages	GDI
Total input capacity	150 sheets
Total output capacity	50 sheets
Auto document feeder (ADF) input capacity	10 sheets
Maximum print size	210 x 297 mm
Paper tray media types	Plain paper, Recycled paper
Paper tray media weight	65 - 105 g/m²
Non-ISO print media sizes	Folio
ISO A-series sizes (A0...A9)	A4
Auto Document Feeder (ADF) media weight	65 - 90 g/m²
Display	LCD
Product color	Black, White
Market positioning	Home & office
Display number of lines	2 lines
Display number of characters	16
Direct printing	-
Standard interfaces	USB 1.1, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Mobile printing technologies	Not supported
Sound power level (standby)	6.5 dB
Sound pressure level (printing)	51 dB
Power consumption (off)	0.28 W
Power consumption (standby)	40 W
Power consumption (PowerSave)	1.3 W
Power consumption (average operating)	380 W
Package depth	458 mm
Package width	505 mm
Package height	436 mm
Package weight	9900 g
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Depth	340 mm
Width	385 mm
Height	283 mm
