Brother MFC-J615W Advanced User's Guide

Dialing and storing numbers
27
5
Triplex Adapter 5
Installing machine, external two-line
TAD and two-line telephone
5
When you are installing an external two-line
telephone answering device (TAD) and a
two-line telephone, your machine must be
isolated on one line at both the wall jack and
at the TAD. The most common connection is
to put the machine on Line 2, which is
explained in the following steps. The back of
the two-line TAD must have two telephone
jacks: one labeled L1 or L1/L2, and the other
labeled L2. You will need at least three
telephone line cords, the one that came with
your machine and two for your external two-
line TAD. You will need a fourth line cord if
you add a two-line telephone.
a Put the two-line TAD and the two-line
telephone next to your machine.
b Plug one end of the telephone line cord
for your machine into the L2 jack of the
triplex adapter. Plug the other end into
the LINE jack on the back of the
machine.
c Plug one end of the first telephone line
cord for your TAD into the L1 jack of the
triplex adapter. Plug the other end into
the L1 or L1/L2 jack of the two-line TAD.
d Plug one end of the second telephone
line cord for your TAD into the L2 jack of
the two-line TAD. Plug the other end into
the EXT. jack on the left side of the
machine.

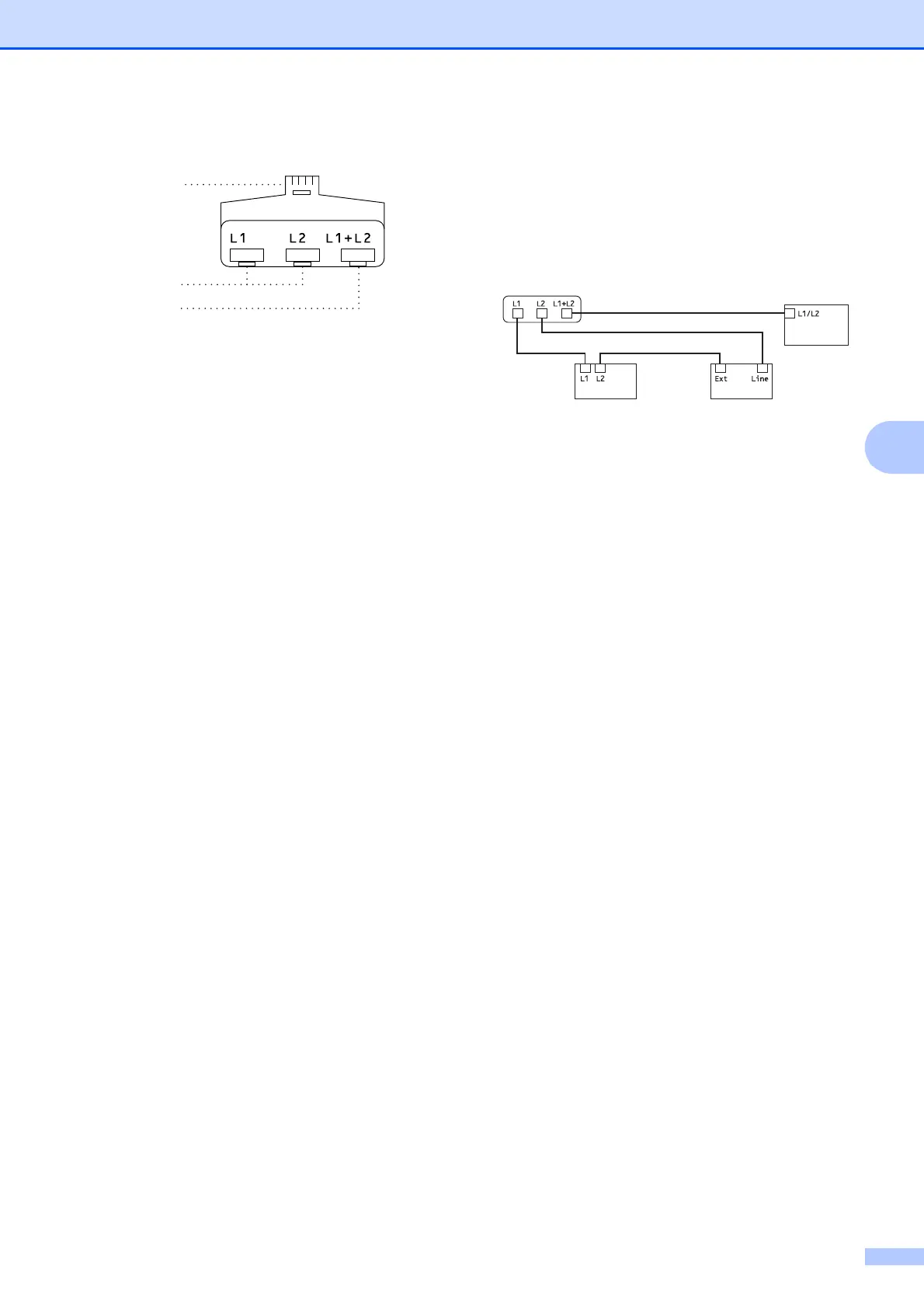

1 Triplex Adapter
2 Two Line Telephone
3 External Two Line TAD
4 Machine
You can keep two-line telephones on other
wall outlets as always. There are two ways to
add a two-line telephone to the machine's
wall outlet. You can plug the telephone line
cord from the two-line telephone into the
L1+L2 jack of the triplex adapter. Or you can
plug the two-line telephone into the TEL jack
of the two-line TAD.
RJ14
RJ11
RJ14
1
2
3
4

Brother MFC-J615W Specifications

General

Duplex printing	No
Print technology	Inkjet
Maximum resolution	6000 x 1200 DPI
Economical printing	Yes
Print speed (black, normal quality, A4/US Letter)	35 ppm
Print speed (color, normal quality, A4/US Letter)	28 ppm
Scan to	E-mail, File, Image, OCR, USB
Grayscale levels	256
Output color depth	24 bit
Image formats supported	BMP, JPG, PNG, TIF
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	1200 x 2400 DPI
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 1200 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4
Copy speed (black, normal quality, A4)	23 cpm
Copy speed (color, normal quality, A4)	20 cpm
Faxing	Color faxing
Fax memory	400 pages
Modem speed	33.6 Kbit/s
Fax resolution (black)	300 x 300 DPI
Fax speed dialing (max numbers)	100
Total input capacity	100 sheets
Total output capacity	50 sheets
Auto document feeder (ADF) input capacity	15 sheets
Display	LCD
Display diagonal	3.3 \
Market positioning	Home & office
Compatible memory cards	Memory Stick (MS), MS PRO, SD, SDHC
Sound pressure level (printing)	50 dB
Envelopes sizes	10, C5, DL
Maximum print size	215 x 355 mm
Paper tray media types	Glossy paper, Photo paper, Transparencies
Paper tray media weight	64 - 220 g/m²
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
Maximum ISO A-series paper size	A4
Dimensions (WxDxH)	390 x 180 x 375 mm
Networking features	Fast Ethernet
Wireless technology	802.11b/g
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	copy, fax, print, scan
Compatible operating systems	Windows 2000/XP/Vista/7 Mac OS X 10.4.11/10.5.X/10.6.X
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WPA-PSK, WPA2-PSK
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), NetBIOS / WINS, LPR / LPD, Custom Raw Port/Port9100, DNS Resolver, mDNS, FTP Server, TELNET, SNMPv1, TFTP, Scanner Port, LLTD, Web Services, LLMNR
Standard interfaces	Ethernet, USB 2.0, Wireless LAN
USB 2.0 ports quantity	1
Power consumption (standby)	6 W
Power consumption (average operating)	19.5 W
Sustainability certificates	ENERGY STAR
Maximum duty cycle	2500 pages per month
Recommended duty cycle	50 pages per month
Number of print cartridges	4
Operating temperature (T-T)	50 - 95 °F
Operating relative humidity (H-H)	20 - 80 %
