3-18

Confidential

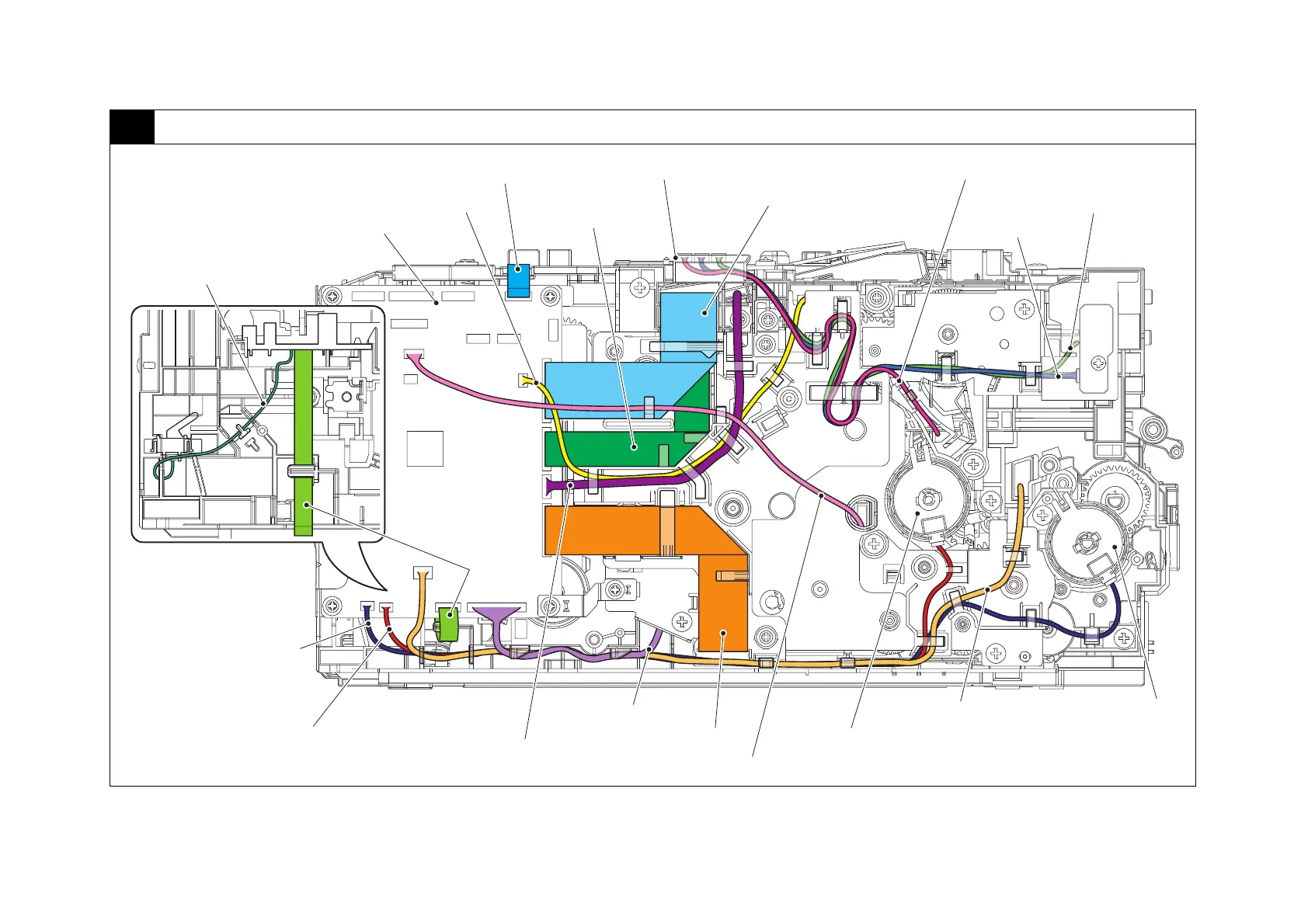

10 Frame L unit (Manual feed models)

Harness colors are subject to change for some reason.

Toner box solenoid

harness (WH) *

T1 clutch

Toner sensor harness (RD) *

HVPS flat cable

Laser unit flat cable

Front cover sensor harness (YW)

Back cover/duplex tray

sensor harness (RD, BL)

T1 clutch harness (BL)

Registration clutch harness (WH)

Polygon motor harness (WH)

LVPS harness (WH, BK)

Paper feed motor flat cable

Registration clutch

Paper feed sensor harness

(RD, BL, WH)

Toner box new

harness (BL) *

Toner box relay PCB ASSY *

Eject sensor

flat cable

Main PCB ASSY

Cartridge sensor harness (WH) *

For models with Toner box

For models without Toner box

Toner box relay flat cable *

Default Chapter4
