3-19

Confidential

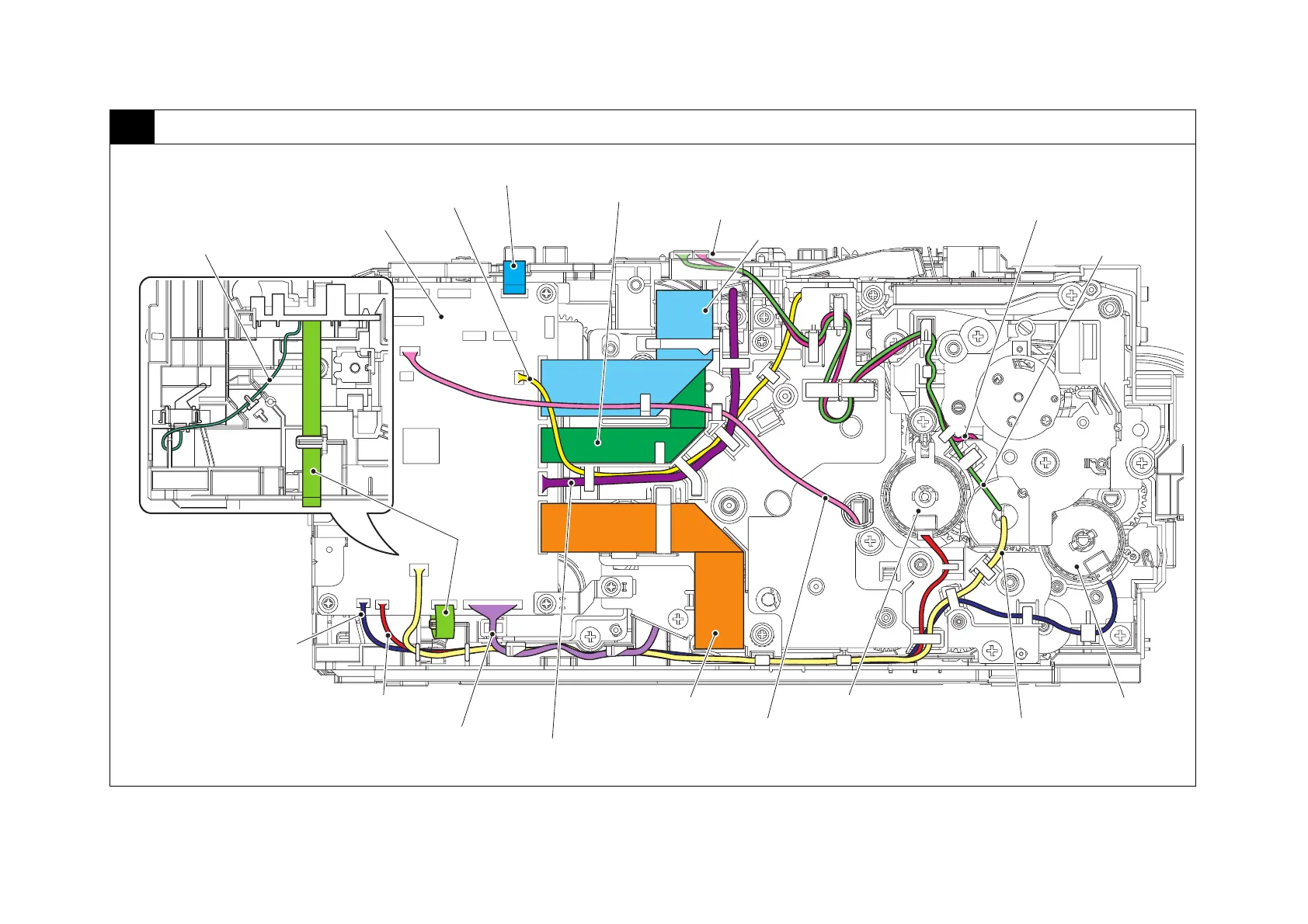

11 Frame L unit (MP models)

Harness colors are subject to change for some reason.

T1 clutch

HVPS flat cable

Laser unit flat cable

Front cover sensor harness (YW)

Back cover/duplex tray

sensor harness (RD, BL)

T1 clutch harness (BL)

Registration clutch harness (WH)

Polygon motor harness (WH)

LVPS harness (WH, BK)

Paper feed motor flat cable

Registration clutch

Paper feed sensor harness (WH)

MP relay PCB ASSY

Eject sensor

flat cable

Main PCB ASSY

Cartridge sensor harness (WH) *

* For models without Toner box

MP paper empty

sensor harness (RD)

MP sensor harness (BK)

MP relay flat cable
