Brother MFC-L2712DW User Manual

3-38
Confidential

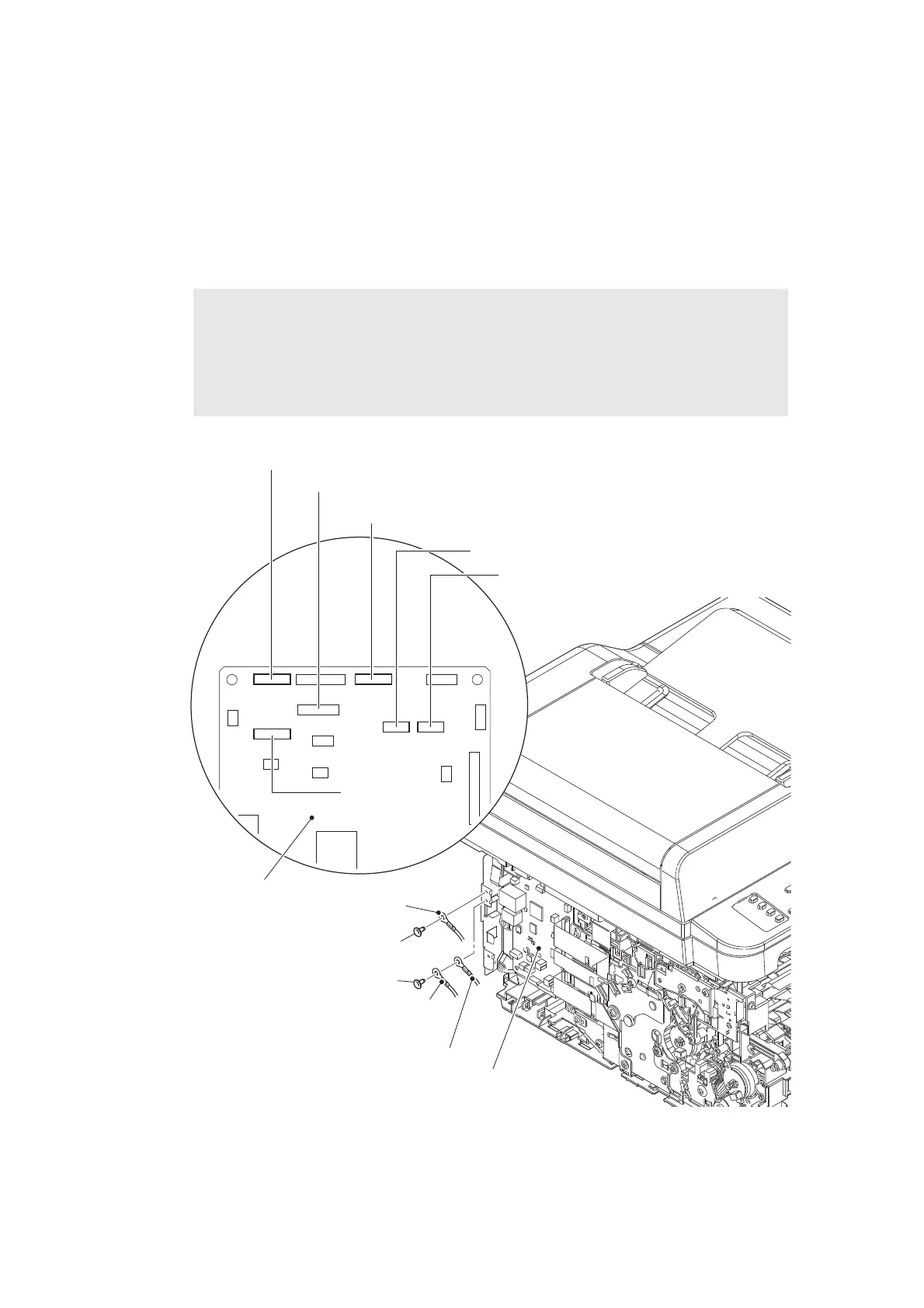

(4) Remove the Screw cup M3x8 (black) screw to remove the FB ground harness and the
Panel ground harness. Disconnect the Document scanner motor harness from the Main
PCB ASSY.
(5) Remove the Screw cup M3x8 (black) screw to remove the ADF ground harness.
Disconnect the ADF sensor harness and the ADF motor harness from the Main PCB
ASSY.
(6) Disconnect the First side CIS flat cable, the Panel flat cable, and the Second side CIS flat
cable from the Main PCB ASSY.
Fig. 3-26
Harness routing: Refer to “2. ADF unit”, “3. Document scanner unit”.
Note:
• After disconnecting flat cables, check that each cable is not damaged at its end or
short-circuited.
• When connecting flat cables, do not insert them at an angle. After insertion, check
that the cables are not at an angle.
ADF ground harness
Screw cup M3x8 (black)
FB ground harness
Main PCB ASSY
Screw cup M3x8 (black)
Main PCB ASSY
First side CIS flat cable
ADF sensor harness
Panel flat cable
ADF motor harness
Document scanner motor harness
Second side CIS
flat cable
Panel ground harness

Brother MFC-L2712DW Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Duplex print speed (black, normal quality, A4/US Letter)	15 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
N-in-1 copy function (N=)	2, 4
Copy speed (black, normal quality, A4)	30 cpm
Scan to	E-mail, File, Image, OCR
Grayscale levels	256
Output color depth	24 bit
Scan speed (black)	23.6 ppm
Scan speed (color)	7.5 ppm
Output grayscale depth	8 bit
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Fax speed dialing (max numbers)	200
Digital sender	-
Printing colors	Black
Maximum duty cycle	15000 pages per month
Page description languages	GDI
Display	LCD
Market positioning	Home & office
Display number of lines	2 lines
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	120 sheets
Total number of input trays	1
Auto document feeder (ADF) input capacity	50 sheets
Maximum print size	215 x 355 mm
Paper tray media types	Bond paper, Envelopes, Plain paper, Recycled paper
Paper tray media weight	60 - 163 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
Multi-purpose tray media types	Executive, Letter
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 230 g/m²
Auto Document Feeder (ADF) media weight	64 - 105 g/m²
Sound power level (standby)	30 dB
Sound pressure level (printing)	48 dB
Sound pressure level (quiet mode)	44 dB
USB connector	USB Type-A
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	64-bit WEP, 128-bit WEP, SMTP-AUTH, SNMPv3, SSL/TLS, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, SMTP Client, IPP/IPPS, FTP Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print), SNTP Client
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, SMTP Client, FTP Server, SNMPv1/v2c/v3, HTTP/ HTTPS server, TFTP client and server, ICMPv6, SNTP Client, Web Services (Print)
Power consumption (off)	0.03 W
Power consumption (ready)	42 W
Power consumption (sleep)	6.2 W
Power consumption (printing)	440 W
Power consumption (PowerSave)	260 W
Power consumption (average operating)	- W
Energy Star Typical Electricity Consumption (TEC)	1.232 kWh/week
Sustainability certificates	Blue Angel, ENERGY STAR
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Windows operating systems supported	Windows 7, Windows 8
Package depth	517 mm
Package width	580 mm
Package height	434 mm
Package weight	14900 g
Included cartridge capacity (black)	1 pages

Weight and Dimensions

Depth	398.5 mm
Width	410 mm
Height	318.5 mm
