Brother MFC-L6700DW Service Manual

3-137
Confidential
10.11 LT paper empty sensor PCB ASSY
(1) Release the hook on the bushing, and pull out the LT separation roller shaft to remove
the LT paper empty actuator.
(2) Release the hook, and remove the LT paper empty actuator cover.
(3) Release the LT paper empty sensor harness from the securing fixtures.
(4) Remove the taptite bind B M3x10 screw, and remove the LT paper empty sensor PCB
ASSY.

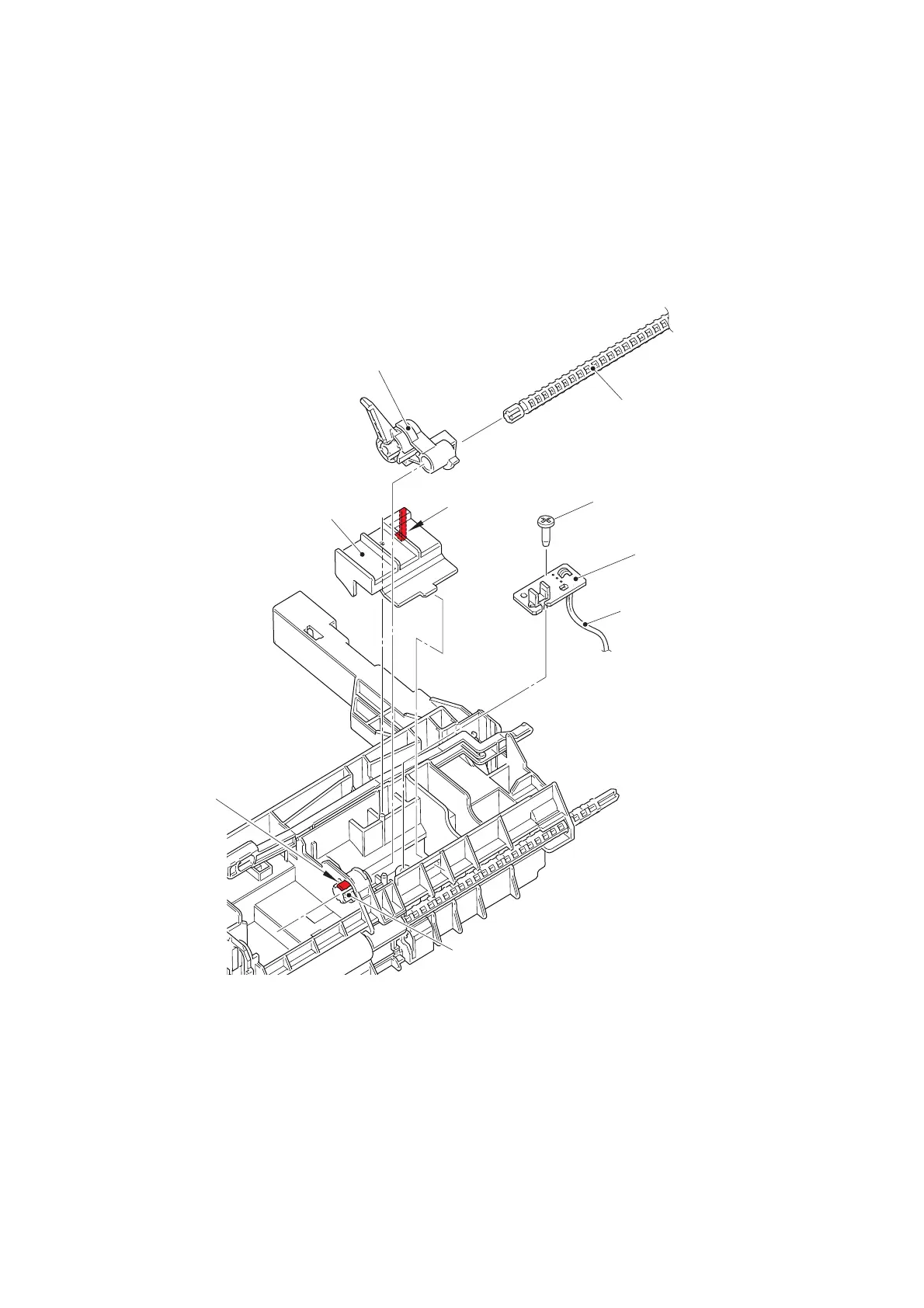

Fig. 3-140
LT paper empty actuator
LT paper empty actuator cover
LT paper empty sensor
PCB ASSY
LT separate roller shaft
LT paper empty sensor
harness
Hook
Hook
Taptite bind B M3x10
Bushing

Brother MFC-L6700DW Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7.5 s
Print speed (black, normal quality, A4/US Letter)	48 ppm
Digital sender	-
Maximum duty cycle	100000 pages per month
Recommended duty cycle	0 - 5000 pages per month
Page description languages	BR-Script 3, Epson FX, IBM ProPrinter, PCL 6, PDF 1.7
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
N-in-1 copy function (N=)	2, 4
Copy speed (black, normal quality, A4)	48 cpm
Scan to	E-mail, FTP, File, Image, OCR, USB
Scan drivers	ICA, ISIS, SANE, TWAIN, WIA
Scanner type	Flatbed & ADF scanner
Scan speed (black)	28 ppm
Scan speed (color)	20 ppm
Image formats supported	BMP, JPG, PNG, TIF
Maximum scan resolution	19200 x 19200 DPI
Duplex scan speed (black)	56 ppm
Duplex scan speed (color)	34 ppm
Document formats supported	DOCX, PDF, PPTX, XML, XPS
Email protocols	APOP, IMAP4, POP3
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, APOP, EAP-FAST, SMTP-AUTH, SSL/TLS, WPA-PSK, WPA2-PSK
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Online services supported	Dropbox, Evernote, Google Drive, OneDrive
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, POP3, SMTP Client, IPP/IPPS, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print/Scan), SNTP Client, LDAP, IMAP4
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, POP3, SMTP Client, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c, HTTP/HTTPS server, TFTP client and server, ICMPv6, SNTP Client, LDAP, Web Services (Print/Scan), IMAP4
Faxing	Mono faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Fax transmission speed	2.5 sec/page
Total input capacity	520 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Auto document feeder (ADF) input capacity	70 sheets
Envelopes sizes	6 3/4, 7 3/4, 9, 10
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper
ISO A-series sizes (A0...A9)	A4, A5, A6
Duplex media weight (imperial)	17 - 24 lbs
Multi-purpose tray media types	Bond paper
Maximum ISO A-series paper size	A4
Paper tray media weight (imperial)	16 - 32 lbs
Multi-Purpose Tray media weight (imperial)	16 - 53 lbs
Display	LCD
Control type	Touch
Product color	Black
Display diagonal	4.85 \
Market positioning	Business
Internal memory	512 MB
Sound power level (standby)	35 dB
Sound pressure level (printing)	55 dB
Sustainability certificates	ENERGY STAR
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (ready)	36 W
Power consumption (sleep)	1.8 W
Power consumption (average operating)	680 W
Operating relative humidity (H-H)	20 - 80 %
Package depth	525.78 mm
Package width	599.44 mm
Package height	657.86 mm
Package weight	22089.95 g

Weight and Dimensions

Width	495.3 mm
