3-31

Confidential

9.4 Fuser cover

(1) Push the two knobs on the fuser cover, and pull the fuser cover down in the direction of

the arrow.

(2) Remove the fuser cover from the bosses on the fuser unit, and remove the fuser cover.

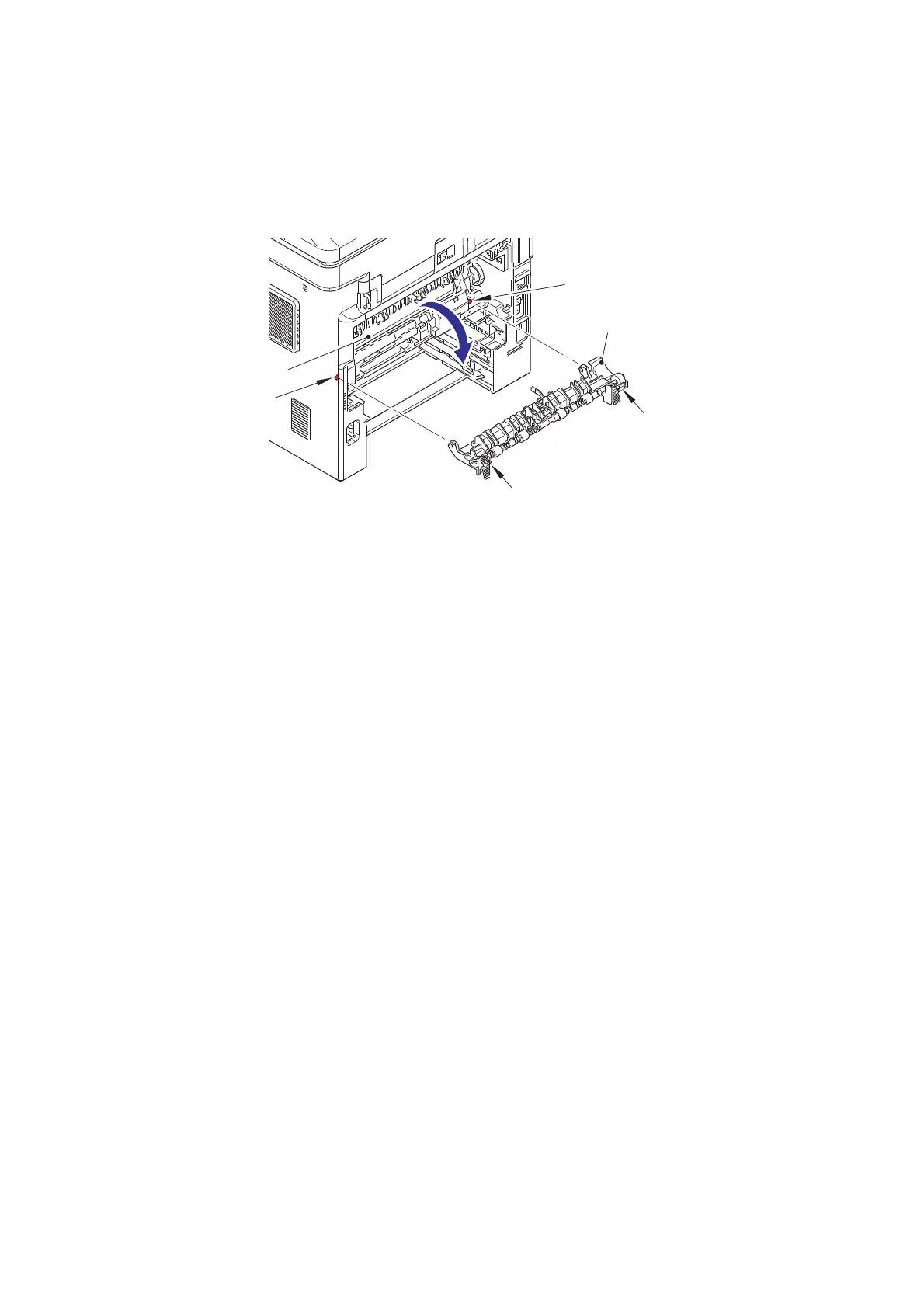

Fig. 3-17

Fuser cover

Knob

Fuser unit

Boss

Knob

Boss
