3-76

Confidential

9.17 Stack sensor PCB ASSY

(Models with USB host on the rear side only)

(1) Release the hook, and remove the stack sensor PCB ASSY from the joint cover ASSY.

Release the stack sensor harness from the securing fixtures.

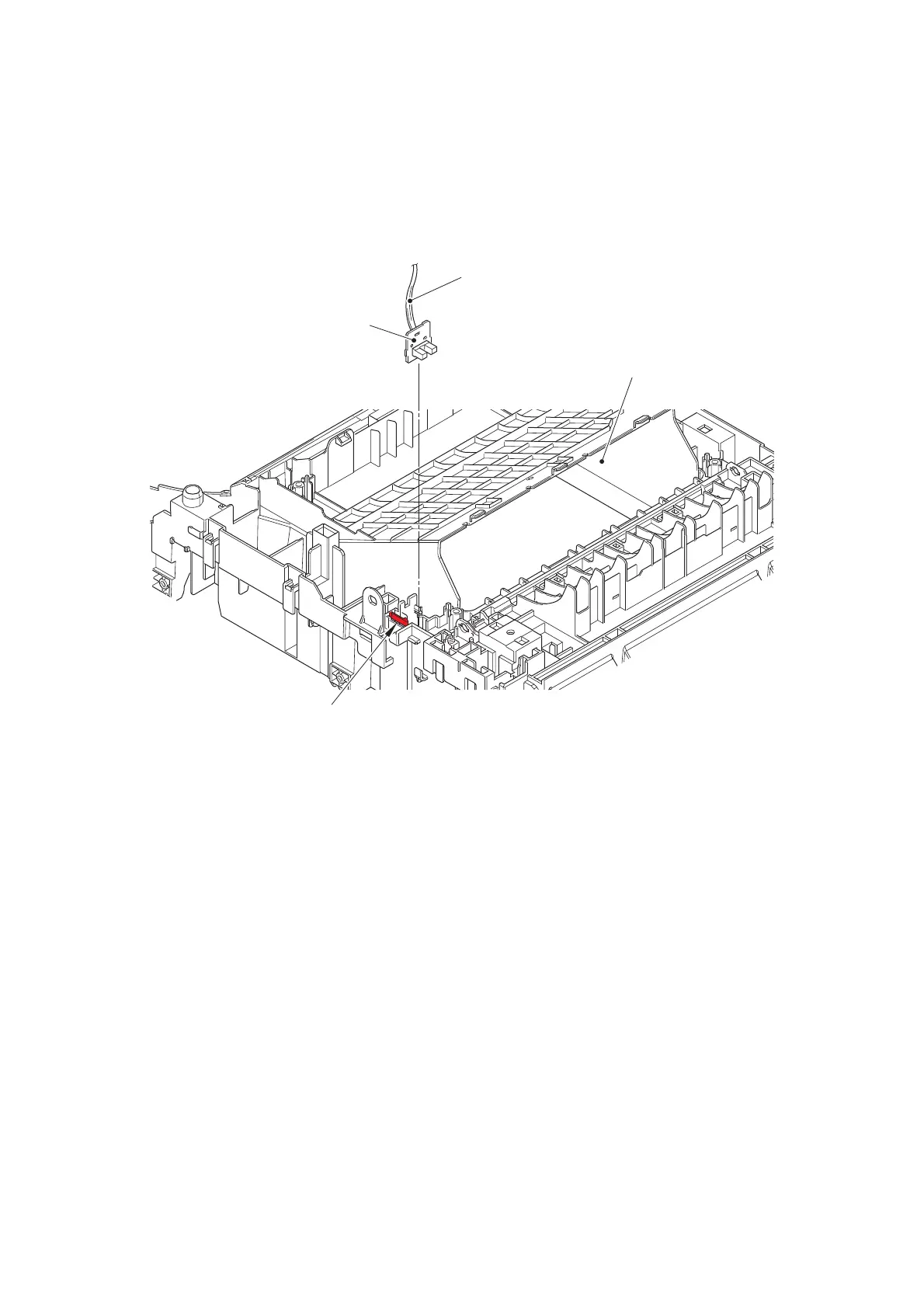

Fig. 3-74

Harness routing: Refer to “9. Speaker unit, Modem (LVPS side)”.

Stack sensor PCB ASSY

Joint cover ASSY

Stack sensor harness

Hook
